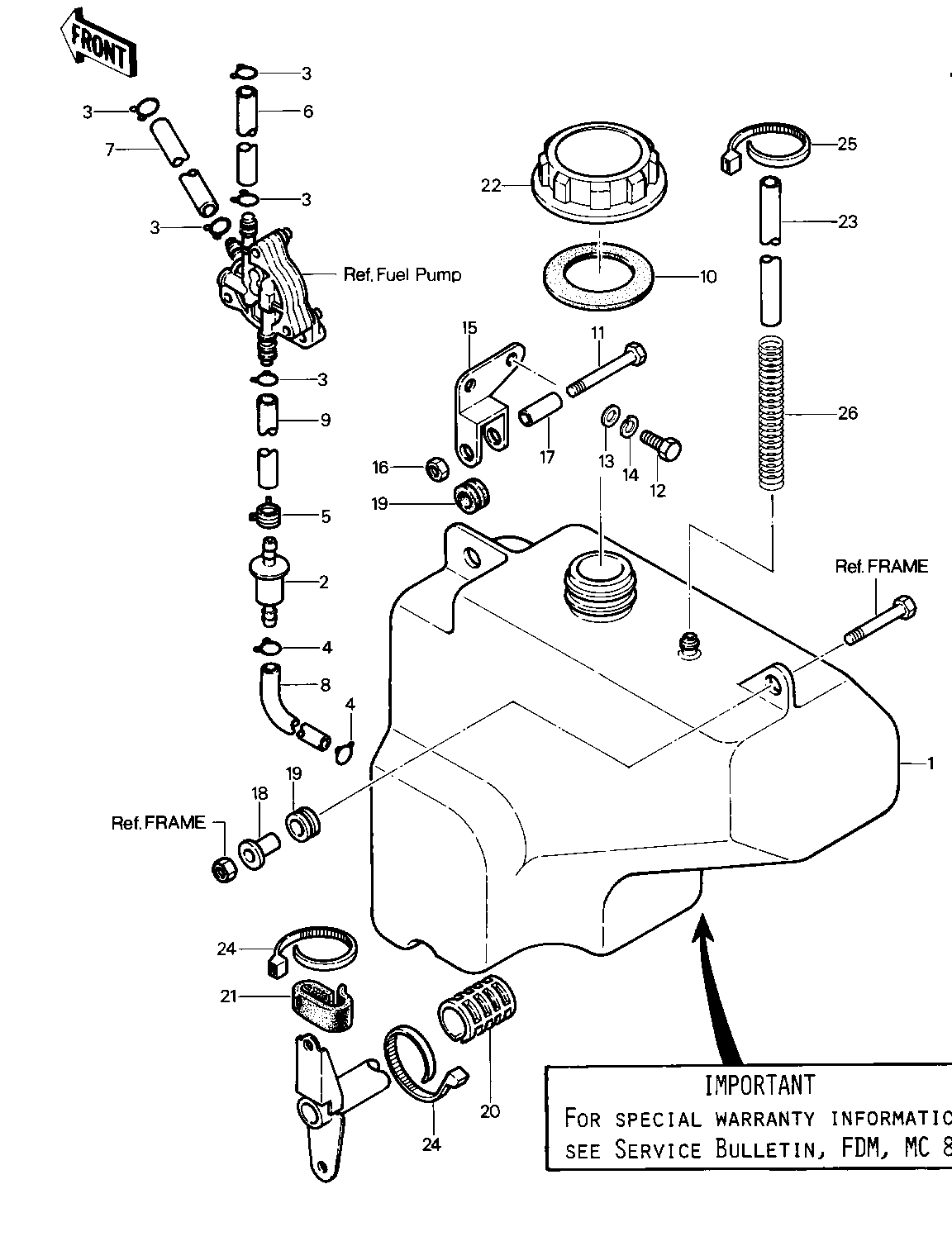

1981 KLT200 - FUEL TANK ('81-'82 KLT200-A1/A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,GRAY | 1 | 51001-4003-8L | 1 | - F/NO. 510531 | |
| FILTER-FUEL | 2 | 49019-3502 | 1 | ||
| CLAMP,CARB CONECT HOS | 3 | 92037-056 | 5 | ||
| CLAMP-FUEL TUBE | 4 | 92037-3501 | 2 | ||
| CLAMP | 5 | 92037-4009 | 1 | ||
| TUBE,6.5X11.5X350 | 6 | 92059-4004 | 1 | ||
| TUBE,6.5X11.5X290 | 7 | 92059-4028 | 1 | ||
| TUBE,FUEL | 8 | 92059-4011 | 1 | ||
| TUBE,6.5X11.5X85 | 9 | 92059-4014 | 1 | ||
| GASKET,FUEL TANK CAP | 10 | 11009-3020 | 1 | ||
| BOLT-SMALL-UPSET,8X30 | 11 | 115G0830 | 1 | ||
| BOLT-UPSET,6X12 | 12 | 112G0612 | 2 | ||
| WASHER PLAIN 6MM | 13 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 2 | ||
| BRKT,TANK | 15 | 32052-4005 | 1 | ||
| NUT,LOCK,8MM | 16 | 92015-1124 | 1 | ||
| SPACER FUEL TANK MONT | 17 | 92027-012 | 1 | ||
| COLLAR,FUEL TANK FITT | 18 | 92027-1134 | 1 | ||
| DAMPER RUBB TANK FRNT | 19 | 92075-013 | 2 | ||
| DAMPER RUBBER | 20 | 92075-084 | 2 | ||
| DAMPER | 21 | 92075-4024 | 1 | ||
| CAP,FUEL TANK | 22 | 51049-3001 | 1 | ||
| TUBE | 23 | 92059-4009 | 1 | ||
| BAND | 24 | 92072-3505 | 3 | ||
| BAND | 25 | 92072-4004 | 3 | ||
| SPRING | 26 | 92081-4011 | 1 |
