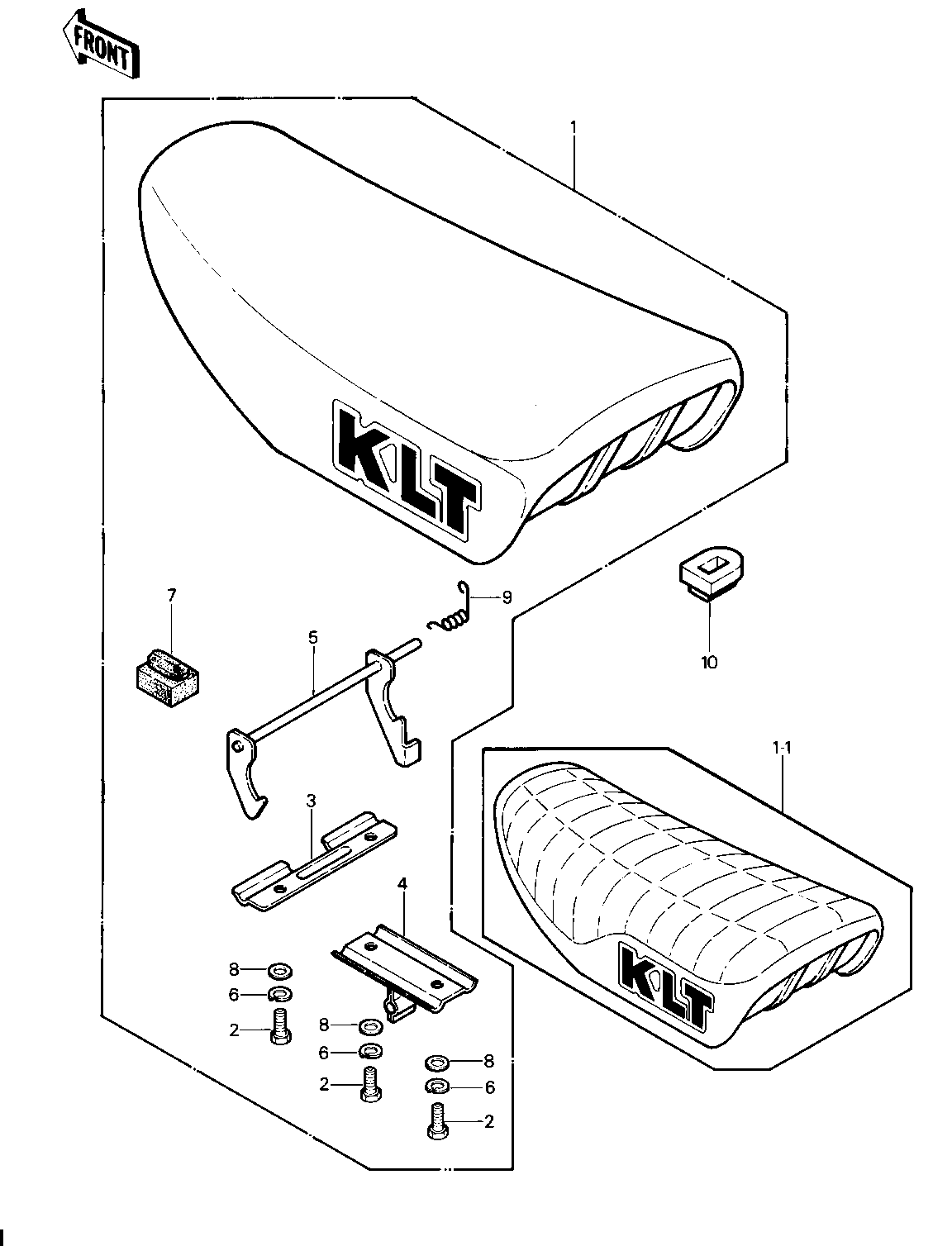

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,WHITE LOGO 1 53001-4008 1
BOLT-UPSET,6X12 2 112G0612 6
BRACKET,SEAT 3 11034-4048 1
GUIDE-SEAT 4 13070-4002 2
LEVER 5 13236-4001 1
WASHER SPRING 6MM 6 461F0600 6
DAMPER RUBBER 7 92075-099 2
WASHER PLAIN 6MM 8 410B0600 6
SPRING 9 92081-4017 2
DAMPER RUBBER FUEL TA 10 92075-295 2
