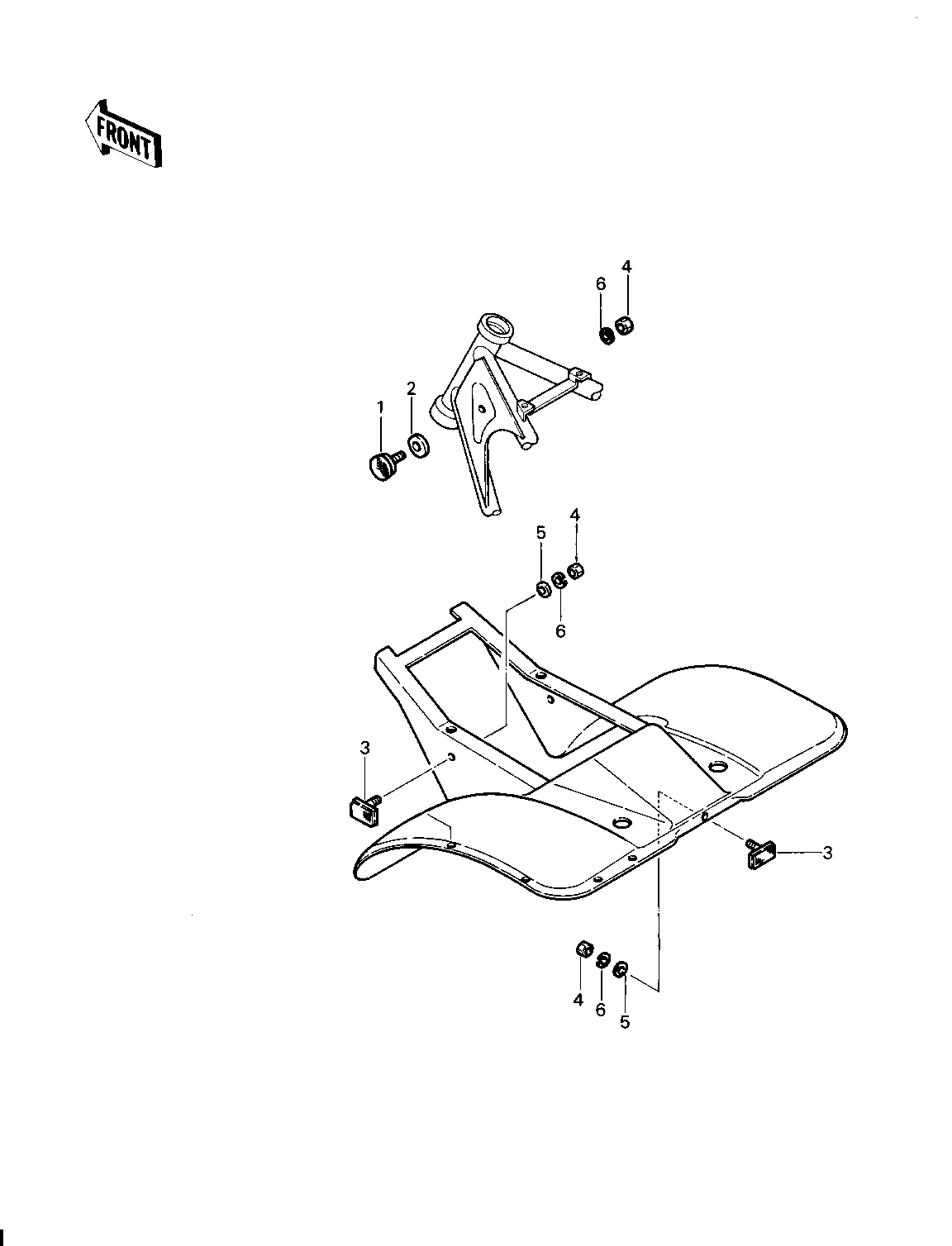

1982 KLT200 - REFLECTORS (CANADA) ('81-'82 KLT200-A1/A

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REFLECTOR,REFLEX 1 28012-016 2
DAMPER RUBBER,REFLECT 2 92094-011 2
REFLECTOR-REFLEX,RR 3 28012-1054 3
NUT,5MM 4 311B0500 5
WASHER PLAIN 5MM 5 411B0500 3
WASHER SPRING 5MM 6 461F0500 5
