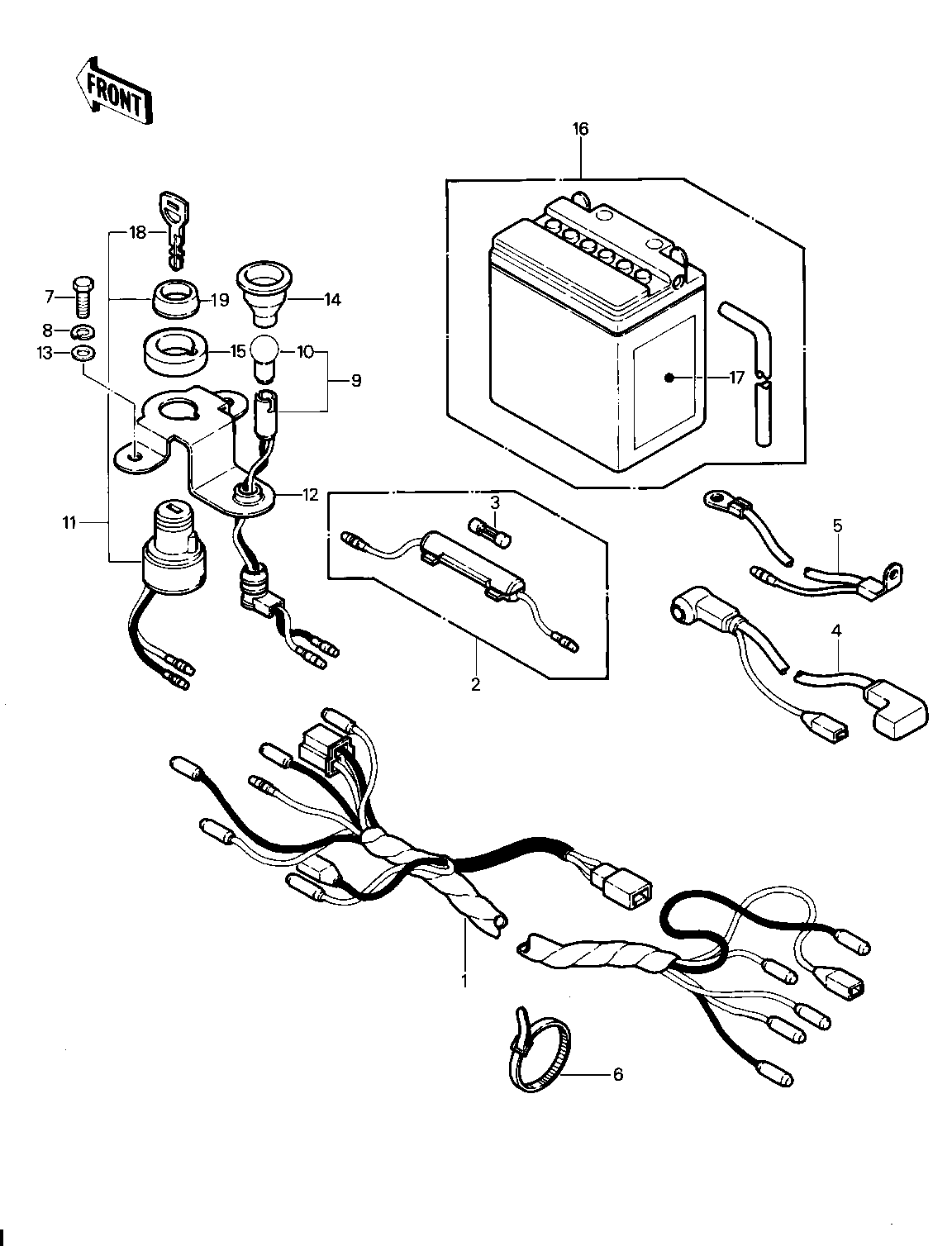

1981 KLT200 - CHASSIS ELECTRICAL EQUIPMENT ('81-'82 KL

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HARNESS,MAIN 1 26001-4007 1
FUSE ASSY 2 26004-013 1
FUSE-20A 3 26006-005 1
WIRE,MAGNETIC SWITCH 4 26010-051 1
WIRE,BATTERY GROUND 5 26010-052 1
BAND 6 92072-3505 4
BOLT-UPSET 6X14 7 112B0614 2
WASHER SPRING 6MM 8 461F0600 2
LAMP-ASSY,IGNITION 9 23016-1025 1
BULB 12V 3W 10 92069-018 1
SWITCH-ASSY-IGNITION 11 27005-1117 1
BRKT,SWITCH 12 32059-4001 1
WASHER,6.5X16X2 13 92022-1565 2
TUBE 14 92059-1559 1
DAMPER IGNITION SWITH 15 92075-4016 1
YUA BAT 12N10-3B 16 26012-050 1
LABEL-WARNING,BATTERY 17 56040-1036 1
KEY-LOCK,BLANK 18 27008-1103 OP
NUT,IGNITION SW LOCK 19 27007-004 1
