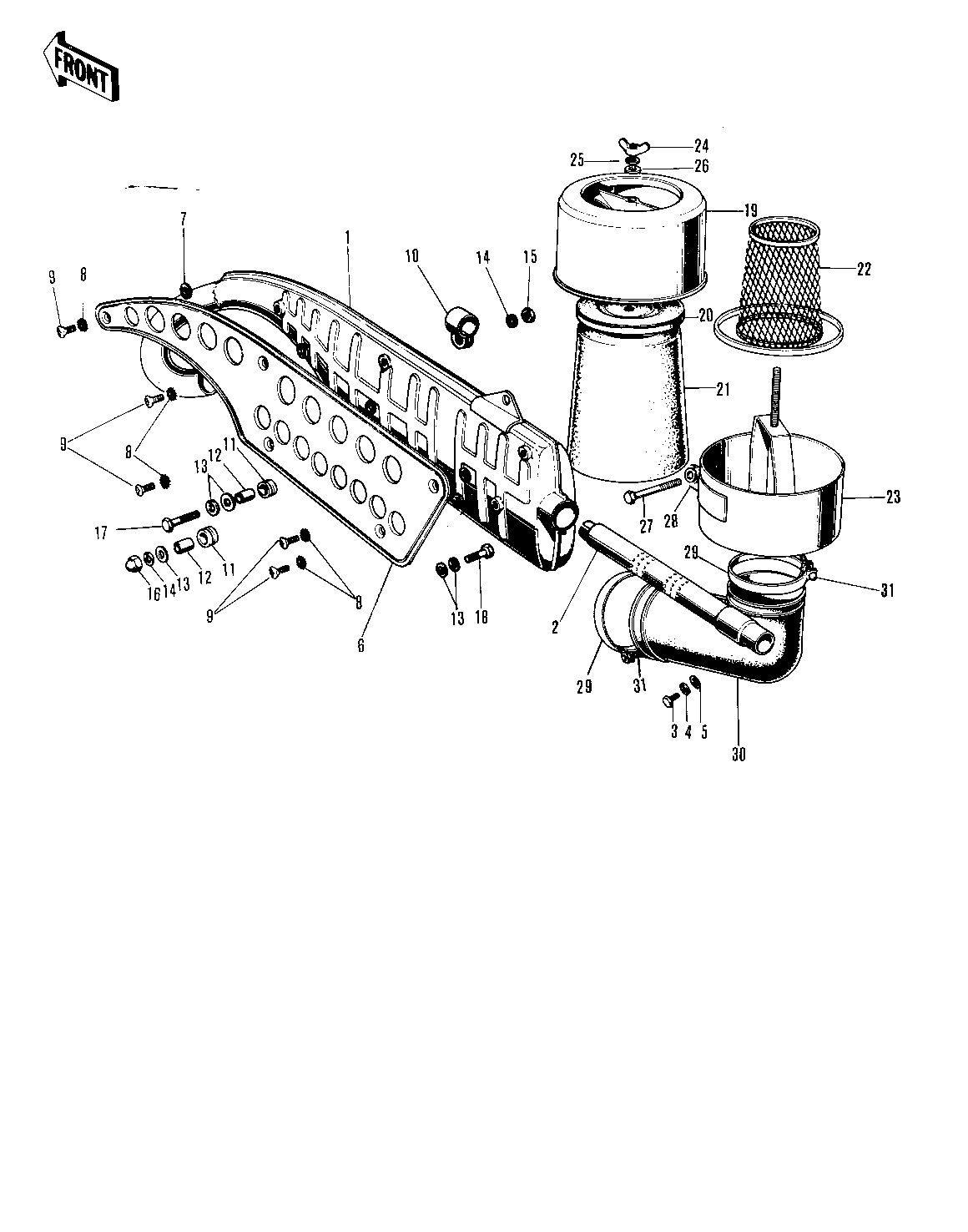

1971 Bison - AIR CLEANER/MUFFLER ('71-'72 F8/F8-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MUFFLER ASSY,F.BLACK 1~5 18001-107-21 1
BAFFLE TUBE 2 18033-040 1
BOLT,6X10 3 112G0610 1
WASHER SPRING 6MM 4 461F0600 1
WASHER PLAIN 6MM 5 411B0600 1
COVER-MUFFLER,BLACK 6 18064-003-21 1
INSULATOR HEAT 7 18065-002 5
WASHER LOCK 6MM 8 463H0600 5
SCREW PAN HEAD 6X10 9 220E0610 5
BRACKET,UPPER MUFFLER 10 32069-039 1
DAMPER RUBBER-MUFFLER 11 18063-005 2
COLLAR 12 92027-102 2
WASHER,8X26X2.3 13 92022-1564 5
WASHER SPRING 8MM 14 461F0800 2
NUT 8MM 15 312B0800 1
NUT FUEL TANK FRONT 16 92020-007 1
BOLT,FLANGED,8X35 17 92001-1577 1
BOLT HEX HEAD 8X28 18 114G0828 1
AIR CLEANER ASSY 19~26 11010-042 1
CAP-AIR CLEANER 19 11012-016 1
ELEMENT,AIR CLNR,TOP 20 11013-024 1
ELEMENT,AIR CLNR,MAIN 21 11013-023 1
WIRE NET-AIR CLEANER 22 11014-003 1
BODY-AIR CLEANER 23 11011-011 1
NUT-WING,6MM 24 92015-030 1
WASHER SPRING 6MM 25 461F0600 1
WASHER PLAIN 6MM 26 411B0600 1
BOLT,EXCLUSIVE 27 92001-1456 1
WASHER SPRING 6MM 28 461F0600 1
CLAMP,AIR CLEANER 29 92037-129 2
CONNECTOR 30 11026-002 1
SCREW PAN HEAD 6X30 31 220B0630 2
