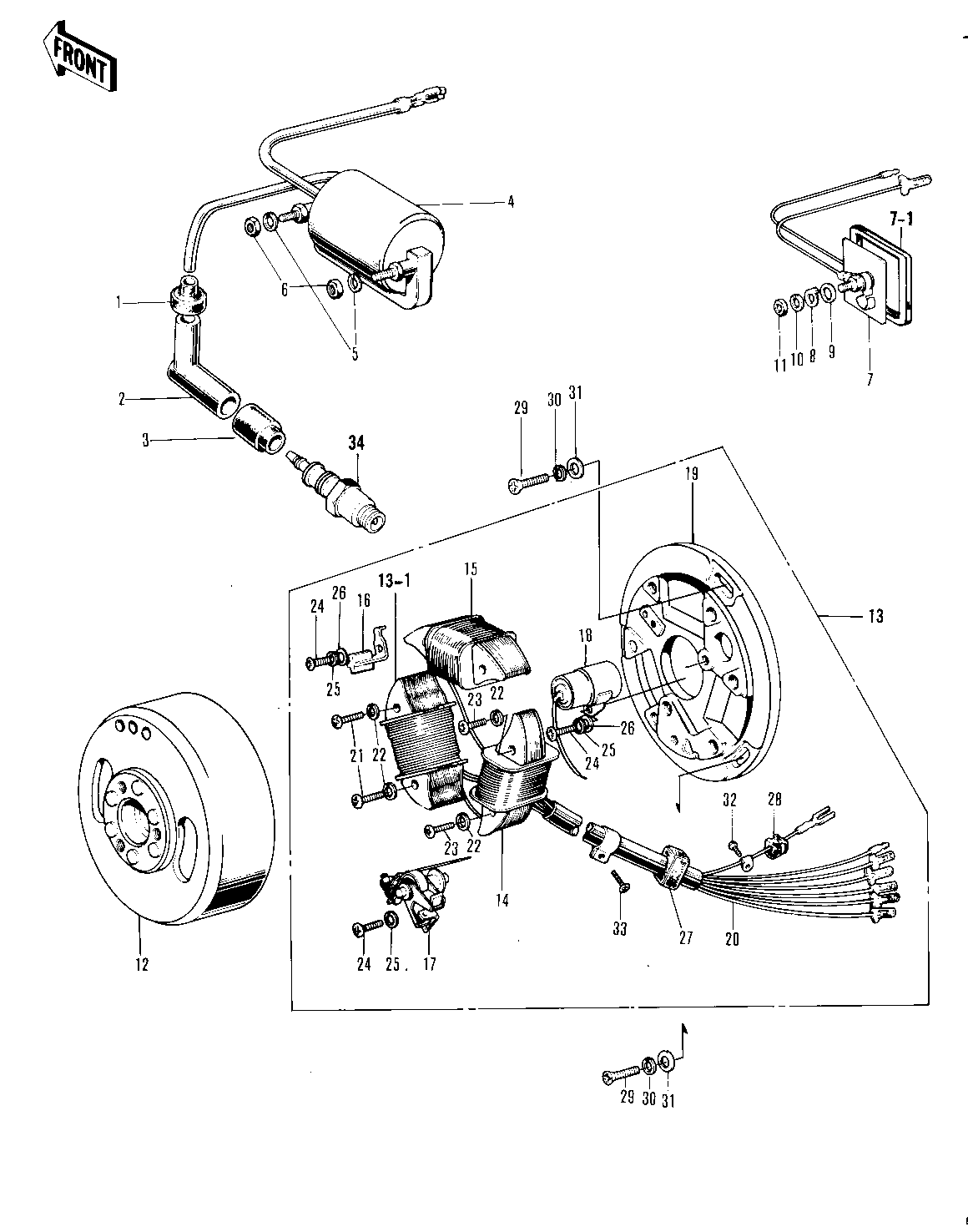

1971 Bison - IGNITION/GENERATOR/RECTIFIER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GROMMET,SPARK PLG CAP | 1 | 21132-005 | 1 | ||
GROMMET,SPARK PLG CAP | 1 | 21132-005 | 1 | ||
CAP-SPARK PLUG | 2 | 21130-016 | 1 | ||
GROMMET-PLUG CAP,A | 3 | 21131-004 | 1 | ||
COIL-IGNITION | 4 | 21121-042 | 1 | ||
WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
NUT 6MM | 6 | 311B0600 | 2 | ||
RECTIFIER | 7 | 21061-5001 | 1 | ||
MAT-RECTIFIER | 7-1 | 32103-020 | 1 | ||
WASHER-PLAIN | 8 | 92022-163 | 1 | ||
WASHER PLAIN 5MM | 9 | 410B0500 | 1 | ||
WASHER SPRING 5MM | 10 | 461F0500 | 1 | ||
NUT,5MM | 11 | 311B0500 | 1 | ||
FLYWHEEL | 12 | 21050-011 | 1 | ||
STATOR ASSY | 13 | 21003-012 | 1 | ||
.COIL-LIGHTING,A | 13-1 | 21047-013 | 1 | ||
.COIL-LIGHTING,B | 14 | 21047-014 | 1 | ||
.COIL-PRIMARY | 15 | 21049-012 | 1 | ||
.FELT OIL | 16 | 21019-005 | 1 | ||
FELT OIL | 16 | 21019-005 | 1 | ||
.BREAKER ASSY CONTACT | 17 | 21008-006 | 1 | ||
BREAKER ASSY CONTACT | 17 | 21008-006 | 1 | ||
.CONDENSER | 18 | 21013-030 | 1 | ||
CONDENSER | 18 | 21013-030 | 1 | ||
.BASE-MAGNETO | 19 | 21048-009 | 1 | ||
.WIRING HARNESS | 20 | 21029-017 | 1 | ||
.SCREW PAN HEAD 5X30 | 21 | 220B0530 | 4 | ||
.WASHER SPRING 5MM | 22 | 461F0500 | 6 | ||
.SCREW-PAN-CROS,5X25 | 23 | 220B0525 | 2 | ||
.SCREW PAN HEAD 4X10 | 24 | 220B0410 | 3 | ||
.WASHER SPRING 4MM | 25 | 461F0400 | 3 | ||
.WASHER PLAIN 4MM | 26 | 410B0400 | 2 | ||
.GROMMET ENG RUBBER A | 27 | 92071-014 | 1 | ||
.GROMMET WIRING HARN C | 28 | 21017-005 | 1 | ||
SCREW PAN HEAD 5X20 | 29 | 220B0520 | 3 | ||
WASHER SPRING 5MM | 30 | 461F0500 | 3 | ||
WASHER PLAIN 5MM | 31 | 410B0500 | 3 | ||
SCREW PAN HEAD 3X5 | 32 | 220B0305A | 1 | ||
SCREW PAN HEAD 3X8 | 33 | 220B0308 | 1 | ||
SPARK PLUGS B8HC | 34 | 92070-010 | 1 | ||
SPARK PLUG B8HS | 34 | B8HS | 1 | ||
SPARK PLUG B8HS | 34 | B8HS | AL |
