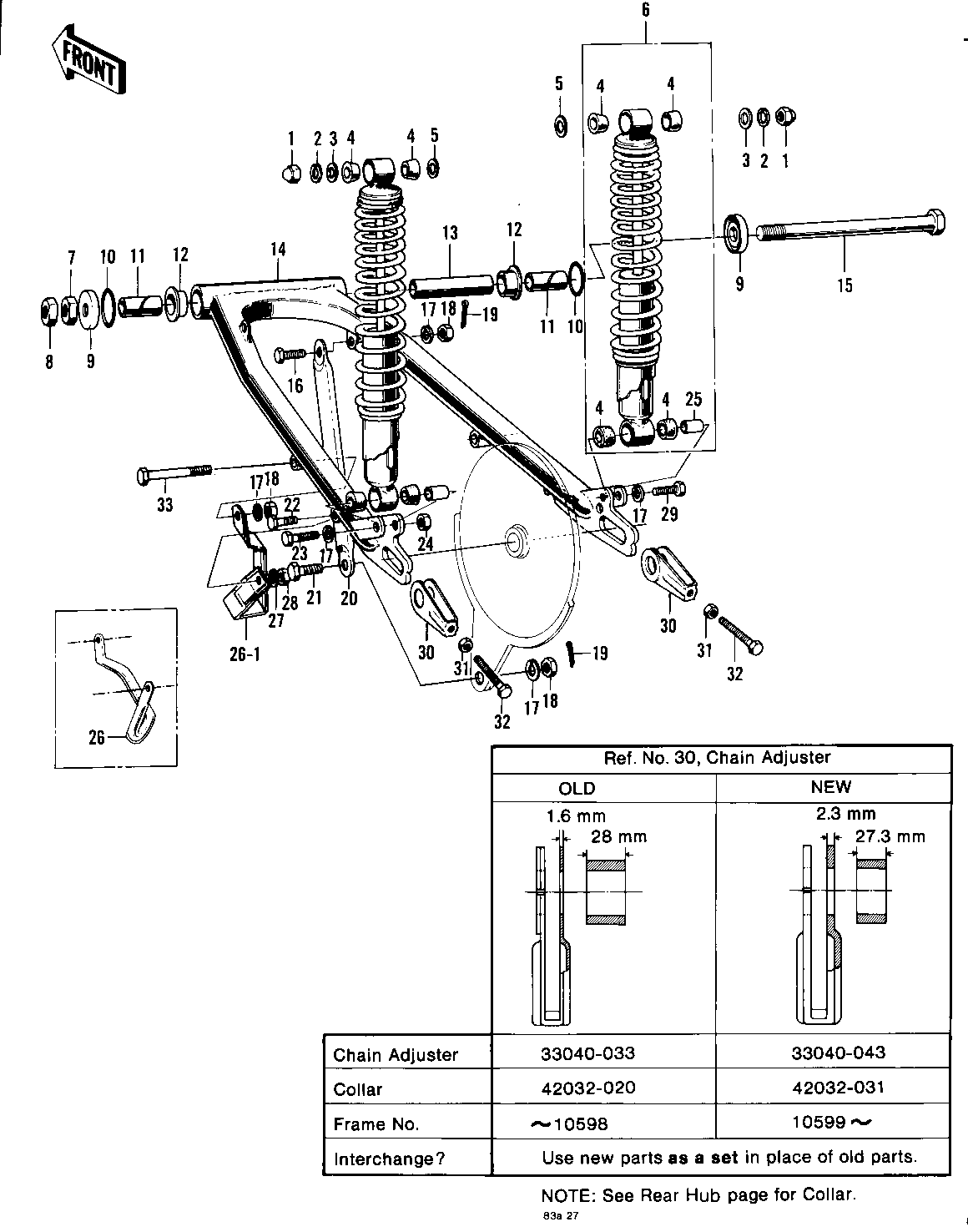

1971 Bison - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT SHOCK ABSORBER 1 92020-003 2
WASHER SPRING 10MM 2 461F1000 2
WASHER-PL-10.5X26X2.3 3 92022-044 2 I.D.=10.5 MM
BUSH SHOCK ABSORBER 4 45017-003 8
BUSH-SHOCK ABSORBER 4 45017-005 8
WASHER PLAIN 12MM 5 410B1200 2
SHOCK ABSBR RR 6 45014-069 2 ~ E/NO. 11286
SHOCK ABSBR RR 6 45014-069 2 E/NO. 11287 ~
NUT,14MM 7 314B1400 1
NUT,14MM 7 314B1400 1
NUT 14MM 8 315B1400 1
CAP-SWING ARM 9 33035-004 2
"0" RING,30MM 10 671B2530 2
SLEEVE-SWING ARM,SHRT 11 33034-013 2 L=43 MM
BUSHING-SWING ARM 12 33033-009 2
BUSHING-SWING ARM 12 33033-009 2
SLEEVE-SWING ARM,LONG 13 33034-012 1 L=117.5 MM
ARM-SWING 14 33001-028 1
SHAFT-SWING ARM PIVOT 15 33032-025 1
BOLT TORQUE LINK FIT 16 92003-017 1
WASHER SPRING 10MM 17 461F1000 5
NUT,10MM 18 314B1000 3
NUT,10MM 18 314B1000 3
PIN COTTER 2.0X15 19 550D2015 2
TORQUE LINK REAR BRK 20 43007-018 1
BOLT HEX HEAD 10X25 21 92003-003 1
BOLT-SMALL-UPSET 22 115B0832 1
BOLT HEX HEAD 10X45 23 113N1045 1
NUT 10MM 24 315B1000 1
BUSH SHCK ABS PVT SFT 25 45016-003 2
GUARD-CHAIN 26 55020-004 1 ~ E/NO. 11286
GUARD-CHAIN 26-1 55020-009 1 E/NO. 11287 ~
WASHER SPRING 8MM 27 461F0800 1
NUT,8MM 28 311B0800 1
BOLT HEX HEAD 10X35 29 113N1035 1
ADJUSTER CHAIN R.H 30 33040-033 2 USE W/42032-020
ADJUSTER-CHAIN 30 33040-043 2 USE W/42032-031
NUT 8MM 31 312B0800 2
BOLT,8X50 32 92001-1399 2
BOLT,8X50 32 92001-1399 2
BOLT,HEX HEAD,10X50 33 92001-1254 1
BOLT,HEX HEAD,10X50 33 92001-1254 1
