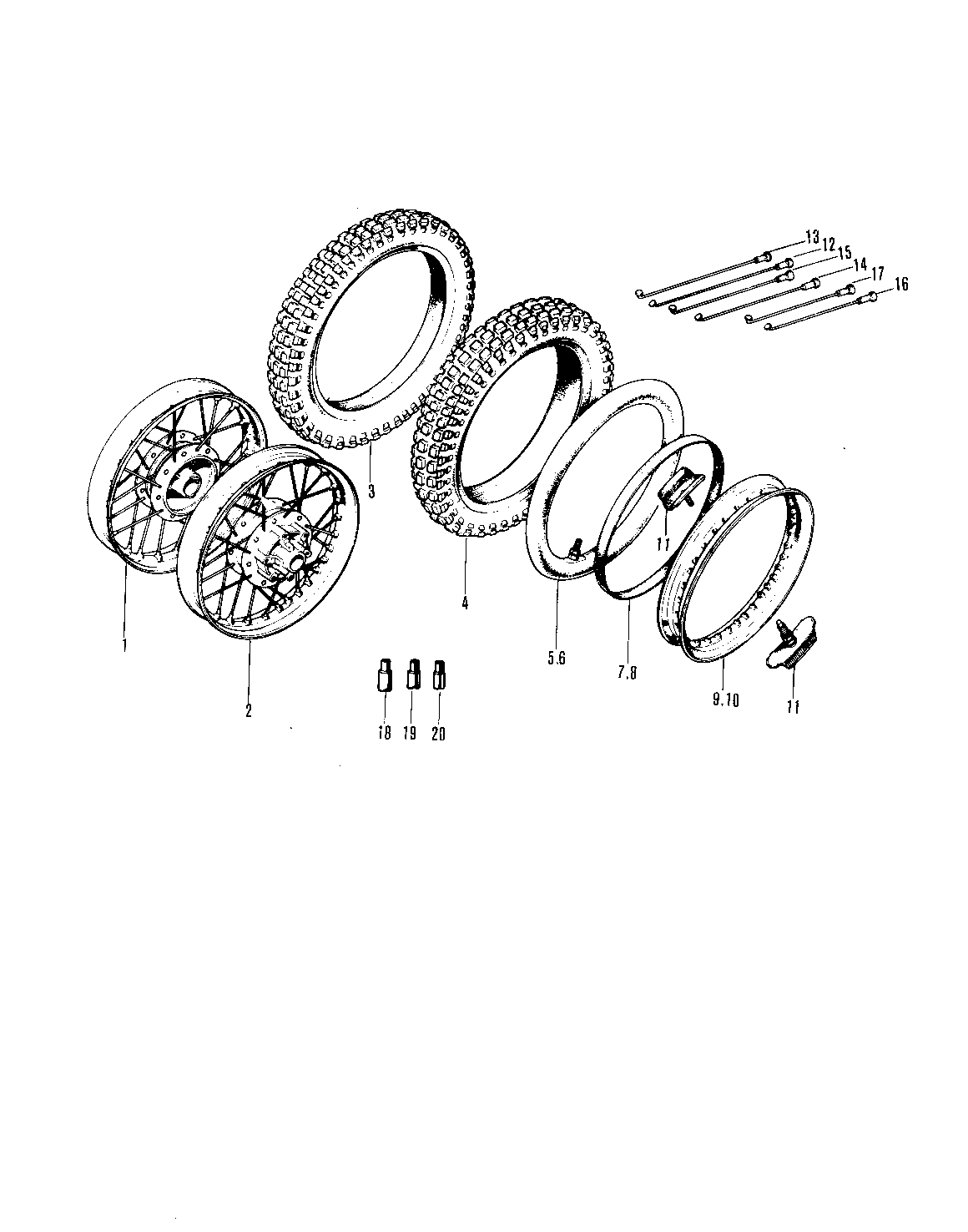

1971 Bison - WHEELS/TIRES ('71-'72 F8/F8-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WHEEL ASSY-FRONT | 1 | 41074-026 | 1 | 1.85BX19W | |
| WHEEL ASSY-REAR | 2 | 42048-015 | 1 | 1.85BX18W | |
| TIRE 3.25-19 Y620 | 3 | 41019-001 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 41019-002 | 1 | ||
| *** N.L.A.*** (Canada) | 5 | 41022-030 | 1 | ||
| TUBE 350/375/410-18 | 6 | 41022-031 | 1 | ||
| BAND RIM | 7 | 41023-015 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | 1 | ||
| RIM 1.85BX19W | 9 | 41025-031 | 1 | ||
| RIM,1.85BX18W | 10 | 41025-045 | 1 | ||
| PROTECTOR-BEAD 1.85B | 11 | 41024-007 | 3 | ||
| SPOKE-ASY,FR INNER | 12 | 41027-050 | 18 | #9X172.5M/M | |
| SPOKE-ASY,FR INNER | 12 | 41027-050 | 18 | ||
| SPOKE-ASY,FR OUTER | 13 | 41028-049 | 18 | #9X173M/M | |
| SPOKE-ASY,INNER | *14 | 41027-036 | 9 | #9X174.5M/M | |
| SPOKE-ASY,INNER | *14 | 41027-036 | 9 | #9X174.5M/M | |
| SPOKE-ASY,OUTER | *15 | 41028-035 | 9 | #9X173.5M/M | |
| SPOKE-ASY,OUTER | *15 | 41028-035 | 9 | #9X173.5M/M | |
| SPOKE-ASY,INNER | *16 | 41027-037 | 9 | #9X164.5M/M | |
| SPOKE-ASY,INNER | *16 | 41027-037 | 9 | #9X164.5M/M | |
| SPOKE ASSY-OUTER | *17 | 41028-027 | 9 | #9X163.5M/M | |
| SPOKE-ASY,OUTER | *17 | 41028-036 | 9 | #9X163.5M/M | |
| WEIGHT,BALANCE,30G | 18 | 41075-1009 | AR | ||
| WEIGHT,BALANCE,20G | 19 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,10G | 20 | 41075-1007 | AR |
