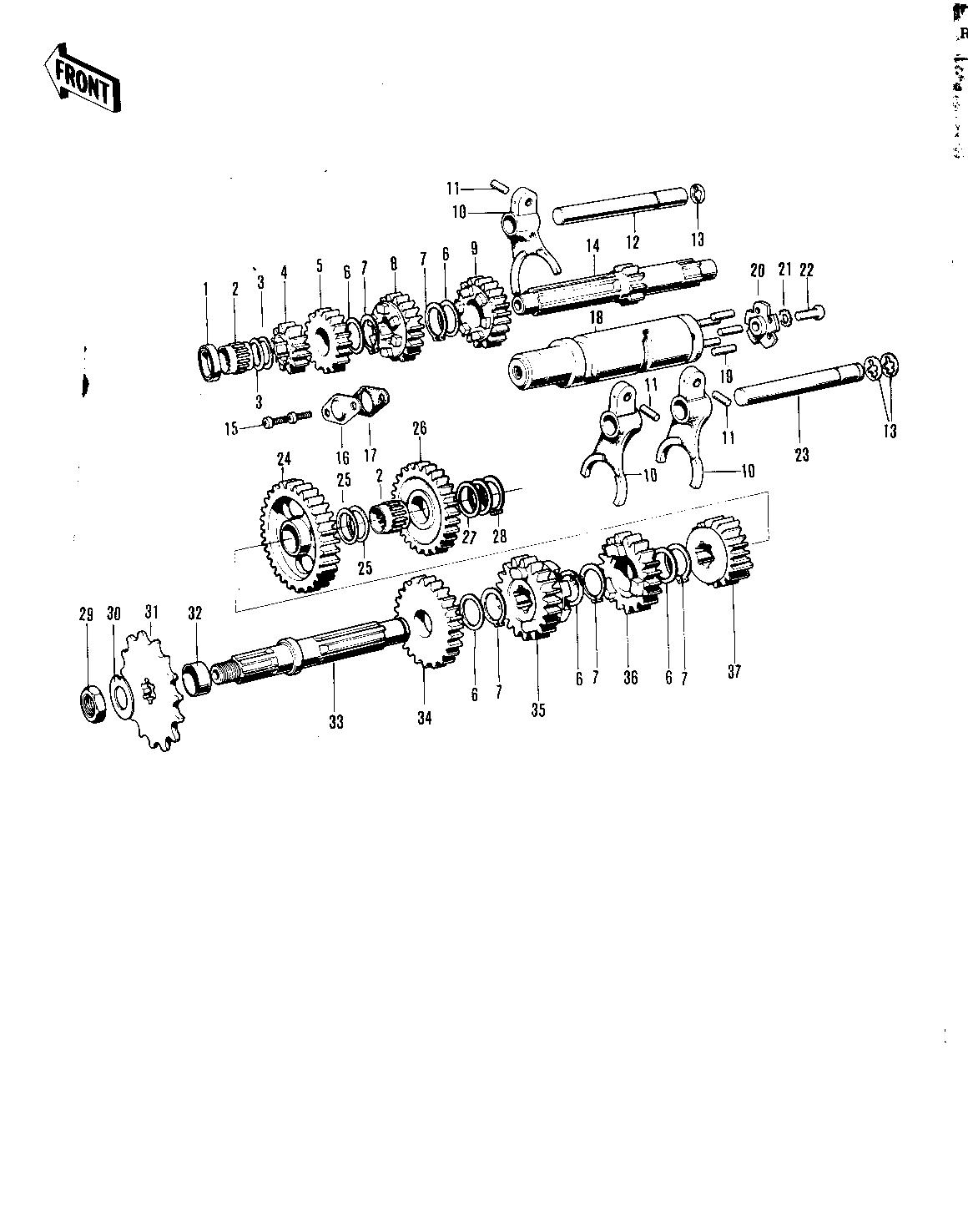

1972 F8-A - TRANSMISSION/CHANGE DRUM ('71 F81M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL SEAL-CLTH PSH ROD 1 92050-034 1
BEARING-NEEDLE 2 92046-025 2 7E-HM2015
WASHER THRUST 3 92022-112 2
2ND GEAR-DRIVE 4 13130-026 1 15T
4TH GEAR-DRIVE 5 13134-010 1 23T
WASHER 25MM 6 92022-076 5
CIRCLIP 7 92033-026 5
3RD GEAR-DRIVE 8 13132-023 1 19T
TOP GEAR-DRIVE 9 13136-033 1 20T
FORK-SELECTOR 10 13140-052 3
PIN-DOWEL,8X12 11 610A0812 3
ROD-SHIFT 12 13209-003 1 L=113 M/M
CIRCLIP 10MM 13 482J0100 3
SHAFT-DRIVE 14 13127-025 1 11T
SCREW PAN HEAD 6X16 15 220B0616 2
PLUG-OIL PUMP-HOLE 16 92084-004 1
GASKET NEUTRAL SWITCH 17 13146-002 1
PIN-CHANGE DRUM 19 92042-020 5
PLATE-CHANGE DRUM PIN 20 13142-010 1
WASHER LOCK 6MM 21 464H0600 1
SCREW CNTSNK HD 6X20 22 221B0620 1
ROD-SHIFT 23 13209-010 1
LOW GEAR-OUTPUT SHAFT 24 13129-042 1 27T
WASHER THRUST 25 92022-113 2
IDLE GEAR-KICKSTARTER 26 13073-005 1 27T
WASHER THRUST 27 92022-112 2 1.0
SHIM-KICK SHAFT 27 92022-144 A. 0.5T
CIRCLIP,19MM 28 480J1900 1
NUT 18MM 29 92015-019 1
WASHER,LOCK,18MM 30 92024-067 1
ENGINE SPROCKET 14T 31 13144-017 1 STD
COLLAR-ENG SPROKET 32 92027-163 1
SHAFT-OUTPUT 33 13128-027 1
2ND GEAR-OUTPUT 3 13131-031 1 24T
4TH GEAR-OUTPUT 35 13135-014 1 25T
3RD GEAR-OUTPUT 36 13133-023 1 24T
TOP GEAR-OUTPUT 37 13137-018 1 19T
