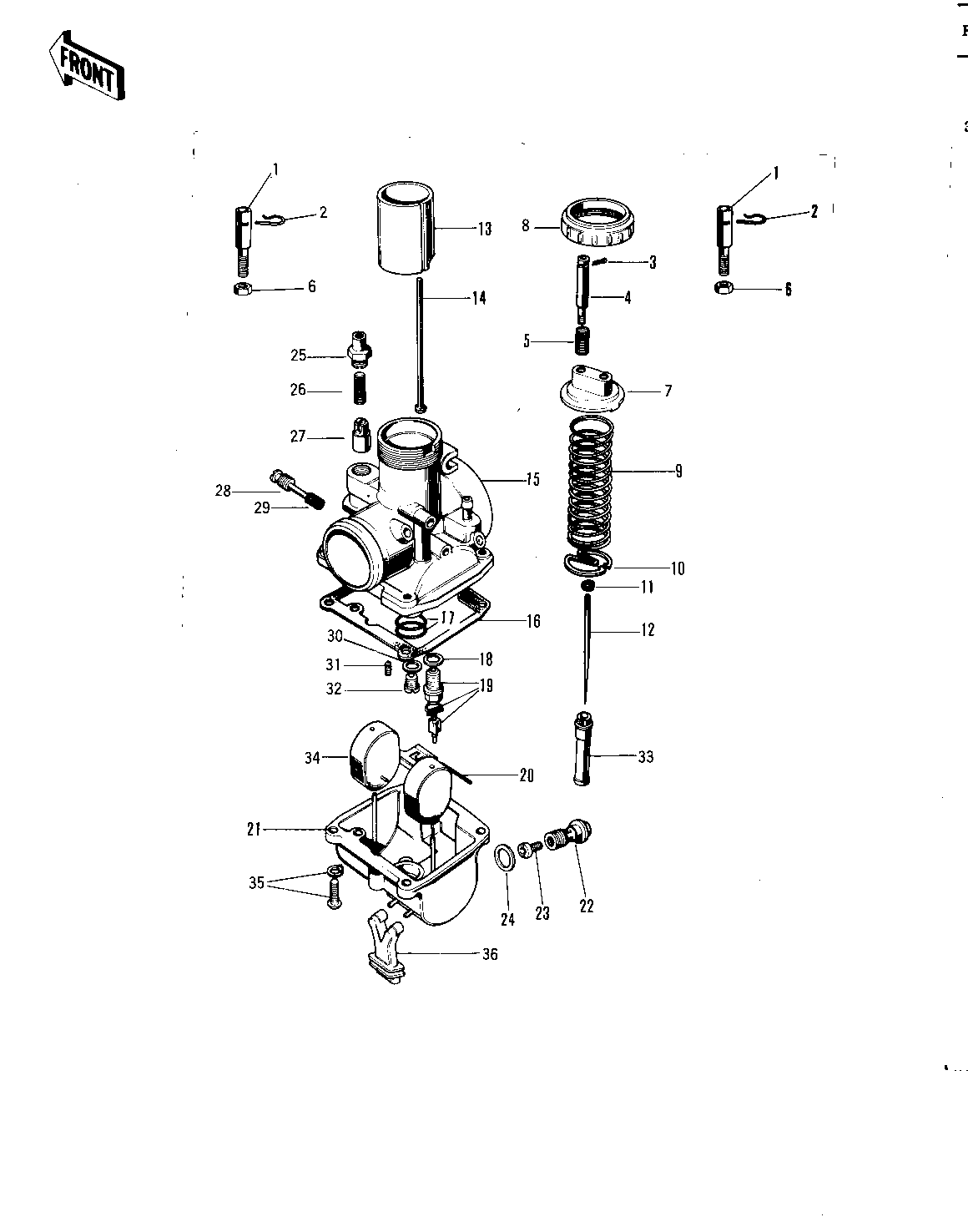

1972 F8-A - CARBURETOR ('71 F81M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ADJUSTER-CABLE 1 92120-001 2
CIRCLIP 2 92036-018 2
CARBURETOR ASSY 3~34 16001-127 1 VM30SC
PIN COTTER 1.6X10 3 550D1610 1
SCREW-THROTTLE STOP 4 16021-011 1
SPRING THR STOP SCREW 5 16022-005 1
NUT CABLE ADJUST LOCK 6 16003-004 2
TOP-MIXING CHAMBER 7 16005-022 1
CAP-MIXING CHAMBER 8 16004-015 1
SPRING-THROTTLE VALVE 9 16006-016 1
SPRING SEAT-THRTL VLV 10 16007-014 1
CIRCLIP 11 16008-010 1
JET NEEDLE 5EH7 12 16009-044 1
VALVE-THROTTLE 13 16025-033 1
ROD-THROTTLE VLV STOP 14 16024-011 1
GASKET-FLOAT CHAMBER 16 16019-015 1
'V' RING 17 92055-042 1
WASHER FLOAT VLV SEAT 18 16029-004 1
FLOAT VALVE ASSY 19 16030-013 1
FLOAT PIN 20 16032-005 1
BOLT-BANJO 22 92001-097 1
MAIN JET NO 130R 23 92063-057 1 S.T.D.
GASKET-BANJO BOLT 24 16034-005 1
CAP STARTER PLUNGER 25 16012-004 1
SPRING-PLUNGER 26 16013-003 1
PLUNGER-ENRICHNER 27 16016-002 1
SCREW 28 16014-006 1
SPRING-THR STOP SCREW 29 16022-007 1
WASHER MAIN JET 30 16034-001 1
JET-PILOT NO 40 31 92064-024 1
MAIN JET NO 2.4R 32 92063-102 1
NEEDLE JET 33 16017-053 1
FLOAT 34 16031-020 1
SCREW-PAN-WS-CROS 35 223B0414 4
GROMMET-OVERFLOW PIPE 36 16136-004 1
