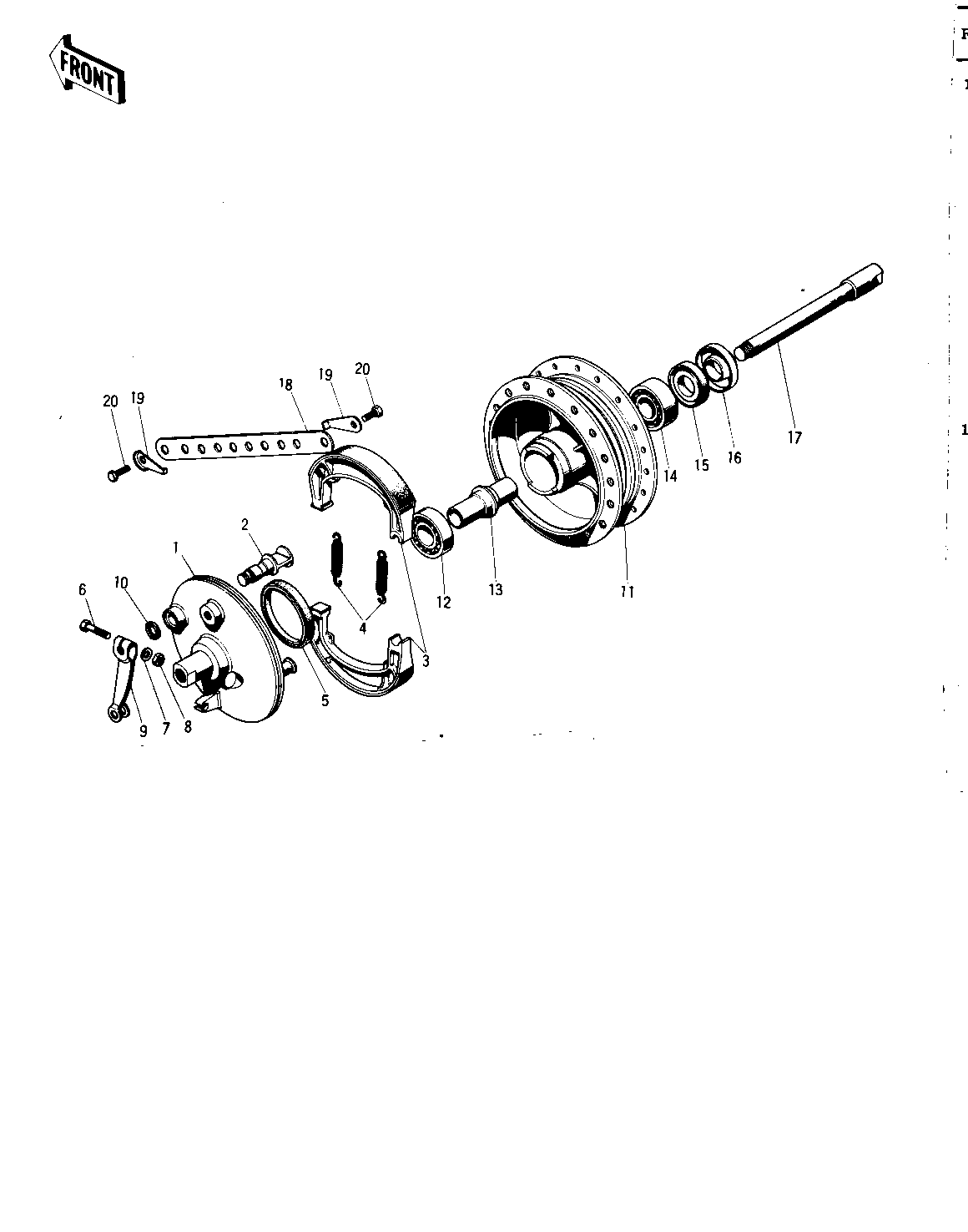

1972 F8-A - FRONT HUB/BRAKE ('71 F81M)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PANEL-ASY,FR BRK | 1~10 | 41035-032 | 1 | ||
CAM SHAFT,REAR BRAKE | 2 | 42026-021 | 1 | ||
SHOE,BRAKE | 3 | 42019-011 | 2 | ||
SPRING-BRAKE SHOE | 4 | 42020-004 | 2 | ||
OIL SEAL F BRK PANEL | 5 | 92050-010 | 1 | ||
BOLT-UPSET,6X40 | 6 | 112G0640 | 1 | ||
WASHER PLAIN 6MM | 7 | 410B0600 | 1 | ||
NUT 6MM | 8 | 311B0600 | 1 | ||
LEVER,REAR BRAKE CAM | 9 | 42029-037 | 1 | ||
DUST SHIELD BRAKE CAM | 10 | 41051-001 | 1 | ||
DRUM-ASSY,FR BRK,BUFF | 11~15 | 41034-048-80 | 1 | ||
DRUM-ASSY,FR BRK | 11~15 | 41034-022 | 1 | ||
BEARING BALL #6202Z | 12 | 601B6202Z | 1 | ||
SPACER FR HUB BEARING | 13 | 41039-004 | 1 | ||
BEARING BALL #6202 | 14 | 601B6202 | 1 | ||
OIL SEAL RR BRK DRUM | 15 | 92050-008 | 1 | ||
COLLAR FRONT HUB R.H | 16 | 41069-004 | 1 | ||
AXLE-FRONT | 17 | 41068-029 | 1 | ||
TORQUE LINK-FRNT BRK | 18 | 43007-022 | 1 | ||
WASHER-LOCK | 19 | 92088-012 | 2 | ||
BOLT-HEA HEAD,8X20 | 20 | 92001-086 | 2 |
