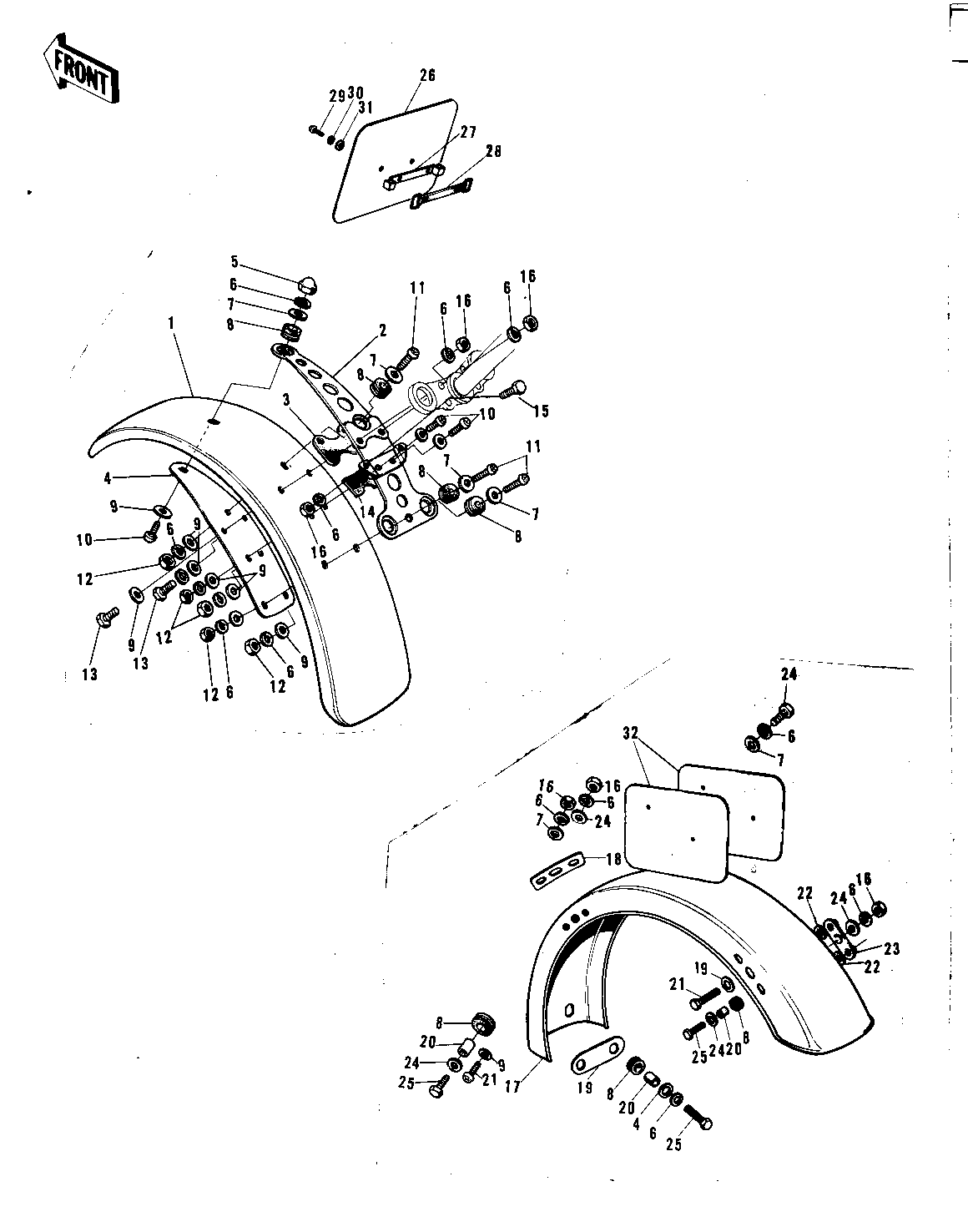

1972 F8-A - FENDERS/NUMBER PLATES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,GREEN 1 35004-048-70 1
BRACKET-FRONT FENDER 2 35012-011 1
DAMPER RUBBER-F.FENDR 3 35007-002 1
PLATE-FRNT FENDER FIT 4 35013-009 1
NUT,6MM 5 92015-009 1
WASHER SPRING 6MM 6 461F0600 28
WASHER 6.5X20X1.6T 7 92022-125 12 O.D=20
DAMPER RUBBER 8 92075-051 10
WASHER PLAIN 9 92022-024 18 O.D=16
SCREW PAN HEAD 6X20 10 220B0620 3
SCREW PAN HEAD 6X20 11 220E0620 3
NUT 6MM 12 312B0600 5
BOLT-HEX HEAD,6X42 13 92003-063 2
DAMPER RUBBER-FR FNDR 14 35007-003 1
BOLT-UPSET 15 112G0625 2
BOLT-UPSET 15 112G0625 AL
NUT 6MM 16 311B0600 14
FENDER-RR 17 35022-049 1
BRACE-RR FENDER,SIDE 18 35034-011 2
BRACE-RR FENDER,FRONT 19 35034-013 1
COLLAR 20 92027-103 6
SCREW PAN HEAD 6X14 21 220B0614 8
DAMPER RUBBER 22 92075-097 4
WASHER-PLAIN 23 92022-200 2
WASHER PLAIN 6MM 24 411B0600 10
BOLT-UPSET 25 112G0618 6
BOLT-UPSET 25 112G0618 AL
PLATE-FRONT NUMBER 26 58029-013 1
BRACKET FRNT NO PLATE 27 58030-003 1
BAND BATTERY 28 92072-006 1
BOLT-SMALL-UPSET,8X18 29 115G0818 2
WASHER SPRING 8MM 30 461F0800 2
WASHER,8X26X2.3 31 92022-1564 2
PLATE-REAR NUMBER 32 58029-015 2
SCREW PAN HEAD 6X12 33 220B0612 4
