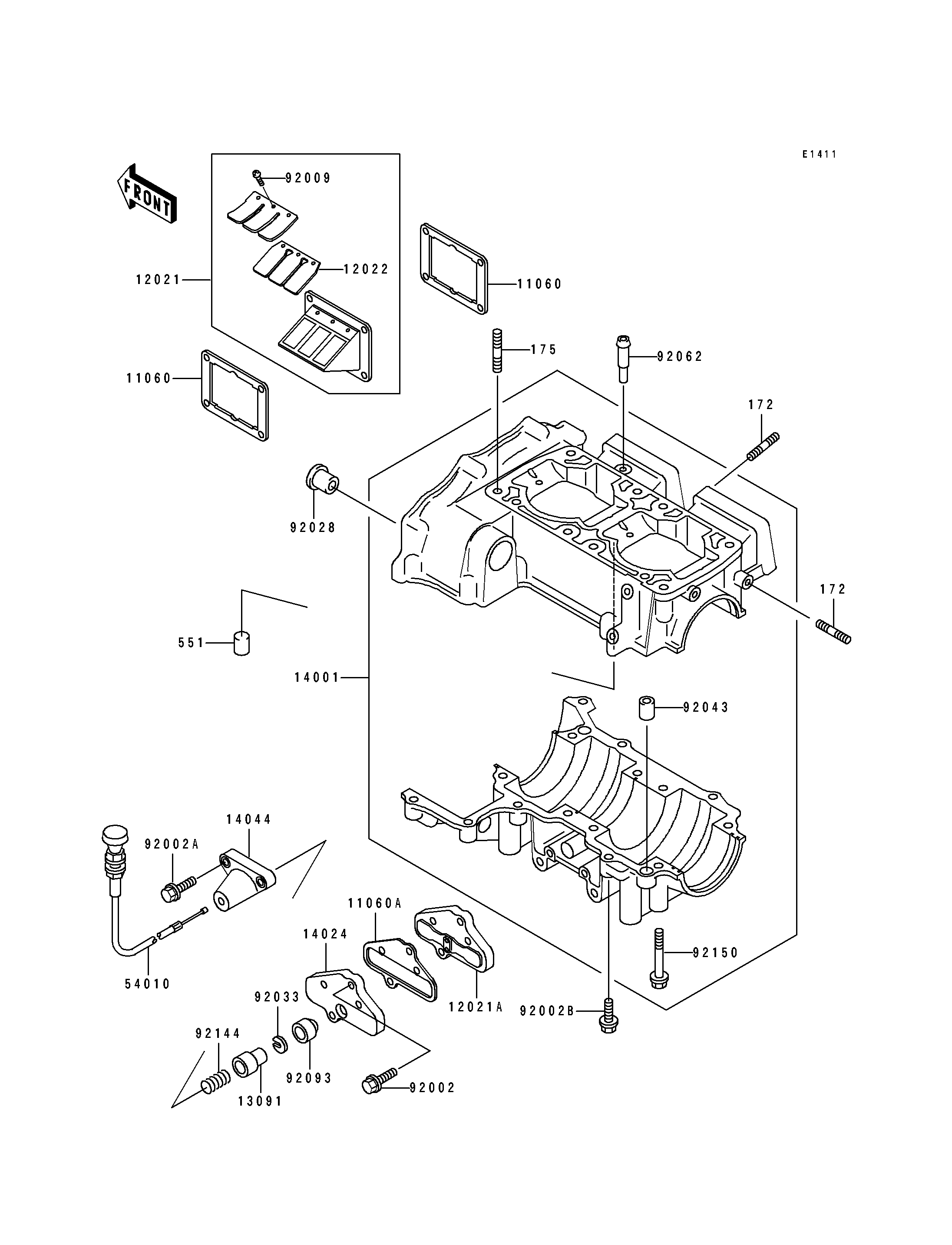

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11060 11060-3703 4
GASKET,CONTROL VALVE 11060A 11060-3723 1
VALVE-ASSY-REED 12021 12021-3704 2
VALVE-ASSY-REED,CONTROL 12021A 12021-3707 1
VALVE-REED 12022 12022-1001 4
HOLDER 13091 13091-3707 1
SET-CRANKCASE 14001 14001-5289 1
COVER,CONTROL VALVE 14024 14024-3716 1
HOLDER-CABLE 14044 14044-3702 1
CABLE,CONTROL VALVE 54010 54010-3707 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X45 92002A 92002-3717 2
BOLT,6X30 92002B 92002-3726 7
SCREW,REED VALVE 92009 92009-1014 12
BUSHING 92028 92028-3718 1
RING-SNAP 92033 92033-3708 1
PIN,DOWEL,10X14 92043 92043-1037 2
NOZZLE 92062 92062-3705 1
SEAL 92093 92093-3703 1
SPRING 92144 92144-3701 1
BOLT,8X65 92150 92150-3708 8
BOLT-STUD 172 172R0620 10
BOLT-STUD-FINE 175 175R1035 8
PIN-DOWEL 551 551R0612 1
