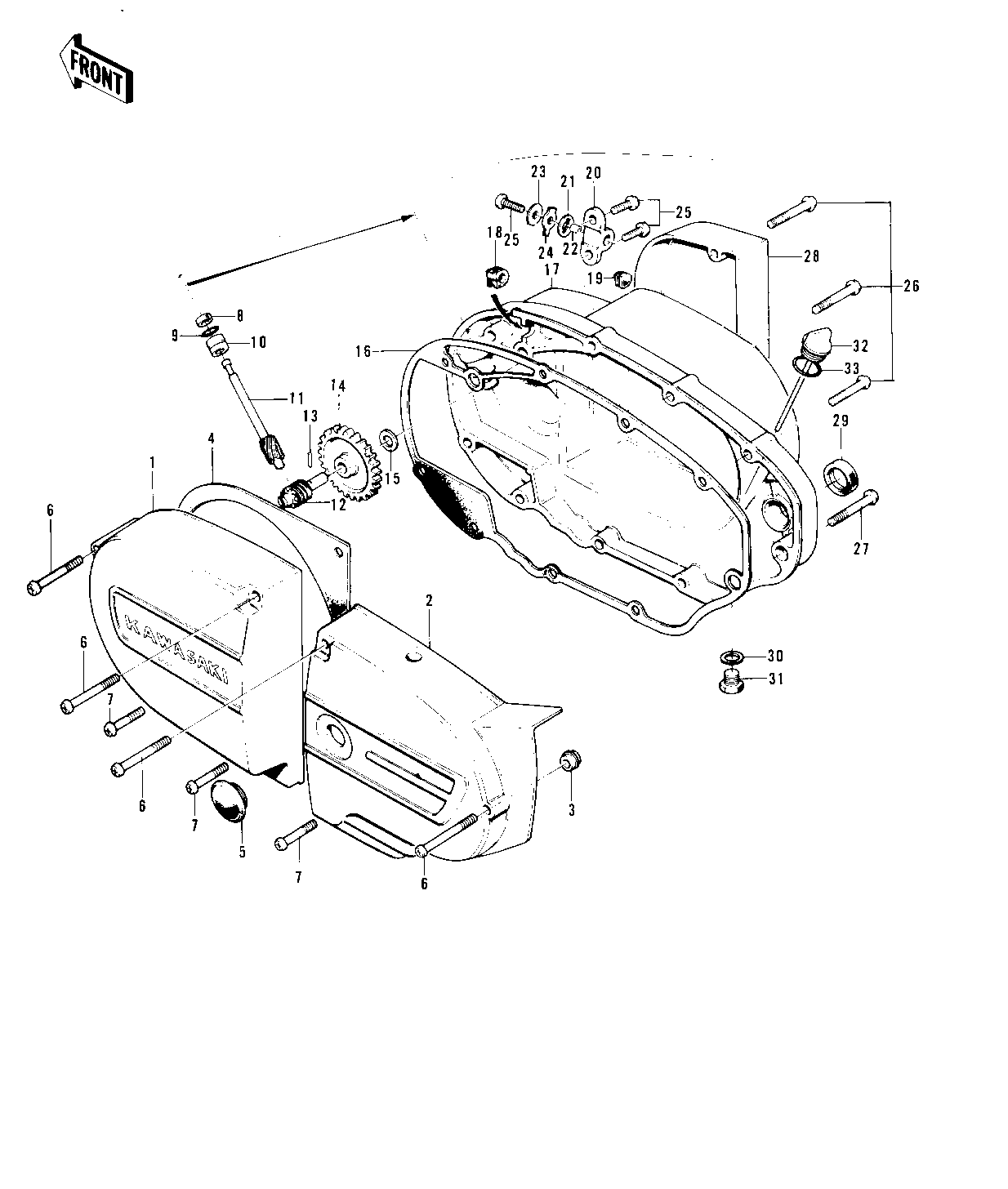

1974 F11-A - ENGINE COVERS ('73-'75 F11/F11-A/F11-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-L.H ENG,BLACK 1 14031-048-21 FLAT BLACK,F11
COVER,L.H ENGINE,BAR 1 14031-048-2H BARREL FINISH,F11A/B
COVER-CHAIN CASE,BLK 2 14026-027-21 FLAT BLACK,F11
COVER,CHAIN CASE,BAR 2 14026-027-2H BARREL FINISH,F11A/B
TENSIONER-CHAIN 3 13123-005
GASKET-L.H ENGINE CO 4 14045-013
CAP-CLUTCH HOLE 5 14040-003
SCREW PAN HEAD 6X60 6 220B0660
SCREW PAN HEAD 6X25 7 220B0625
OIL SEAL 8 92054-004
"0" RING 9 92055-025
BUSH-TACHOMETER GEAR 10 92028-095
GEAR-TACHOMETER 11 13223-005
PINION-TACHOMETER 12 13224-009
PIN,DOWEL 13 92042-035
GEAR-OIL PUMP 14 16085-018 35T
WASHER THRUST 15 92026-025
GASKET-R.H ENGINE CO 16 14046-022
COVER-R.H ENG,BLACK 17 14032-070-21 FLAT BLACK,F11
COVER,R.H ENGINE,BAR 17 14032-103-2H BARREL FINISH,F11A/B
GROMMET WIRING HARN 18 21017-002
GROMMET 19 92071-063
HOLDER-OIL PUMP WIRE 20 14044-007
HOLDER-OIL PUMP WIRE 21 14044-008
COLLAR 22 92027-164
WASHER-LOCK 23 92024-045
WASHER 6.5X20X1.6T 24 92022-125
SCREW PAN HEAD 6X16 25 220B0616
SCREW PAN HEAD 6X35 26 220B0635
SCREW PAN HEAD 6X45 27 220B0645
COVER-OIL PUMP,BLACK 28 14030-035-21 FLAT BLACK,F11
COVER,OIL PUMP,BARRE 28 14030-035-2H BARREL FINISH,F11A/B
OIL SEAL SB20285 29 92049-012
GASKET CHECK VALVE 30 92065-058
PLUG OIL DRAIN 31 92067-001 FLAT BLACK
PLUG-OIL FILLER 32 16115-014 FF11/A
PLUG-OIL FILLER 32 16115-017 F11B
"0" RING,20MM 33 670B2020
