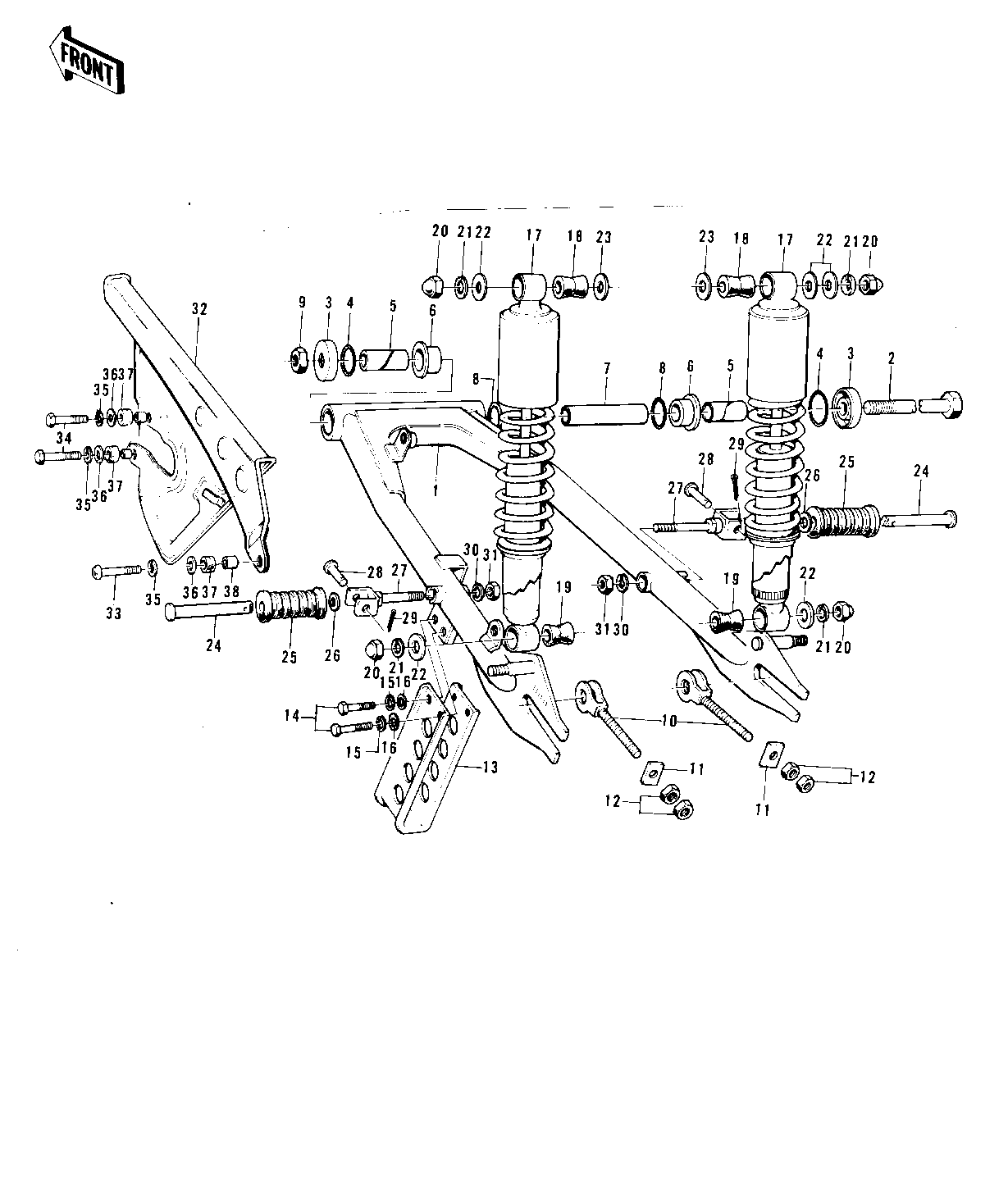

1974 F11-A - SWING ARM/SHOCK ABSORBERS ('73-'75 F11/F

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SWING 1 33001-042
SHAFT-SWING ARM PIVO 2 33032-035
CAP-SWINGING ARM 3 33035-005
"0" RING,30MM 4 671B2530
SLEEVE-SWINGING ARM 5 33034-016
BUSHING-SWING ARM 6 33033-009
SLEEVE-SWING ARM,LON 7 33034-018
"0" RING,16MM 8 670B2016
NUT-LOCK,12MM 9 92019-009
ADJUSTER-CHAIN 10 33040-050
PLATE-CHAIN ADJUSTER 11 33041-002
NUT 8MM 12 312B0800
GUARD-CHAIN 13 55020-008
BOLT,HEX HEAD,6X50 14 110G0650
WASHER SPRING 6MM 15 461F0600
WASHER PLAIN 6MM 16 410B0600
SHOCK ABSBR RR CR 17~19 45014-067-79 CR.-PLATED
BUSH A-SHCK ABS RUBE 18 45017-010
BUSH B-SHCK ABS RUBE 19 45017-009
NUT SHOCK ABSORBER 20 92020-003
WASHER SPRING 10MM 21 461F1000
WASHER-PL-10.5X26X2. 22 92022-044
WASHER PLAIN 12MM 23 410B1200
BAR-RR FOOTREST (OPT 24 34028-009 OPTION
BAR-RR FOOTREST (OPT 25 34028-009 OPTION
WASHER-PLAIN (OPT) 26 92022-199 OPTION
BKT-RR FOOTREST BAR 27 34029-007 OPTION
PIN 28 92043-1464 OPTION
PIN COTTER 2.0X15 29 550D2015 OPTION
WASHER SPRING 12MM 30 461F1200 OPTION
NUT-HEX-FINE,12MM 31 315B1200 OPTION
CASE-CHAIN,BLACK 32 36014-044-21 FLAT BLACK
SCREW PAN HEAD 6X16 33 220B0616
BOLT-UPSET,6X16 34 112G0616
WASHER SPRING 6MM 35 461F0600
WASHER 6.5X20X1.6T 36 92022-125
DAMPER RUBBER 37 92075-051
COLLAR 38 92027-103
