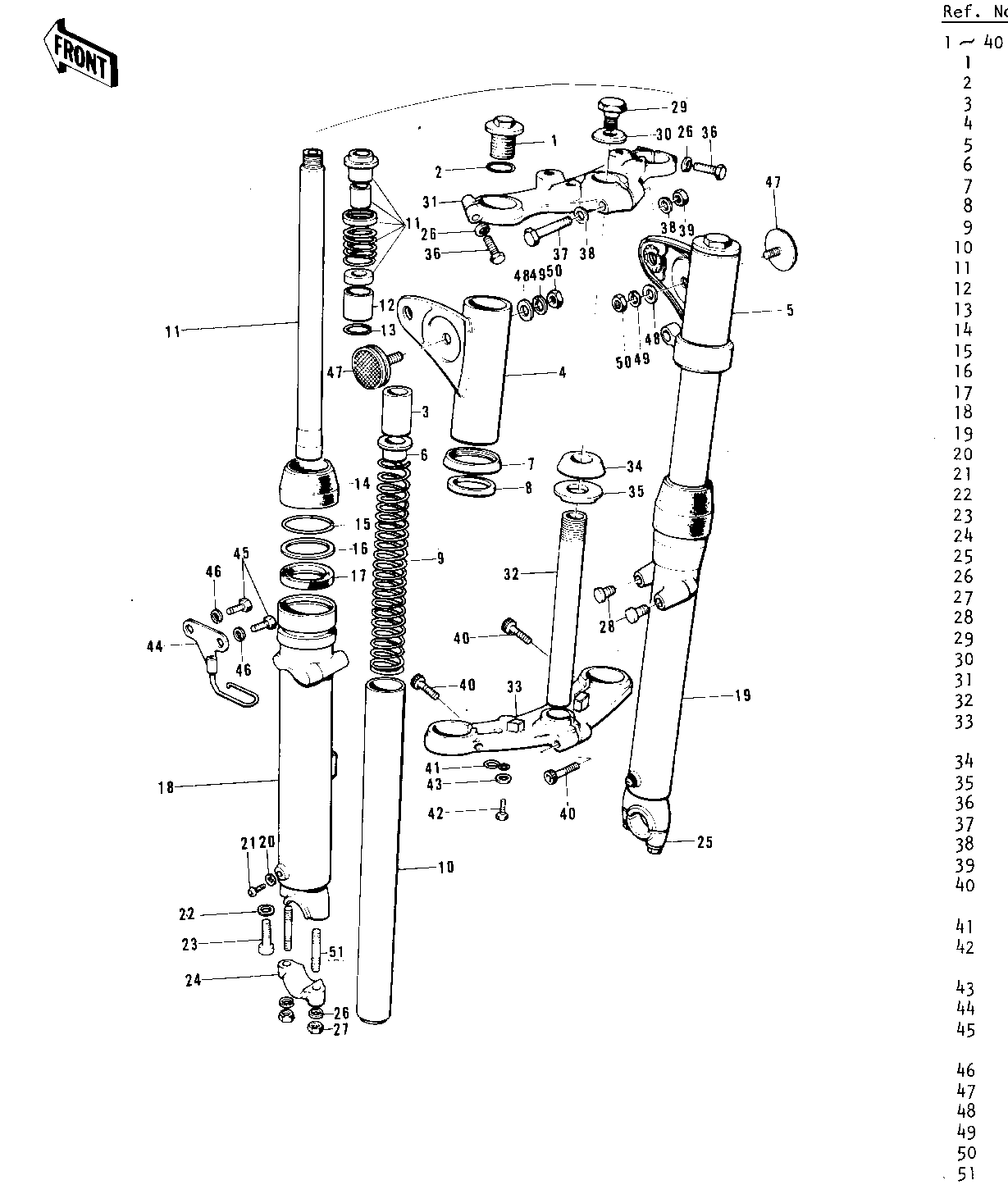

1974 F11-A - FRONT FORK ('73-'75 F11/F11-A/F11-B)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FRONT FORK ASSY,BLAC | 1~40 | 44001-081-21 | FLAT BLACK | ||
BOLT-FORK FITTING | 1 | 44041-037 | |||
"O" RING,FORK TOP | 2 | 92055-1012 | |||
SPACER | 3 | 44028-025 | |||
COVER-L.H FORK,BLACK | 4 | 44033-047-21 | FLAT BLACK | ||
COVER-R.H FORK,BLACK | 5 | 44034-047-21 | FLAT BLACK | ||
GUIDE-FORK SPRING | 6 | 44029-019 | |||
GUIDE-FORK COVER | 7 | 44032-009 | |||
SPRING-FORK | 8 | 44026-041 | |||
SPRING-FORK | 9 | 44026-041 | |||
TUBE-FORK INNER | 10 | 44013-036 | |||
CYLINDER-FORK | 11 | 44022-009 | |||
PISTON FORK | 12 | 44018-001 | |||
CIRCLIP FORK PISTON | 13 | 44044-008 | |||
DUST SHIELD-FORK | 14 | 44010-019 | |||
CIRCLIP OIL SEAL FIT | 15 | 44044-005 | |||
WASHER OIL SEAL FIT | 16 | 44043-023 | |||
OIL SEAL,FORK | 17 | 44009-020 | |||
TUBE,RH,FORK OUTER | 18 | 44006-042 | |||
TUBE,RH,FORK OUTER | 19 | 44006-042 | |||
GASKET FORK DRAIN PL | 20 | 44045-002 | |||
SCREW PAN HEAD 4X8 | 21 | 220B0408 | |||
GASKET,FORK CYLINDER | 22 | 44045-057 | |||
BOLT-FORK CYLINDER | 23 | 44041-040 | |||
HOLDER-FRONT AXLE,L. | 24 | 44063-004 | |||
HOLDER-FRONT AXLE,R. | 25 | 44063-005 | |||
WASHER SPRING 8MM | 26 | 461F0800 | |||
NUT,8MM | 27 | 311B0800 | |||
CAP | 28 | 44062-002 | |||
BOLT STRNG STEM HEAD | 29 | 44041-007 | |||
WASHER FORK COVER | 30 | 44043-032 | |||
HEAD-STEERING STEM | 31 | 44039-046 | |||
SHAFT-STEERING STEM | 32 | 44052-003 | |||
STEM,STEERING | 33 | 44037-089 | |||
STEM,STEERING | 33 | 44037-089 | |||
CONE STERNG BERG LOW | 34 | 92047-010 | |||
DUST SHIELD-STRNG ST | 35 | 44010-020 | |||
BOLT-STEERING STEM H | 36 | 44041-044 | |||
BOLT-STEERING STEM H | 37 | 44041-042 | |||
WASHER PLAIN 8MM | 38 | 410B0800 | |||
NUT,LOCK,8MM | 39 | 92015-1124 | |||
BOLT-STEERING STEM | 40 | 44041-043 | |||
BOLT-HEX HEAD,12X36 | 40 | 113B1236A | FOR 44037-089 | ||
CLAMP | 41 | 92037-083 | |||
BOLT-UPSET,6X12 | 42 | 112G0612 | |||
BOLT-UPSET,6X12 | 42 | 112G0612 | |||
WASHER PLAIN 6MM | 43 | 411B0600 | |||
GUIDE-CABLE | 44 | 54030-007 | |||
BOLT SMALL | 45 | 114G0812 | |||
BOLT SMALL | 45 | 114G0812 | |||
WASHER SPRING 8MM | 46 | 461F0800 | |||
REFLECTOR-REFLEX,FRN | 47 | 28001-011 | |||
WASHER PLAIN 5MM | 48 | 411B0500 | |||
WASHER SPRING 5MM | 49 | 461F0500 | |||
NUT,5MM | 50 | 311B0500 |
