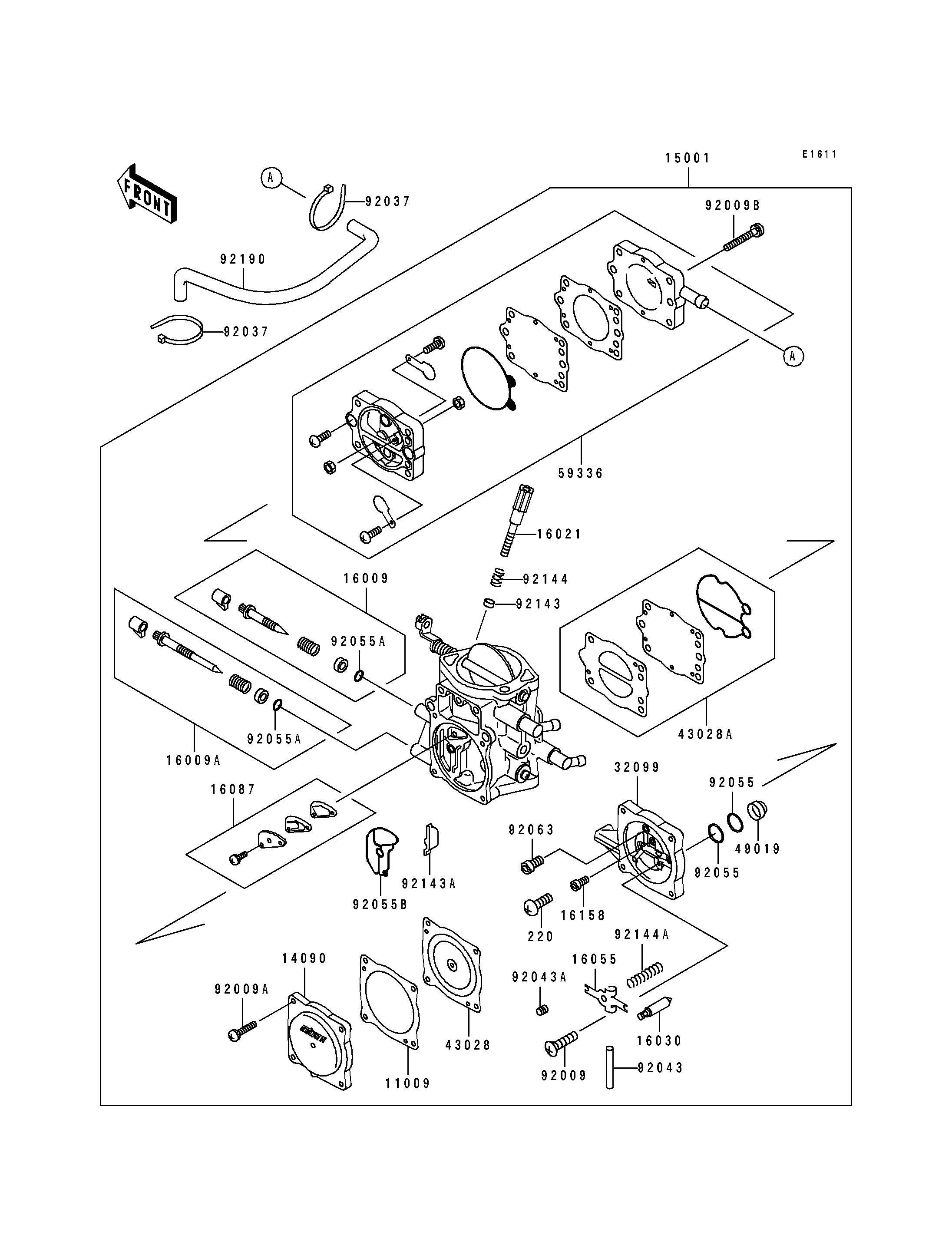

1991 650 SX - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DIAPHRAGM 11009 11009-3730 1
COVER,DIAPHRAGM 14090 14090-3702 1
CARBURETOR-ASSY 15001 15001-3758 1
NEEDLE-JET,MAIN 16009 16009-3711 1
NEEDLE-JET,SLOW 16009A 16009-3712 1
SCREW-THROTTLE STOP 16021 16021-3702 1
VALVE-FLOAT 16030 16030-3701 1
ARM-FLOAT 16055 16055-3701 1
VALVE-CHECK 16087 16087-3703 1
JET-SLOW 16158 16158-3705 1
CASE,CARBURETOR 32099 32099-3754 1
DIAPHRAGM,CARBURETOR 43028 43028-3704 1
DIAPHRAGM,PUMP 43028A 43028-3706 1
FILTER-FUEL,STRAINER 49019 49019-3707 1
CASE-PUMP 59336 59336-3709 1
SCREW,3X6 92009 92009-3712 1
SCREW,4X18 92009A 92009-3782 4
SCREW,5X28 92009B 92009-3783 4
CLAMP 92037 92037-1173 2
PIN,FLOAT 92043 92043-1209 1
PIN,THROTTLE STOP SCREW 92043A 92043-3712 1
RING-O 92055 92055-1246 2
RING-O,ADJUST SCREW 92055A 92055-3713 2
RING-O 92055B 92055-3734 1
JET-MAIN,#140 92063 92063-3701 1
COLLAR,THROTTLE STOP SCREW 92143 92143-3709 1
COLLAR 92143A 92143-3727 1
SPRING,THROTTLE STOP SCREW 92144 92144-3706 1
SPRING,FLOAT ARM 92144A 92144-3733 1
TUBE,PULSE 92190 92190-3730 1
SCREW-PAN-CROS 220 220D0408 1
