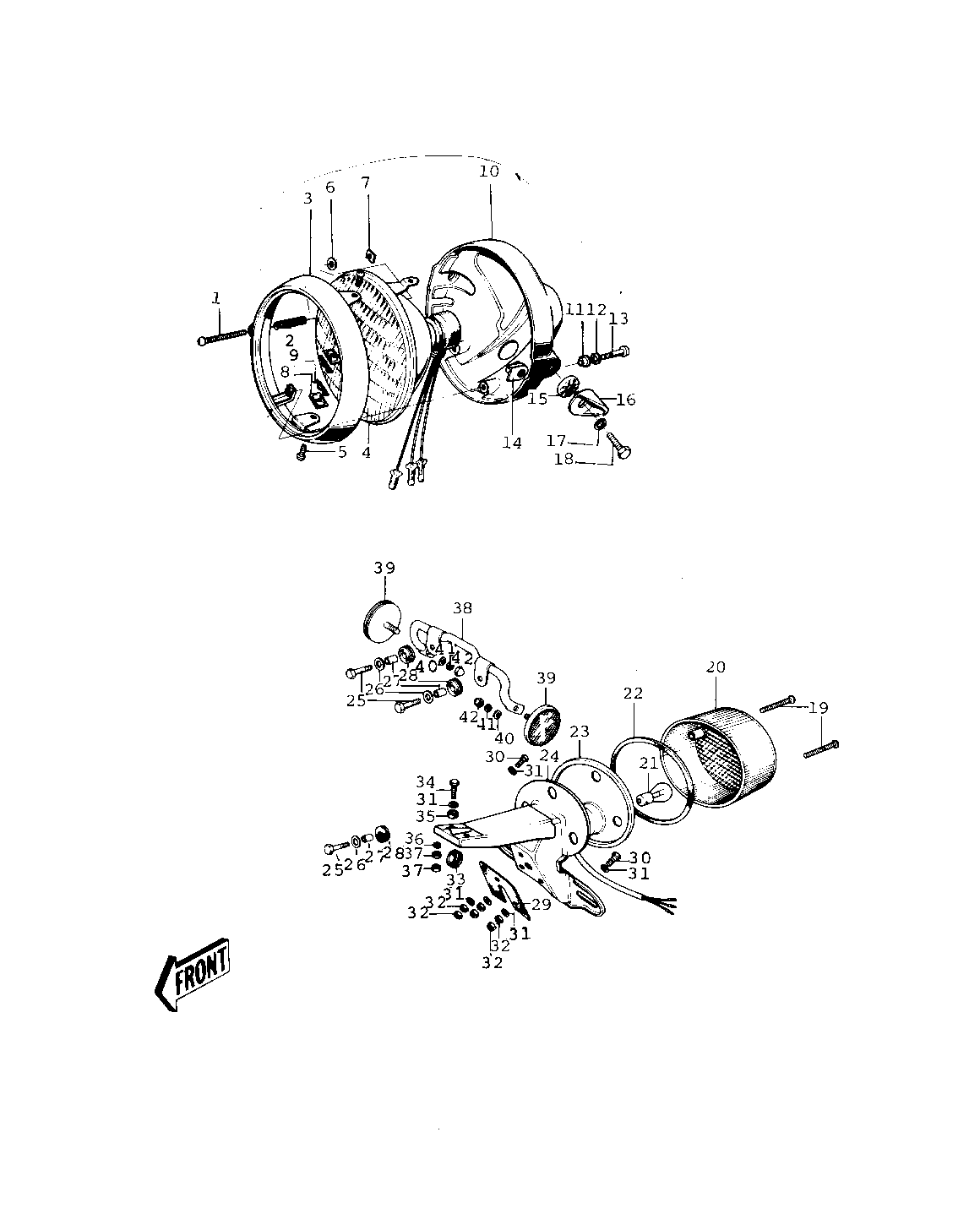

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP UNIT-HEAD | 1~9 | 23003-015 | |||
SCREW FORCUS ADJUST | 1 | 23019-021 | |||
SPRING FOCUS ADJUST | 2 | 23014-005 | |||
RIM-HEAD LAMP | 3 | 23006-028 | |||
LENS UNIT-HEAD LAMP | 4 | 23007-032 | |||
SCREW LENS UNIT FITT | 5 | 23019-018 | |||
WASHER | 6 | 23021-004 | |||
NUT | 7 | 23020-016 | |||
NUT LENS UNIT FITTIN | 8 | 23020-009 | |||
PIN LENS UNIT FITTIN | 9 | 23022-001 | |||
BODY-HEAD LAMP,BLACK | 10 | 23005-034-10 | BLACK | ||
WASHER | 11 | 23021-010 | |||
WASHER SPRING 5MM | 12 | 461F0500 | |||
SCREW-PAN HEAD,5MM | 13 | 92011-024 | |||
NUT | 14 | 23020-017 | |||
WASHER-LOCK | 15 | 23021-011 | |||
DAMPER RUBBER | 16 | 92075-134 | |||
WASHER SPRING 10MM | 17 | 461F1000 | |||
BOLT,10MM | 18 | 92007-024 | |||
LAMP ASSY-TAIL BLACK | 19~28 | 23024-021-21 | FLAT BLACK | ||
SCREW-PAN HEAD,4X35 | 19 | 220E0435A | |||
LENS-TAIL LAMP | 20 | 23026-023 | |||
BULB,6V 17/5.3W | 21 | 92069-028 | |||
GASKET-TAIL LAMP LEN | 22 | 23028-018 | |||
CASE,TAIL LAMP | 23 | 23027-030 | |||
BKT-LICENSE PLT,BLAC | 24 | 23036-018-21 | FLAT BLACK | ||
BOLT-UPSET,6X20 | 25 | 112G0620 | |||
WASHER 6.5X20X1.6T | 26 | 92022-125 | |||
COLLAR,6.8X10X8.5 | 27 | 92027-129 | |||
DAMPER RUBBER | 28 | 92075-076 | |||
DAMPER-TAIL LAMP SHC | 29 | 35039-005 | 8T | ||
BOLT-UPSET | 30 | 112G0630 | |||
WASHER 6.5X20X1.6T | 31 | 92022-125 | |||
NUT 6MM | 32 | 312B0600 | |||
GROMMET HARNESS 10MM | 33 | 92071-019 | |||
BOLT 6X22 | 34 | 112B0622 | |||
DAMPER RUBBER-TAIL L | 35 | 92075-151 | |||
WASHER PLAIN 6MM | 36 | 411B0600 | |||
NUT 6MM | 37 | 311B0600 | |||
BRACKET-REFLECTOR | 38 | 28013-005 | |||
REFLECTOR-REFLEX,REA | 39 | 28012-008 | |||
WASHER PLAIN 5MM | 40 | 411B0500 | |||
WASHER SPRING 5MM | 41 | 461F0500 | |||
NUT-CAP,5MM | 42 | 322N0500 |
