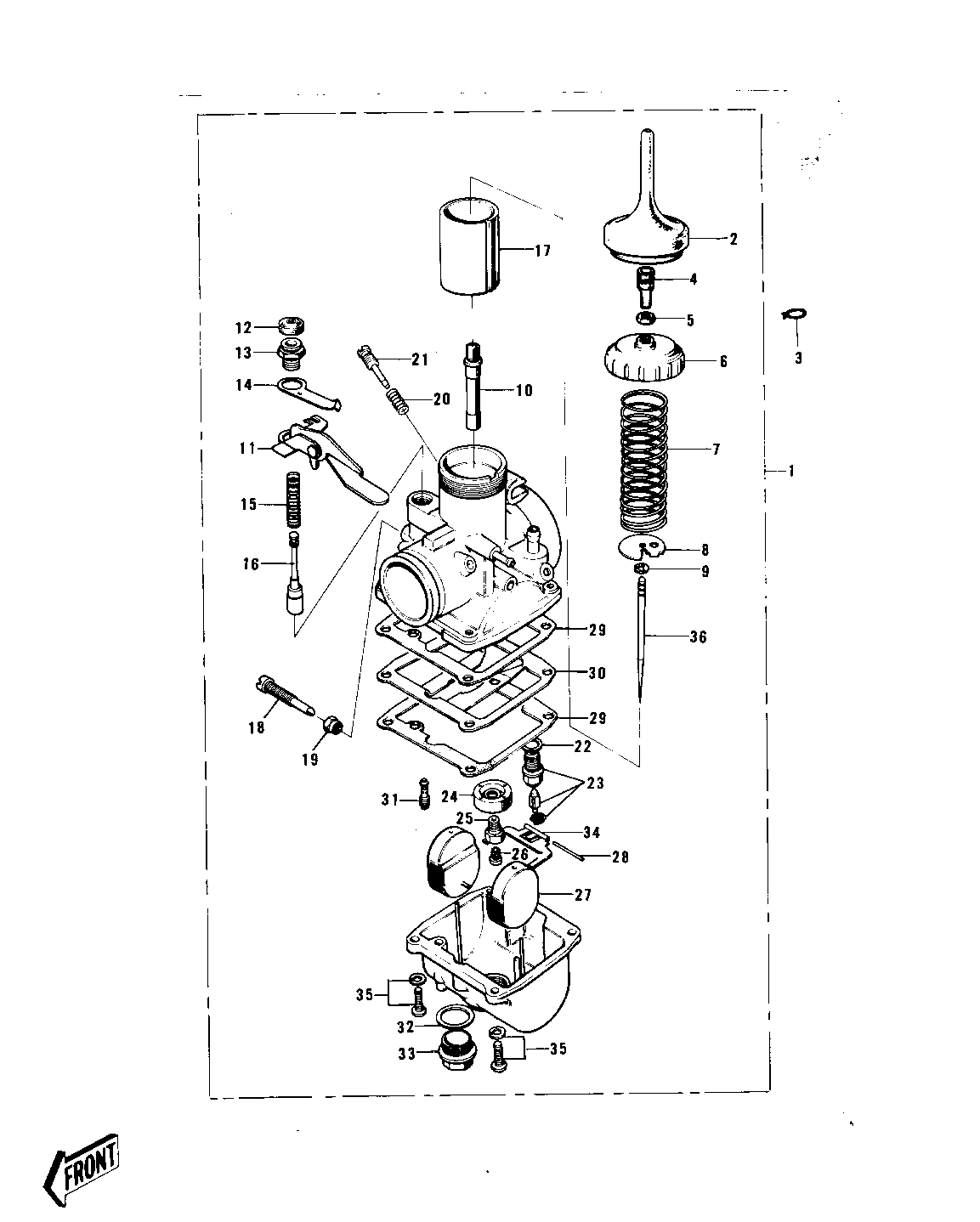

1974 F11-A - CARBURETOR ('73 F11M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-176
CAP,CABLE ADJUSTER 2 16036-011
CIRCLIP 3 92036-018
CABLE ADJUSTER 4 16002-011
SPRING THROTTLE VALV 5 16006-006
CAP-MIXING CHAMBER 6 16004-022
SPRING-THROTTLE VALV 7 16006-016
SEAT-SPRING-CARB 8 16007-022
CIRCLIP 9 16008-010
NEEDLE JET O-6 10 16017-067
UNAVAILABLE IN PRICE BOOK 11 16063-00
CAP,STARTER PLUNGER 12 16036-012
CAP,PLUNGER 13 16012-016
SPRING,STATER LEVER 14 16013-009
SPRING,STARTER PLUG 15 16013-008
PLUNGER 16 16016-011
VALVE,TROTTLE CA2.5 17 16025-056
SCREW,THROTTLE ADJUST 18 16021-022
NUT,CABLE ADJUST LOCK 19 16003-009
SPRING-THR STOP SCREW 20 16022-007
SCREW 21 16014-006
WASHER FLOAT VALVE SEAT 22 16029-004
FLOAT VALVE ASSY 23 16030-020
RING 24 16065-024
HOLDER,MAIN JET 25 16065-025
MAIN JET NO 130R 26 92063-057 STD
MAIN JET NO 125R 26 92063-055 OPTION
JET-MAIN,#A127.5 26 92063-1100 OPTION
JET-MAIN NO 132.5R 26 92063-103 OPTION
MAIN JET NO 135R 26 92063-104 OPTION
FLOAT 27 16031-1062
FLOAT PIN 28 16032-003
GASKET 29 16019-022
PLATE 30 16038-010
PILOT JET #30 IS 31 92064-027
WASHER-MAIN JET COVE 32 16034-003
COVER,MAIN SET 33 16049-004
ARM,FLOAT 34 16055-004
SCREW, FLOAT CHAMBER 35 16033-017
JET NEEDLE 6FL14 36 16009-058
