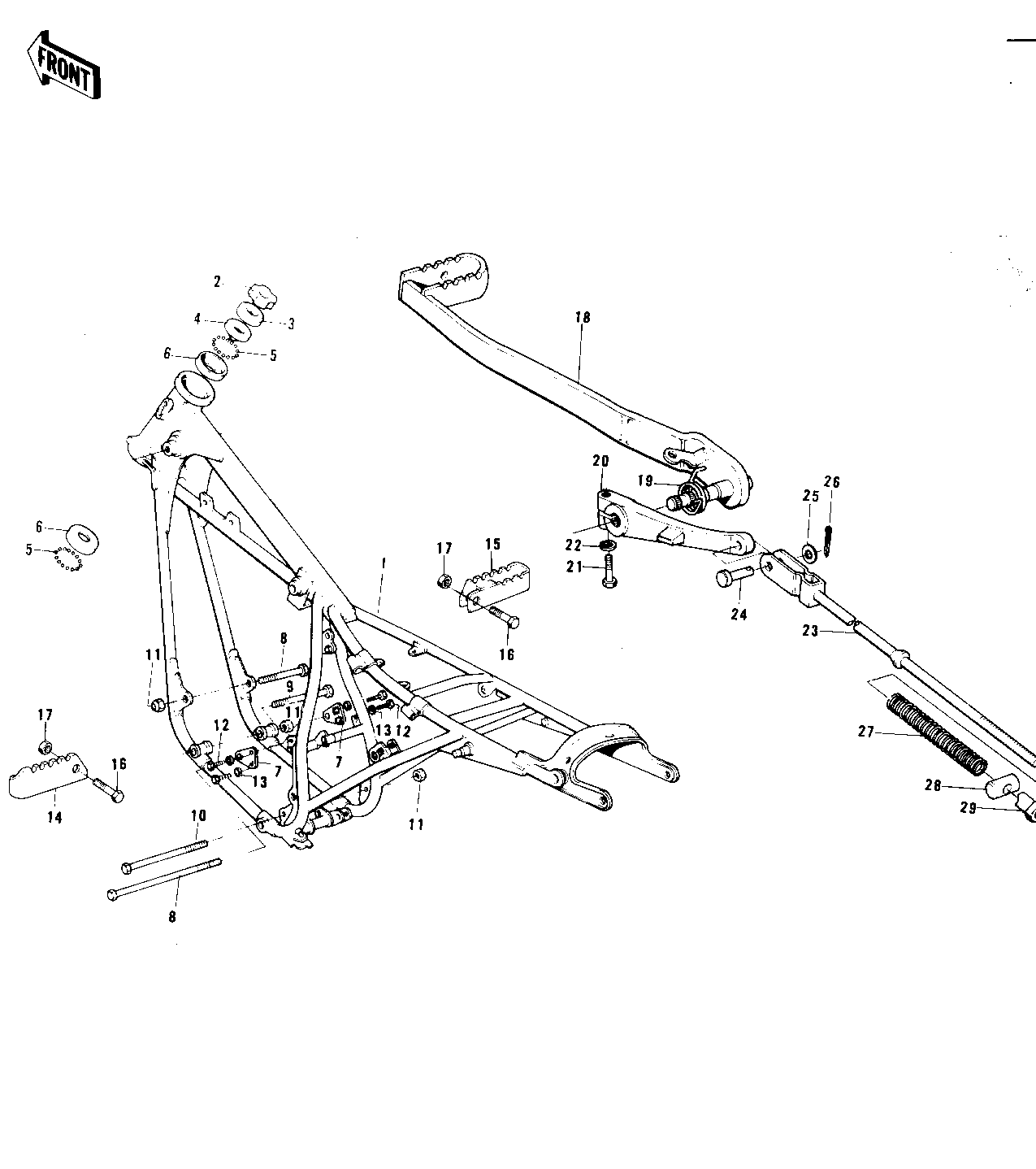

1974 F11-A - FRAME/FRAME FITTINGS/FOOTRESTS/BRAKE PED

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-070
NUT,STEERING STEM 2 92090-023
CAP,STEERING STEM 3 46098-014
CONE STERNG BERG UPP 4 92047-003
BALL STEEL 1/4' 5 600A0800
UNAVAILABLE IN PRICE BOOK 6 92048-003
PLATE-ENGINE MOUNT 7 32030-024
BOLT-HEX HEAD,10X136 8 113B10136
BOLT,HEX HEAD,10X215 9 113B10215
BOLT,HEX HEAD,10X117 10 92001-1246
NUT,10MM 11 92019-016
BOLT,8X20 12 115G0820
WASHER SPRING 8MM 13 461F0800
BAR,L.H FOOTREST 14 34028-013
BAR,R.H FOOTREST 15 34028-014
BOLT-SMALL-UPSET 16 115B0832
NUT,8MM 17 92019-018
PEDAL,BRAKE 18 43077-003
SPRING-BRAKE PEDAL 19 43005-019
LEVER-BRAKE PEDAL 20 42029-019
BOLT-UPSET 21 112G0625
BOLT-UPSET 21 112G0625
WASHER SPRING 6MM 22 461F0600
ROD-BRAKE 23 43011-011
PIN-BRAKE ROD 24 92043-065
WASHER PLAIN 6MM 25 410B0600
PIN COTTER 2.0X15 26 550D2015
SPRING,BRAKE ROD 27 43012-001
PIN-BRAKE ROD 28 92043-065
NUT-BRAKE ROD ADJUST 29 92015-042
