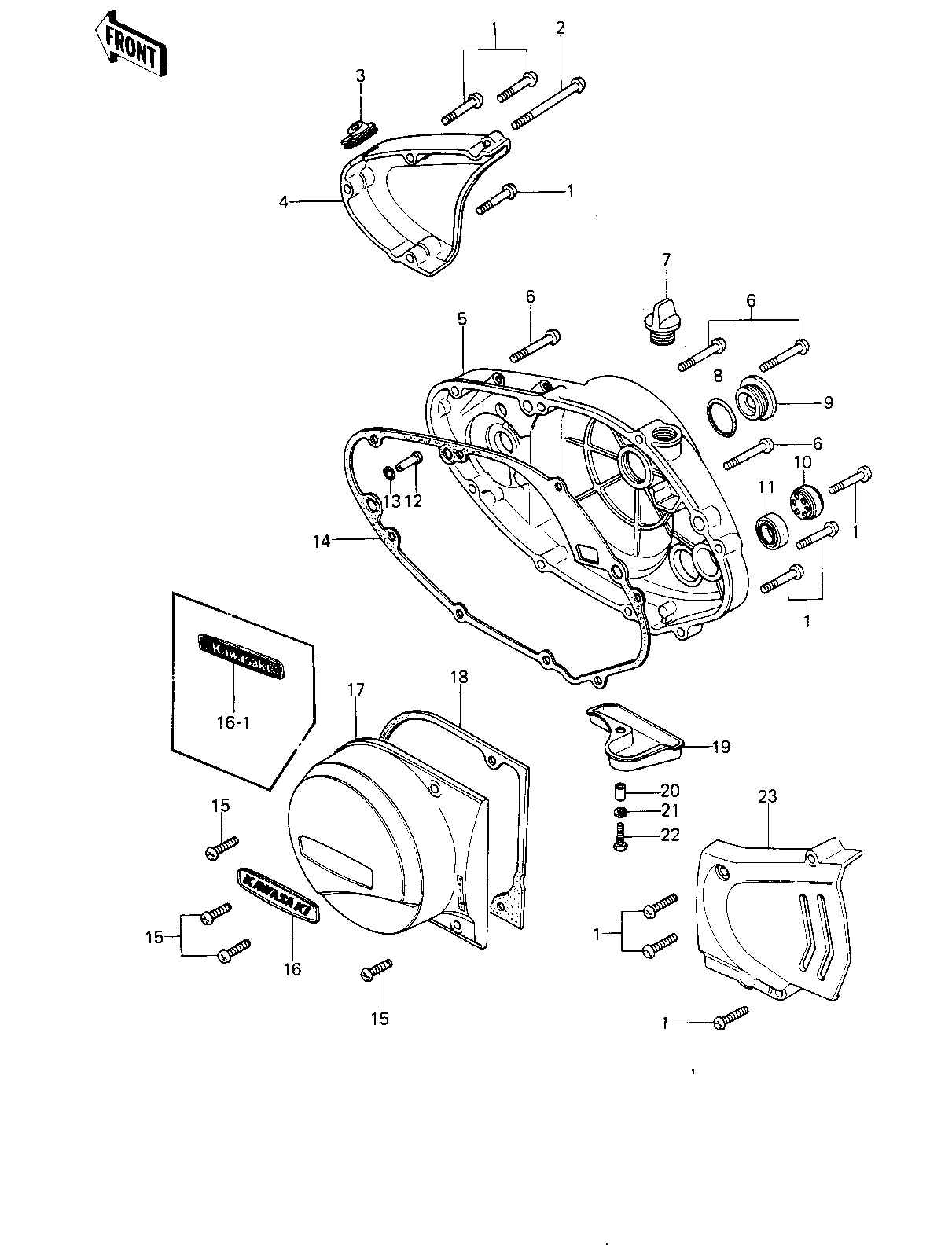

1978 KE250-B2 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630
SCREW PAN HEAD 6X70 2 220B0670
GROMMET 3 92071-097
COVER,OIL PUMP 4 14030-070-2H
COVER,R.H.ENGINE 5 14032-118-2H
SCREW PAN HEAD 6X40 6 220B0640
FILLER,OIL 7 16115-018
"O" RING,RELEASE PLUG 8 92055-091
PLUG,RELEASE 9 92067-024
GAUGE,OIL LEVEL 10 52015-004
OIL SEAL SB20285 11 92049-012
VALVE-CHECK 12 16128-006
"0" RING,CHECK VALVE 13 92055-037
GASKET,R.H.ENGINE COV 14 14046-036
SCREW PAN HEAD 6X22 15 220B0622
EMBLEM,ENGINE COVER 16 56018-1032 KE250-B1/B2
EMBLEM,ENGINE COVER 16-1 56018-1032 KE250-B3
COVER,L.H.ENGINE 17 14031-096-2H
GASKET,L.H.ENGINE COV 18 14045-030
COVER,RELEASE 19 14036-007
COLLAR 20 92027-241
WASHER SPRING 6MM 21 461F0600
BOLT 6X22 22 112B0622
COVER,CHAIN CASE 23 14026-036-2H
