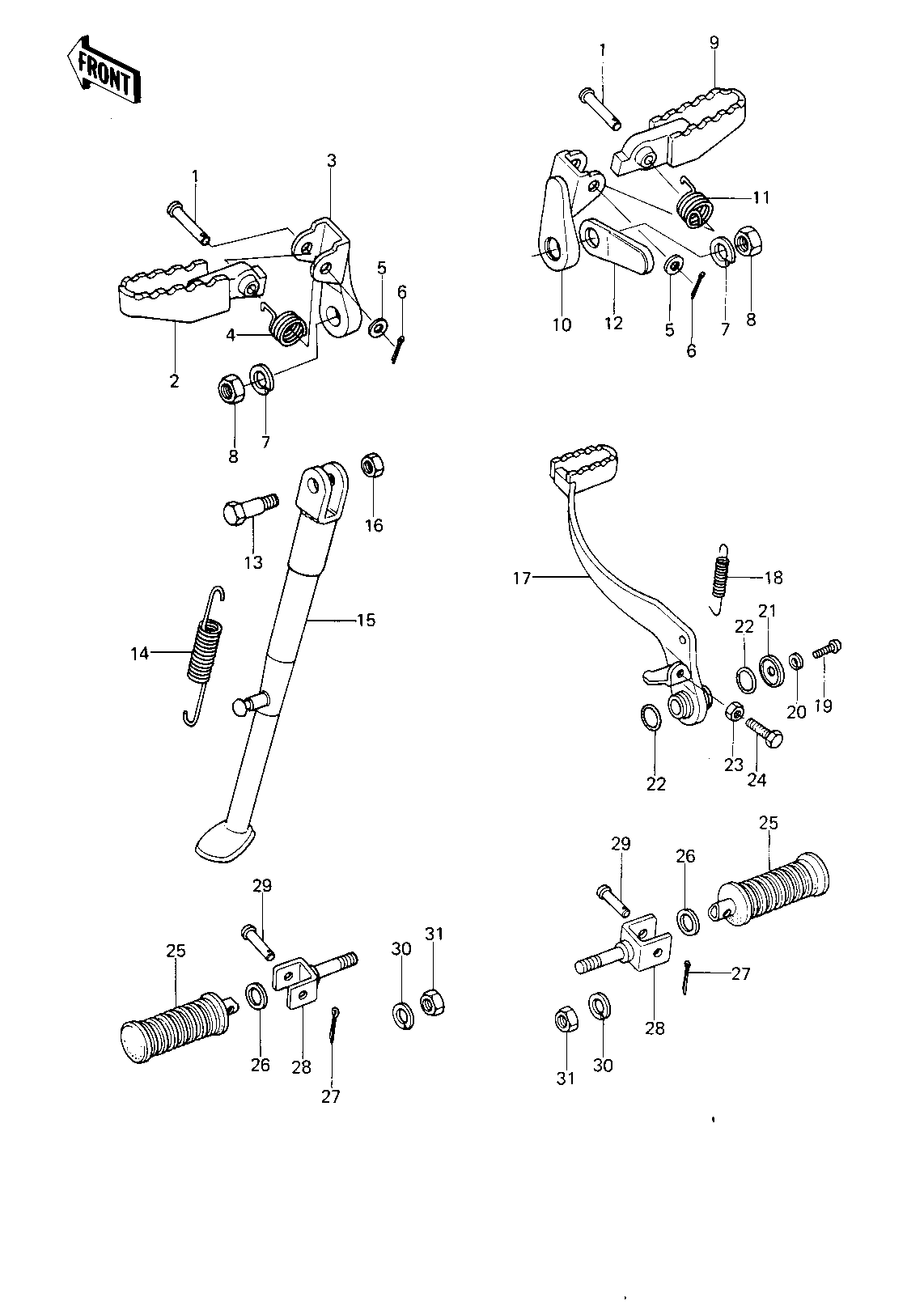

1978 KE250-B2 - FOOTRESTS/STAND/BRAKE PEDAL

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN,FOOTREST BAR FIT 1 92043-115
STEP,FOOTREST,L.H 2 34028-037
HOLDER,FOOTREST,L.H 3 34003-067
SPRING,L.H,FOOTREST 4 92081-1254
WASHER PLAIN 8MM 5 410B0800
PIN COTTER 2.5X16 6 550D2516
WASHER SPRING 14MM 7 461F1400
NUT 14MM 8 315B1400
STEP,FOOTREST,R.H 9 34028-038
HOLDER,FOOTREST,R.H 10 34003-068
SPRING,R.H,FOOTREST 11 92081-1255
PLATE,FOOTREST 12 13169-1018
BOLT, SIDE STAND FIT 13 92003-157
SPRING,SIDE STAND 14 34025-008
STAND-SIDE 15 34024-064
NUT 10MM 16 315B1000
PISTON,STD 17 13001-072
SPRING BRAKE PEDAL 18 43005-032
SCREW PAN HEAD 6X12 19 220B0612
WASHER SPRING 6MM 20 461F0600
WASHER,PLAIN,6MM 21 92022-284
"0" RING,16MM 22 670B2016
NUT 6MM 23 311B0600
BOLT-HEX HEAD,6X32 24 110N0632
RUBBER,FOOTREST 25 92076-027
WASHER-PLAIN (OPT) 26 92022-199
PIN,COTTER,2.0X12 27 550D2012
BRACKET,REAR FOOTREST 28 34029-011
PIN 29 92043-1464
WASHER SPRING 10MM 30 461F1000
NUT,10MM 31 314B1000
