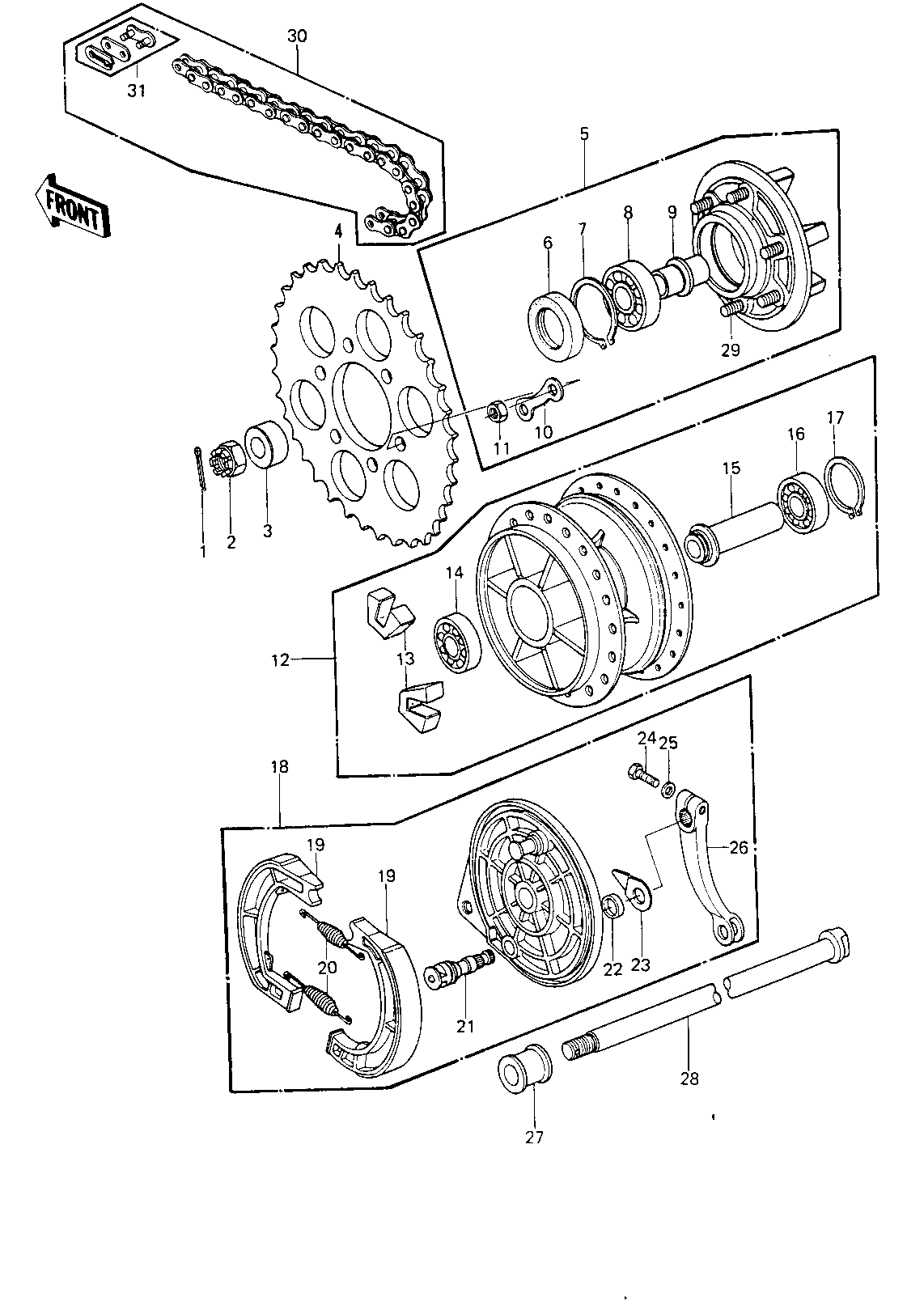

1979 KE250-B3 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035
NUT CASTLE,16MM 2 92015-055
COLLAR,REAR AXLE,L.H 3 42032-068
REAR SPROCKET,39T 4 42041-175
COUPLING ASSY,REAR HB 5 42008-030
OIL SEAL WTC35527 6 92052-006
RING,SNAP,56.2M/M 7 92033-1043
RING,SNAP,56.2M/M 7 92033-1043
BEARING BALL #6205 8 601B6205
SLEEVE,COUPLING 9 42036-023
WASHER LOCK 10 92088-007
NUT 10MM 11 42045-005
DRUM ASSY,REAR BRAKE 12 42005-052
DAMPER,REAR HUB SHOCK 13 42014-024
BEARING BALL #6303 14 601B6303
COLLAR,REAR HUB BEARG 15 42010-038
BEARING-BALL 16 601B6303U
CIRCLIP,47M/M 17 92033-1042
CIRCLIP,47M/M 17 92033-1042
PANEL-ASY,RR BRK 18 41035-1004
SHOE,BRAKE 19 42019-011
SPRING-BRAKE SHOE 20 42020-004
CAM SHAFT,REAR BRAKE 21 41050-1003
DUST SHIELD BRAKE CAM 22 41051-001
INDICATOR,FR BRK SHOE 23 41085-017
BOLT-UPSET 24 112G0625
WASHER PLAIN 6MM 25 410B0600
LEVER,REAR BRAKE CAM 26 42029-040
COLLAR,REAR AXLE,R.H 27 42032-069
AXLE,REAR 28 42031-053
STUD,REAR HUB COUPLNG 29 92004-061
DR CHAIN 520X98 30 92057-106 EK520SH
CHAIN JOINT 520 31 92058-1001
