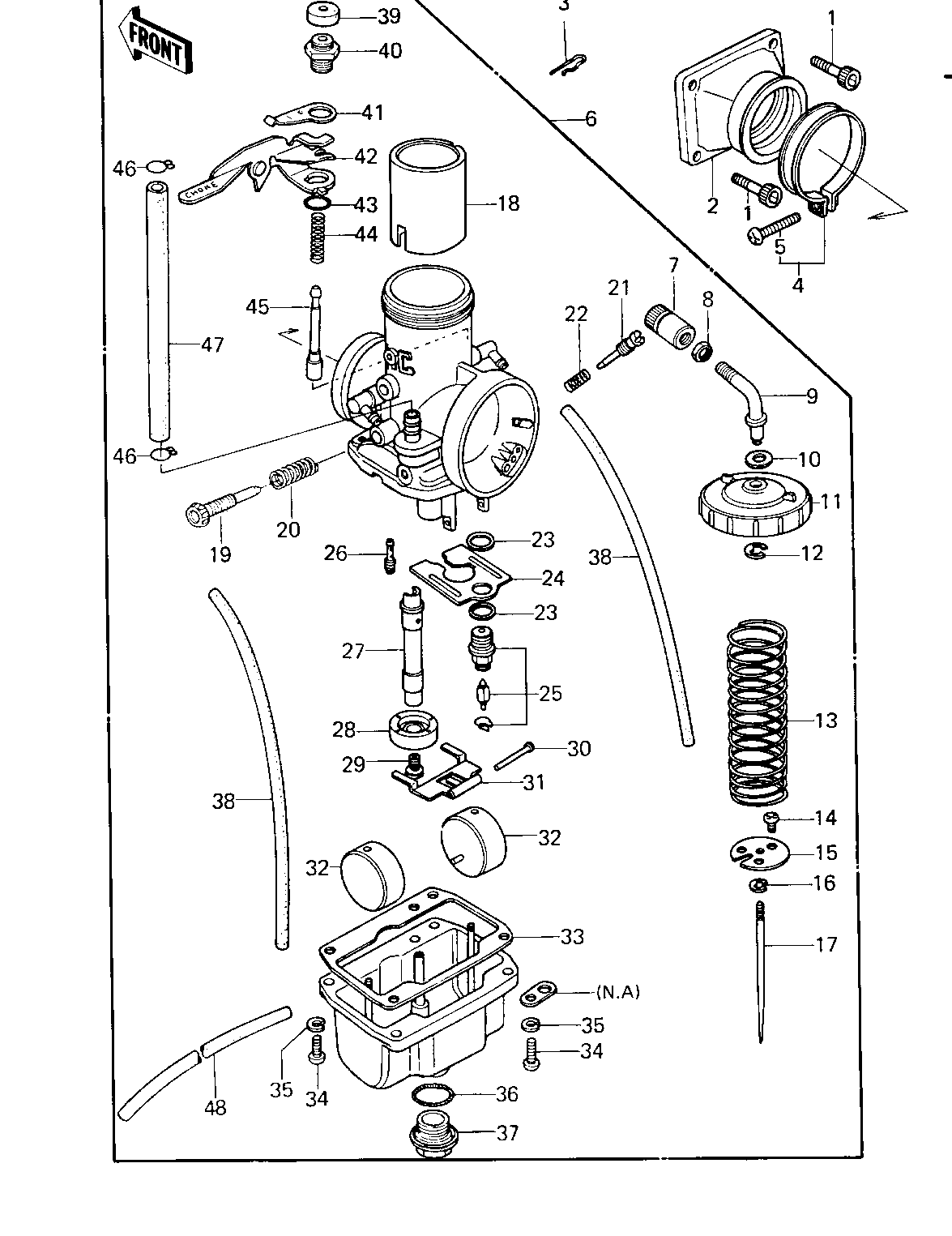

1980 KDX250 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,SOCKET,6X25,BLAC 1 120S0625 4
HOLDER,CARBURETOR 2 16065-1029 1
CIRCLIP 3 92036-018 1
CLAMP,CARBURETOR HLDR 4 92037-116 1
SCREW-PAN-CROS 5 220B0535 1
CARBURETOR ASSY 6 16001-1304 1
ADJUSTER,CABLE 7 16002-1006 1
NUT CABLE ADJUST LOCK 8 16003-004 1
GUIDE,CABLE 9 13070-1014 1
GASKET,CABLE GUIDE 10 11009-1191 1
TOP,MIXING CHAMBER 11 16004-1010 1
CIRCLIP,CABLE GUIDE 12 16008-011 1
SPRING,THROTTLE VALVE 13 16006-028 1
SCREW,4X5 14 92009-1037 1
SEAT,THROTTLE VALVE 15 16007-1007 1
CIRCLIP 16 16008-010 1
JET NEEDLE,6F21 17 16009-1067 1
VALVE ASSY,CA2.0 18 16025-1048 1
SCREW,THROTTLE STOP 19 16021-1024 1
SPRING,THRTL STP SCRW 20 92081-1200 1
SCREW 21 16014-006 1
SPRING-THR STOP SCREW 22 16022-007 1
GASKET,FLOAT VALVE 23 11009-1076 2
BAFFLE-CARB 24 16038-019 1
FLOAT VALVE ASSY 25 16030-020 1
PILOT JET #60A 26 92064-031 1
NEEDLE JET,R-2 27 16017-1066 1
HOLDER,NEEDLE JET 28 16065-1017 1
MAIN JET,#167.5R 29 92063-1021 1
MAIN JET,#172.5R 29 92063-1027 (1
MAIN JET,#170R 29 92063-1022 (1
MAIN JET,#165R 29 92063-1020 (1
MAIN JET,#162.5R 29 92063-1019 (1
PIN,FLOAT 30 16032-008 1
ARM,FLOAT 31 16055-009 1
FLOAT 32 16031-029 2
GASKET,FLOAT CHAMBER 33 16019-028 1
UNAVAILABLE IN PRICE BOOK 34 214B0516A 4
WASHER SPRING 5MM 35 461F0500 4
GASKET-COVER 36 16038-009 1
COVER,MAIN JET 37 16049-006 1
TUBE,3.5X6.5X410 38 92059-1142 2
CAP,STARTER PLUNGER 39 16039-015 1
CAP,STARTER PLUNGER 40 16012-019 1
SPRING PLATE,STARTER 41 13169-1052 1
LEVER,STARTER PLUNGER 42 13168-1048 1
"O" RING,9MM 43 670B1509 1
SPRING,STRTR PLUNGER 44 92081-1181 1
PLUNGER ASSY,STARTER 45 16016-1008 1
CLAMP,HOSE 46 92037-1184 2
TUBE,7.5X12.5X225 47 92059-1123 1
TUBE,3.5X6.5X290,BRTH 48 92059-1017 1
