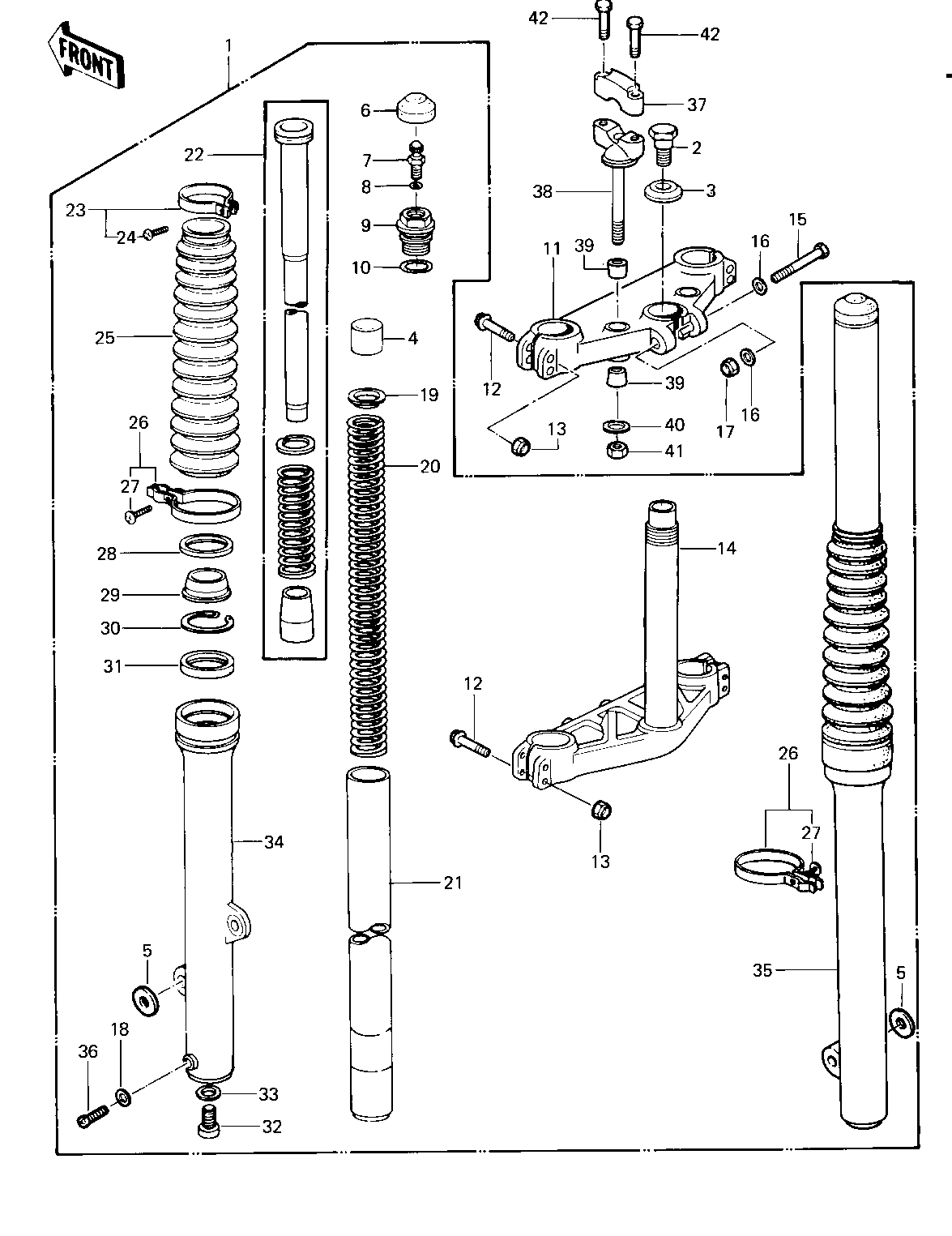

1980 KDX250 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-4001 1
BOLT,FORK TOP 2 44041-065 1
WASHER 3 44043-052 1
SPACER,FORK SPRING 4 92026-4002 2
WASHER,FORK 5 92022-4006 2
CAP,RUBBER,FORK TOP 6 44029-1009 2
VALVE ASSY,AIR 7 16126-1003 2
"0" RING,AIR VALVE 8 92055-1018 2
CAP,FORK TOP 9 44029-1008 2
"0" RING,FORK TOP CAP 10 92055-1050 2
HEAD,STEERING STEM 11 44039-4004 1
BOLT,HEX HEAD,8X53 12 92001-1060 8
NUT,8M/M 13 44007-1002 8
HOLDER-FORK UNDER 14 44037-1066 1
BOLT,HEX HEAD,8X57 15 92001-1141 1
WASHER PLAIN 8MM 16 410B0800 2
NUT,LOCK,8MM 17 92015-1124 1
GASKET FORK DRAIN PLG 18 44045-002 2
GUIDE,FORK SPRING 19 44028-1003 2
SPRING,FORK INNER 20 44026-4001 2
TUBE,FORK INNER 21 44013-4001 2
CYLINDER-FORK 22 44022-4001 2
BAND,BOOTS 23 92072-1008 2
SCREW-PAN-CROS 24 220B0420 2
BOOT,FORK 25 49006-4002 2
CLAMP,BOOT,L.H 26 92072-1026 2
SCREW PAN HEAD 6X20 27 220B0620 2
CASE,DUST SHIELD 28 32099-1010 2
DUST SHIELD,FORK OU T 29 92093-1022 2
SNAP RING,FORK OUT TU 30 92033-1035 2
OIL SEAL,FORK OUT TUB 31 92049-1042 2
BOLT,FORK CYLINDER 32 92001-1186 2
GASKET,FORK CYLINDER 33 11009-1127 2
TUBE,LH,FORK OUTER 34 44005-4001 1
TUBE,RH,FORK OUTER 35 44006-4001 1
SCREW PAN HEAD 4X8 36 220B0408 2
HOLDER-HANDLEBAR 37 46012-008 2
HOLDER-HANDLEBAR LOW 38 46012-010 2
DAMPER RUBBER,HANDLE 39 92075-275 4
DAMPER RUBBER,HANDLE 39 92075-275 4
WASHER-HANDLEBAR FIT 40 92022-196 2
NUT,LOCK,10MM 41 92019-021 2
BOLT 8X38 42 92001-1405 4
