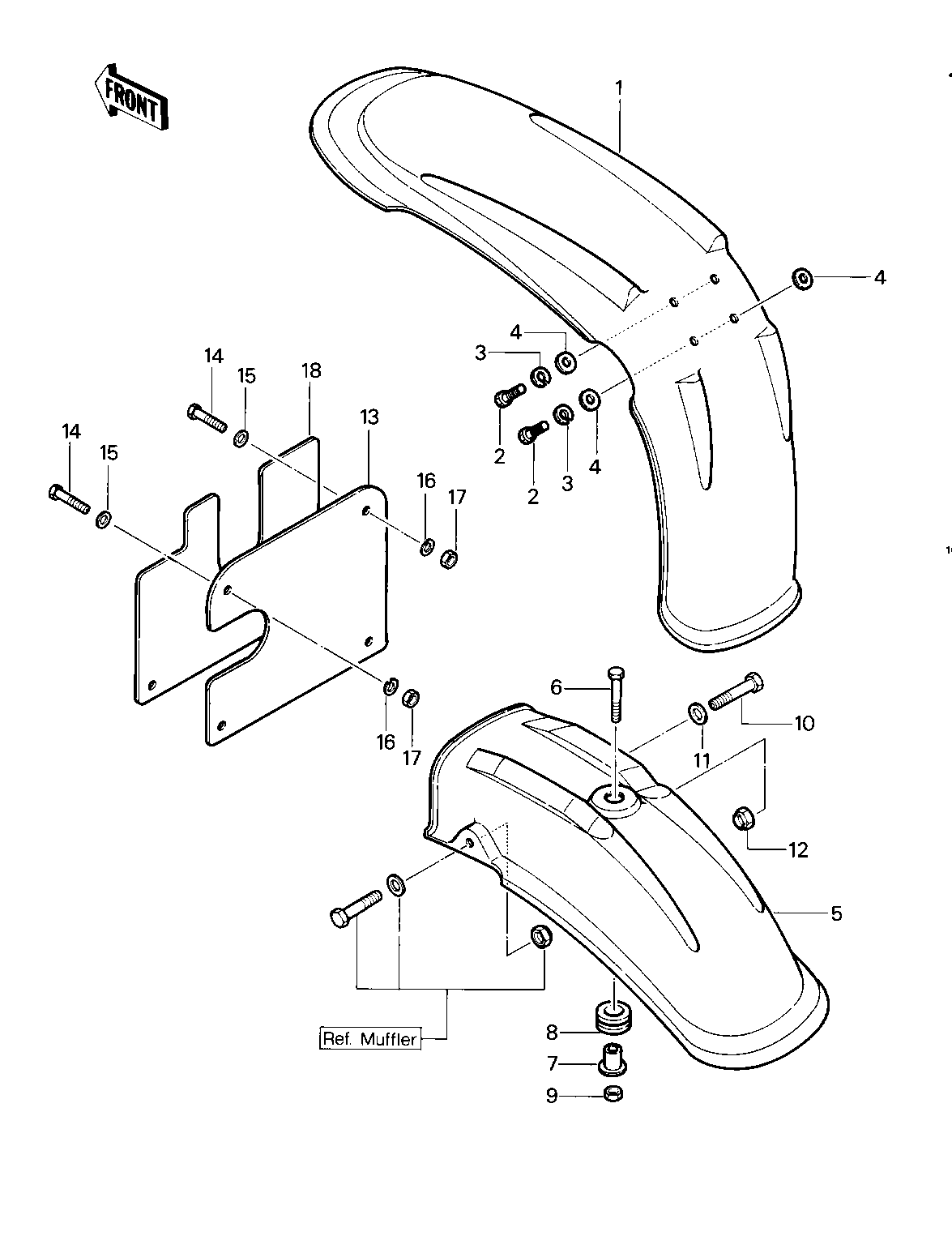

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,LIME GREEN 1 35004-4001-7F 1
BOLT-UPSET 2 112G0618 4
WASHER SPRING 6MM 3 461F0600 4
WASHER 6.5X20X1.6T 4 92022-125 6
FENDER-RR,L.GREEN 5 35022-4001-7F 1
BOLT-UPSET,6X20 6 112G0620 1
COLLAR 7 92027-194 1
DAMPER RUBBER,CASE 8 92075-222 1
NUT 9 92019-008 1
BOLT 10 114G0836 1
WASHER CHNG DRUM LEV 11 92022-091 1
NUT,LOCK,8MM 12 92015-1124 1
FLAP,FENDER 13 35019-4001 1
BOLT-UPSET,6X12 14 112G0612 2
WASHER-PLAIN,7MM 15 92022-240 2
WASHER SPRING 6MM 16 461F0600 2
NUT 6MM 17 311B0600 2
COVER,AIR BOX 18 14025-4005 1
