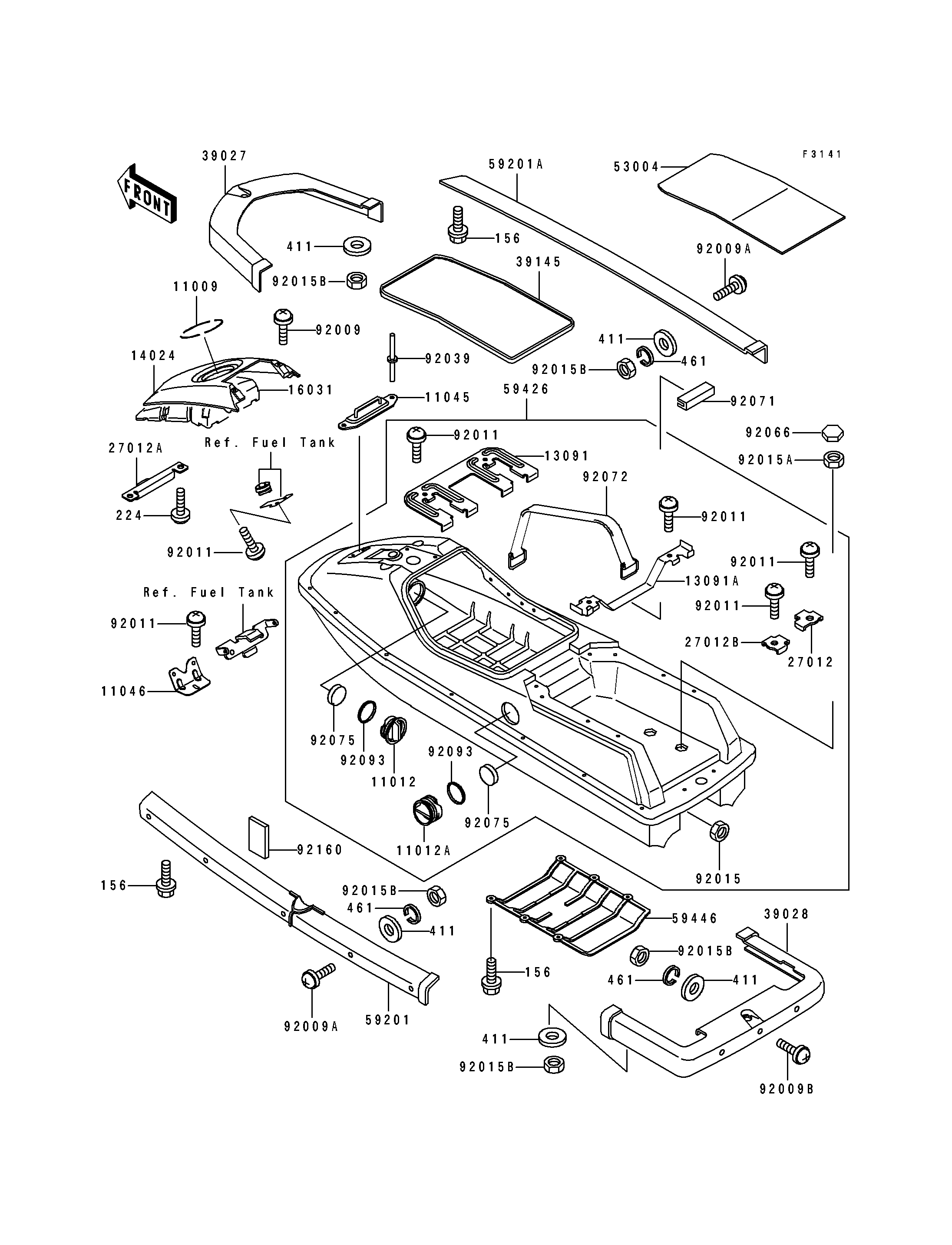

1991 650 SX - Hull

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CAP 11009 11009-3732 3
CAP 11012 11012-3708 1
CAP 11012A 11012-3746 1
BRACKET,FRONT DECK 11045 11045-3730 1
BRACKET,CENTER 11046 11046-3836 1
HOLDER 13091 13091-3722 1
HOLDER 13091A 13091-3725 1
COVER,TANK CAP,M.M.BLUE 14024 14024-3789-TA 1
FLOAT 16031 16031-3784 1
HOOK 27012 27012-3713 1
HOOK,FRONT DECK 27012A 27012-3755 1
HOOK 27012B 27012-501 1
BUMPER-FRONT 39027 39027-3706 1
BUMPER-REAR 39028 39028-3707 1
TRIM-SEAL 39145 39145-3706 1
MAT,DECK 53004 53004-3722 1
BUMPER,SIDE,LH 59201 59201-3714 1
BUMPER,SIDE,RH 59201A 59201-3715 1
HULL-COMP,JET WHITE 59426 59426-3782-8C 1
COVER-JET PUMP 59446 59446-3705 1
SCREW,5X16 92009 92009-3726 2
SCREW,6X23.5 92009A 92009-3745 10
SCREW,6X20 92009B 92009-3781 3
SCREW,TAPPING 92011 92011-561 9
NUT,20MM 92015 92015-3738 1
NUT,8MM 92015A 92015-3744 4
NUT,CAP,6MM 92015B 92015-3755 27
RIVET 92039 92039-3702 2
PLUG 92066 92066-3713 2
GROMMET 92071 92071-3755 1
BAND,L=384 92072 92072-3713 2
DAMPER 92075 92075-3719 2
SEAL,OSR70X82X7.5 92093 92093-3704 2
DAMPER 92160 92160-3767 4
BOLT-WP,6X20 156 156R0620 14
SCREW-PAN-WP-CROS,5X12 224 224R0512 2
WASHER-PLAIN,6MM 411 411S0600 27
WASHER-SPRING,6MM 461 461S0600 15
