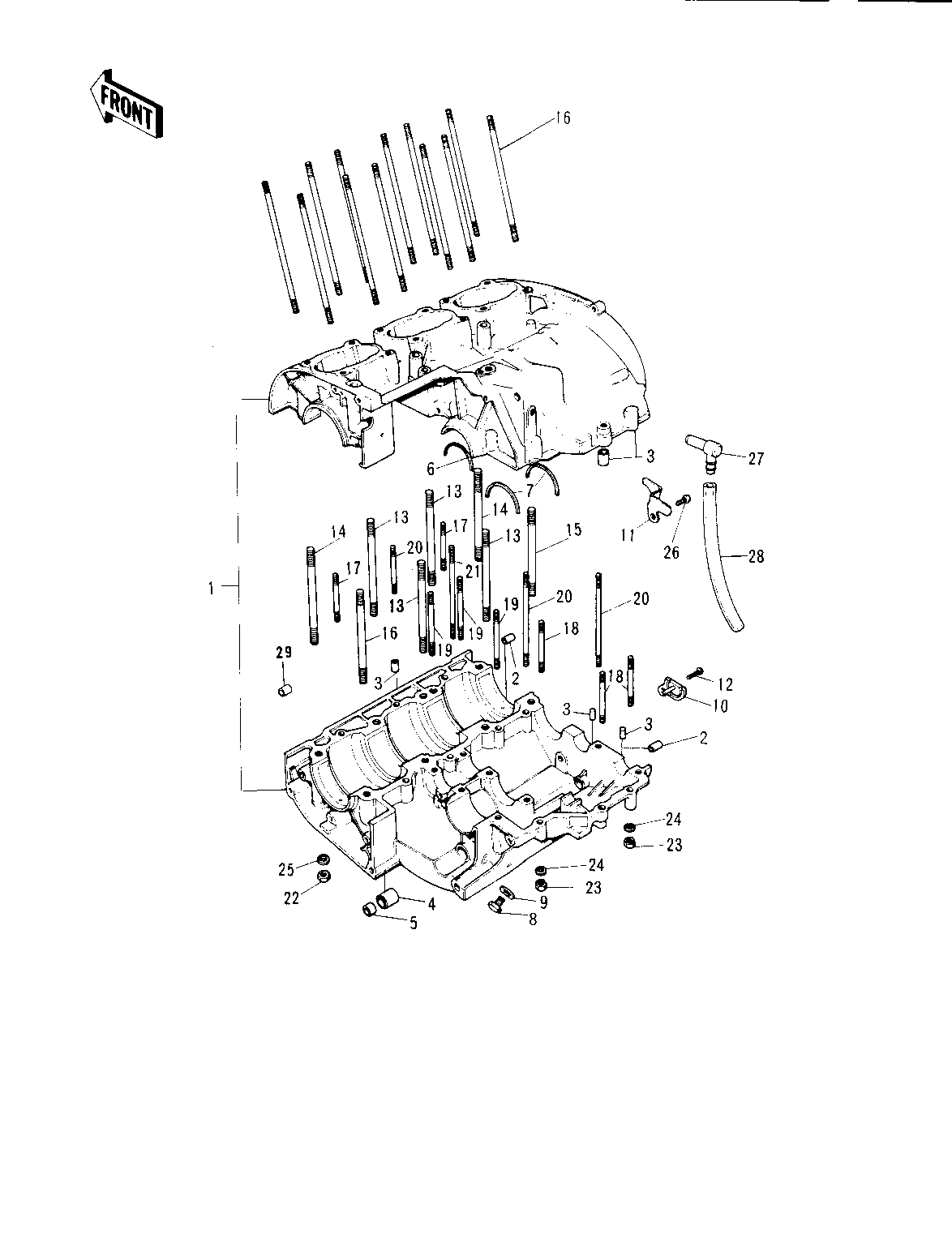

1974 Mach I - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKCASE SET 1 14001-049 S1-A/B
CRANKCASE SET 1 14001-058 S1-C,KH250-A5
PIN,DOWEL,10X8.2X14 2 92043-1037
PIN DOWEL 6MM 3 92042-016
BUSH CHANGE PEDAL SHT 4 92028-071
OIL SEAL SB12205 5 92049-004
RING-BEARING SET 6 14013-013
RING BEARING SETTING 7 14013-004
PLUG OIL DRAIN 8 92067-001
GASKET CHECK VALVE 9 92065-058
RECEIVER OIL 10 14015-001
RECEIVER-OIL 11 14015-003
SCREW CNTSNK HD 6X16 12 221B0616
STUD 10X50 13 172G1050 S1-A/B
STUD,10X55 13 172G1055 S1-C,KH250-A5
STUD,10X70 14 172G1070
STUD,10X80 15 172G1080
STUD 8X115 16 172G08115
STUD 6X22 17 172G0622
STUD 6X35 18 172G0635
STUD 6X50 19 172G0650
STUD 6X50 20 172G0650
STUD,6X65 21 172G0665
NUT,10MM 22 317B1000
NUT 6MM 23 311B0600
WASHER SPRING 6MM 24 461F0600
WASHER SPRING 10MM 25 461F1000
SCREW PAN HEAD 6X10 26 220B0610
BREATHER 27 14069-003
PIPE-BREATHER 28 92059-061
PIN-DOWEL 29 92042-007 S1-C,KH250-A5
