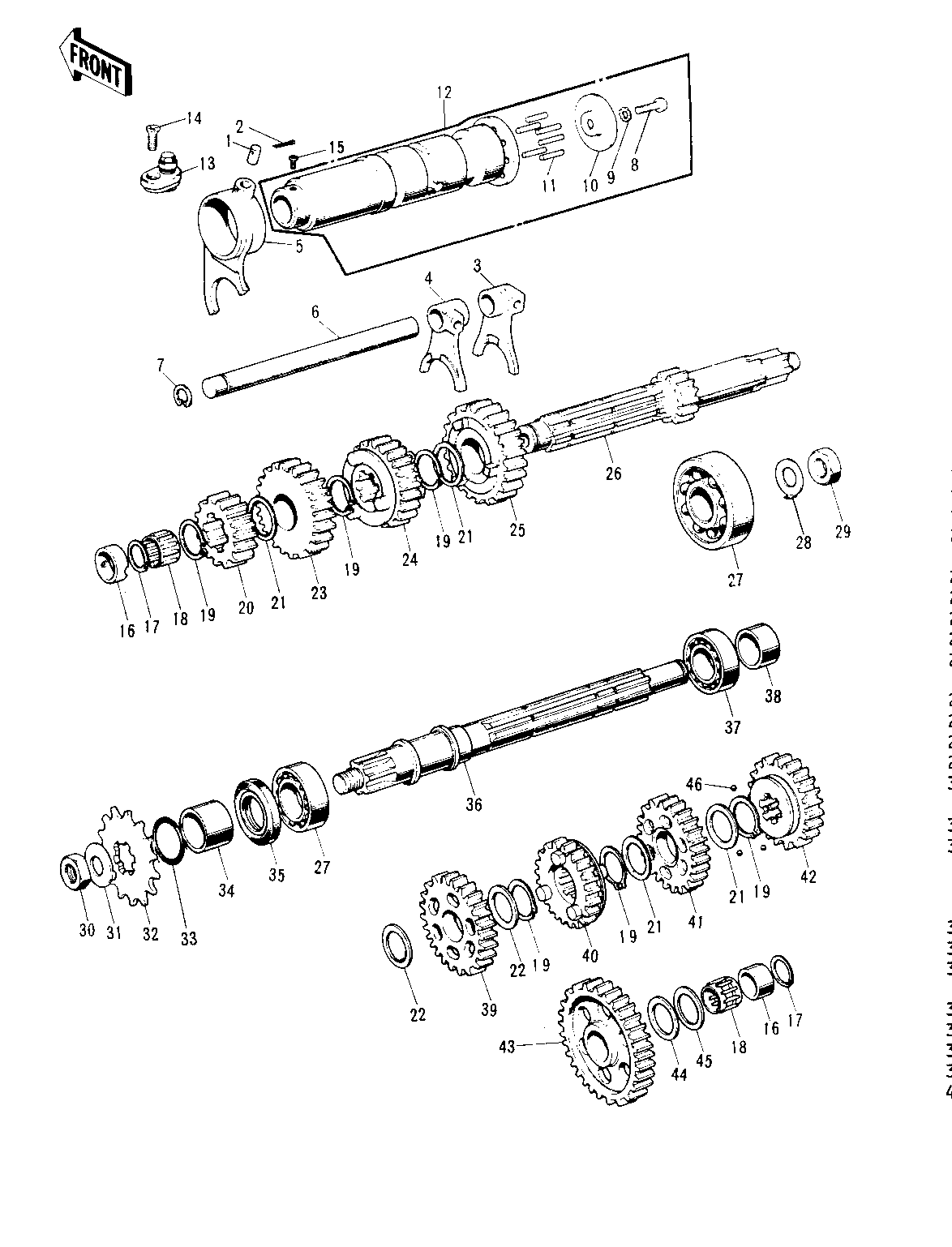

1976 KH250-A5 - TRANSMISSION/CHANGE DRUM
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DOWEL PIN,8X18 | 1 | 92042-021 | |||
PIN COTTER 3.0X20 | 5 | 550D3020 | |||
SELECTOR FORK,LOW | 3 | 13140-053 | |||
SELECTOR FORK,2ND&3RD | 4 | 13140-054 | |||
FORK-SELECTOR,4TH&TOP | 5 | 13140-037 | |||
ROD-SHIFT | 6 | 13209-006 | |||
CIRCLIP 10MM | 7 | 482J0100 | |||
SCREW PAN HEAD 6X12 | 8 | 220B0612 | S1-A/B | ||
SCREW PAN HEAD 6X14 | 8 | 220B0614 | S1-C,KH250-A5 | ||
WASHER LOCK 6MM | 9 | 464H0600 | |||
PLATE CHANGE DRUM PIN | 10 | 13142-008 | |||
PIN GEAR CHANGE DRUM | 11 | 92042-014 | |||
DRUM ASSY-GEAR CHANGE | 12 | 13239-003 | |||
SWITCH,NEUTRAL | 13 | 13151-021 | |||
SCREW CNTSNK HD 6X16 | 14 | 221B0616 | |||
UNAVAILABLE IN PRICE BOOK | 15 | 221B0406A | |||
BUSH TRANSMMISION SFT | 16 | 92028-043 | |||
CIRCLIP 17MM | 17 | 92033-009 | |||
BEARING NEEDLE | 18 | 92046-005 | |||
CIRCLIP,25MM | 19 | 92033-025 | |||
2ND GEAR-DRIVE SHAFT | 20 | 13130-028 | |||
WASHER-LOCK | 21 | 92024-034 | |||
WASHER-LOCK | 22 | 92024-035 | |||
TOP GEAR-DRIVE SHAFT | 23 | 13136-038 | |||
3RD GEAR-DRIVE SHAFT | 24 | 13132-027 | |||
4TH GEAR-DRIVE SHAFT | 25 | 13134-013 | |||
SHAFT-DRIVE | 26 | 13127-034 | |||
BEARING BALL 6205NX3 | 27 | 92045-010 | |||
WASHER-LOCK,14MM | 28 | 92024-046 | |||
NUT 14MM | 29 | 315B1400 | |||
NUT 18MM | 30 | 92015-019 | |||
WASHER,LOCK,18MM | 31 | 92024-067 | |||
ENGINE SPROCKET 14T | 32 | 13144-035 | STD,S1-A | ||
ENGINE SPROCKET 14T | 32 | 13144-017 | STD,S1-B/C,KH250-A5 | ||
ENGINE SPROCKET 15T | 32 | 13144-030 | OPT,S1-A | ||
ENGINE SPROCKET 15T | 32 | 13144-025 | OPT,S1-B/C,KH250-A5 | ||
"O" RING | 33 | 92055-035 | |||
SPACER-ENG SPROCKET | 34 | 92026-1024 | |||
OIL SEAL SC325210 | 35 | 92050-024 | |||
SHAFT,OUTPUT | 36 | 13128-5004 | |||
BEARING BALL #6005 | 37 | 601B6005 | |||
COLLAR | 38 | 92027-135 | |||
2ND GEAR-OUTPUT SHAFT | 39 | 13131-034 | |||
TOP GEAR-OUTPUT SHAFT | 40 | 13137-022 | |||
3RD GEAR-OUTPUT SHAFT | 41 | 13133-027 | |||
4TH GEAR-OUTPUT SHAFT | 42 | 13135-017 | |||
LOW GEAR-OUTPUT SHAFT | 43 | 13129-038 | |||
WASHER THRUST | 44 | 92026-021 | |||
WASHER 17MM | 45 | 92022-075 | |||
BALL STEEL 5/32' | 46 | 600A0500 |
