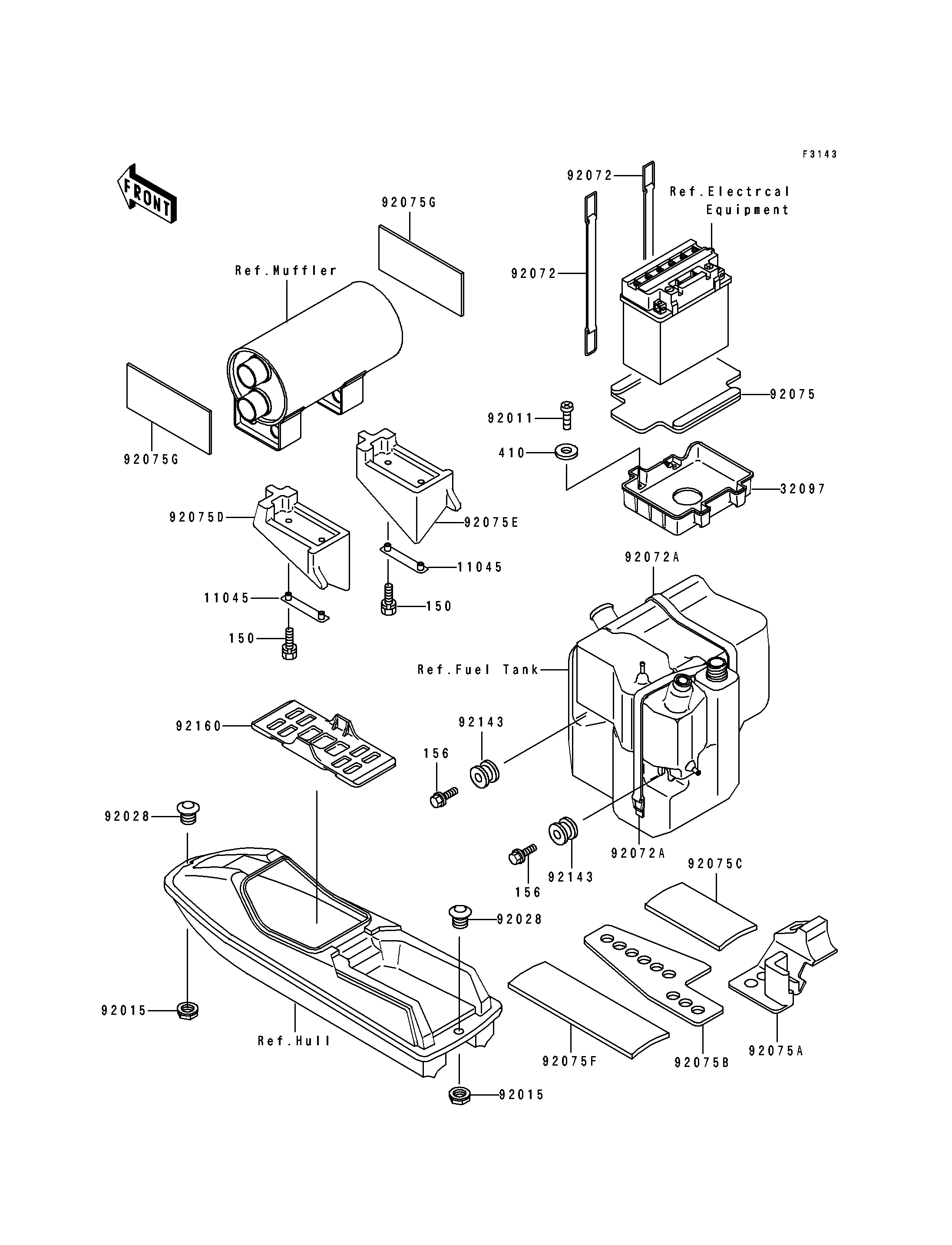

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11045 | 11045-3764 | 2 | ||
CASE-BATTERY | 32097 | 32097-3702 | 1 | ||
SCREW,TAPPING | 92011 | 92011-561 | 4 | ||
NUT | 92015 | 92015-3779 | 2 | ||
BUSHING | 92028 | 92028-3734 | 2 | ||
BAND,BATTERY,L=366 | 92072 | 92072-3706 | 2 | ||
BAND,L=544 | 92072A | 92072-3709 | 2 | ||
DAMPER,BATTERY | 92075 | 92075-3714 | 1 | ||
DAMPER,FUEL TANK,RR | 92075A | 92075-3754 | 1 | ||
DAMPER,FUEL TANK,CNT | 92075B | 92075-3755 | 1 | ||
DAMPER,FUEL TANK,RH | 92075C | 92075-3756 | 1 | ||
DAMPER | 92075D | 92075-3763 | 1 | ||
DAMPER | 92075E | 92075-3764 | 1 | ||
DAMPER,FUEL TANK | 92075F | 92075-521 | 1 | ||
DAMPER,MUFFLER | 92075G | 92075-522 | 2 | ||
COLLAR | 92143 | 92143-3705 | 2 | ||
DAMPER | 92160 | 92160-3711 | 1 | ||
BOLT-WS,6X22 | 150 | 150R0622 | 4 | ||
BOLT-WP,6X22 | 156 | 156R0622 | 2 | ||
WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 |
BRACKET | |
REF # | 11045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CASE-BATTERY | |
REF # | 32097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,TAPPING | |
REF # | 92011 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,BATTERY,L=366 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=544 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,BATTERY | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,RR | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,CNT | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK,RH | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,FUEL TANK | |
REF # | 92075F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,MUFFLER | |
REF # | 92075G |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WS,6X22 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-WP,6X22 | |
REF # | 156 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,6MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
