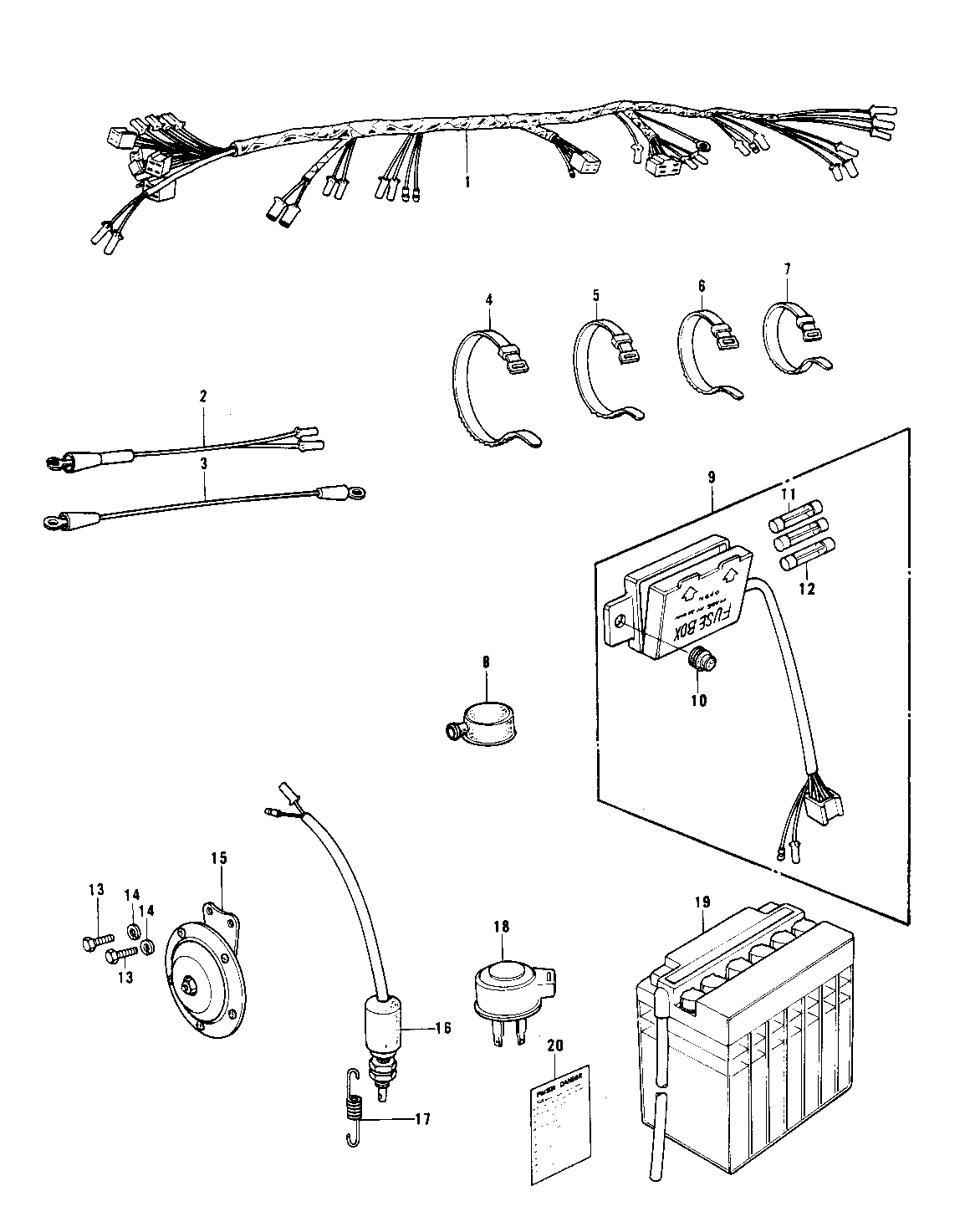

1976 KH250-A5 - CHASSIS ELECTRICAL EQUIPMENT (KH250-A5)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WIRING HARNESS,MAIN | 1 | 26001-134 | |||
WIRE,BATTERY LEAD | 2 | 26010-033 | |||
WIRE BATTERY GROUND | 3 | 26010-017 | |||
BAND,LONG | 4 | 92072-032 | |||
BAND,WIRING HARNESS | 5 | 92072-056 | |||
BAND,MIDDLE | 6 | 92072-031 | |||
BAND,SHORT | 7 | 92072-030 | |||
CAP BAT TERMINAL RUBB | 8 | 92073-001 | |||
FUSE ASSY | 9 | 26004-035 | |||
DAMPER RUBBER,FUSE | 10 | 92075-279 | |||
FUSE-20A | 11 | 26006-005 | |||
FUSE 10A | 12 | 26006-003 | |||
BOLT-SMALL-UPSET,8X16 | 13 | 115G0816 | |||
WASHER SPRING 8MM | 14 | 461F0800 | |||
HORN | 15 | 27003-066 | |||
HORN | 15 | 27003-1006 | |||
SWITCH-BRAKE LAMP | 16 | 27010-015 | |||
SPRING-BRAKE LAMP SW | 17 | 27011-013 | |||
RELAY-TURN SIGNAL | 18 | 27002-011 | |||
FB BAT 12N5.5-4A | 19 | 26012-022 | 12N5.5-4A | ||
LABEL-WARNING,BATTERY | 20 | 56040-1036 |
WIRING HARNESS,MAIN | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WIRE,BATTERY LEAD | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WIRE BATTERY GROUND | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BAND,LONG | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BAND,WIRING HARNESS | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BAND,MIDDLE | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BAND,SHORT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
CAP BAT TERMINAL RUBB | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
FUSE ASSY | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
DAMPER RUBBER,FUSE | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
FUSE-20A | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
FUSE 10A | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT-SMALL-UPSET,8X16 | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HORN | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
HORN | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SWITCH-BRAKE LAMP | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SPRING-BRAKE LAMP SW | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
RELAY-TURN SIGNAL | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
FB BAT 12N5.5-4A | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS | 12N5.5-4A |
LABEL-WARNING,BATTERY | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
