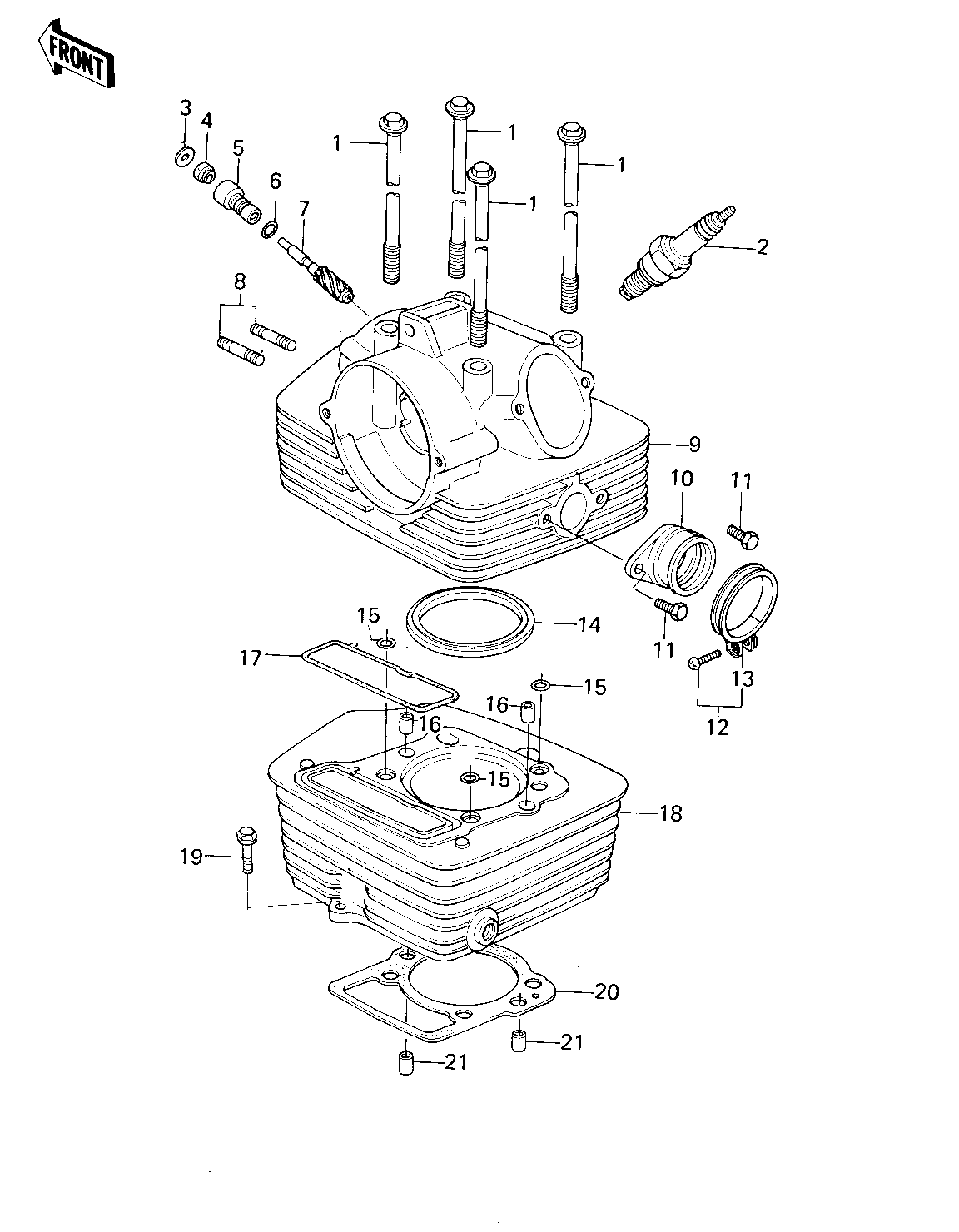

1978 KLR250 - CYLINDER HEAD/CYLINDER ('78-'79 KL250-A1
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,8X233 | 1 | 92003-220 | 4 | ||
SPARK PLUG B7ES | 2 | B7ES | 1 | ||
GASKET,TACHO GEAR | 3 | 92065-104 | 1 | ||
OIL SEAL | 4 | 92050-075 | 1 | ||
GUIDE,TACHOMETER GEAR | 5 | 92087-011 | 1 | ||
RING-O,10MM | 6 | 92055-1149 | 1 | ||
GEAR,TACHOMETER | 7 | 13223-012 | 1 | ||
STUD,6X27 | 8 | 92004-066 | 2 | ||
HEAD ASSY,CYLINDER | 9 | 11002-5014 | 1 | ||
HOLDER,CARBURETOR | 10 | 16065-1003 | 1 | ||
BOLT,HEX HEAD,6X14 | 11 | 92001-121 | 2 | ||
CLAMP | 12 | 92037-200 | 1 | ||
SCREW-PAN-CROS,5X25 | 13 | 220B0525 | 1 | ||
GASKET,CYLINDER HEAD | 14 | 11004-1002 | 1 | ||
RING-O,10MM | 15 | 92055-1149 | 3 | ||
PIN,DOWEL,10X8.2X14 | 16 | 92043-1037 | 2 | ||
"0" RING | 17 | 92055-105 | 1 | ||
CYLINDER | 18 | 11005-1004 | 1 | ||
BOLT | 19 | 92003-202 | 1 | ||
GASKET,CYLINDER BASE | 20 | 11009-043 | 1 | ||
PIN,DOWEL,10X8.2X14 | 21 | 92043-1037 | 2 |
