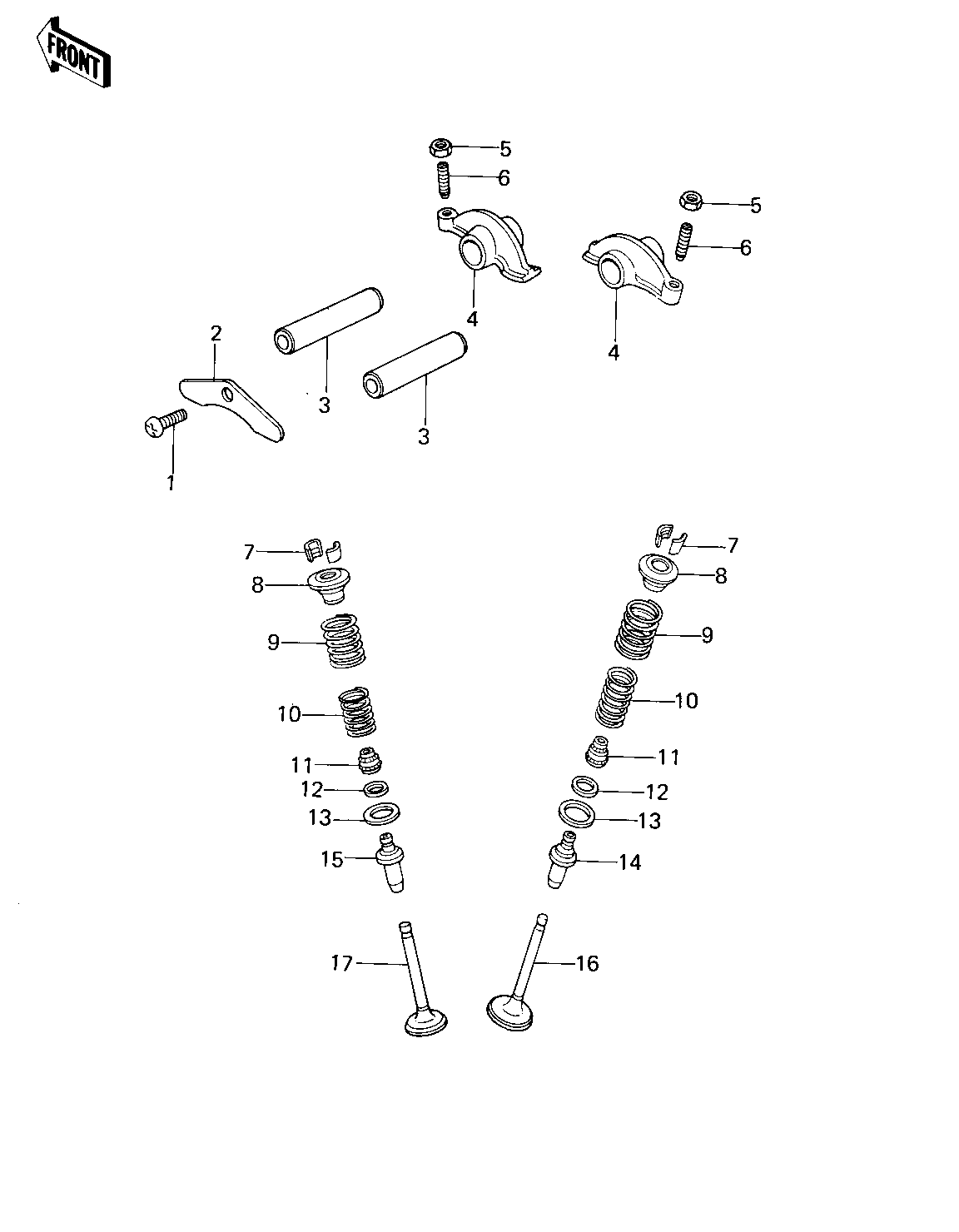

1978 KLR250 - ROCKER ARMS/VALVES ('78-'79 KL250-A1/A1A

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X14 1 220B0614 1
PLATE,POSITIONING 2 14014-034 1
SHAFT,ROCKER ARM 3 12020-004 2
ARM,ROCKER 4 12016-012 2
NUT,ROCKER ARM FITTNG 5 92016-061 2
SCREW,SLOTTED,ROCKER 6 92013-009 2
SPLIT KEEPER 7 12011-004 4
RETAINER,VALVE SPRING 8 12009-006 2
SPRING,OUTER VALVE 9 12007-013 2
SPRING,INNER VALVE 10 12007-014 2
OIL SEAL,RV37129.5 11 92049-016 2
SEAT,VLV INNER SPRING 12 12010-006 2 O.D.=23
SEAT,VLV OUTER SPRING 13 12010-005 2 O.D.=31
GUIDE,INLET VALVE 14 12013-003 1
GUIDE,EXHAUST VALVE 15 49002-1010 1
VALVE,INLET 16 12004-018 1
VALVE,EXHAUST 17 12005-010 1
