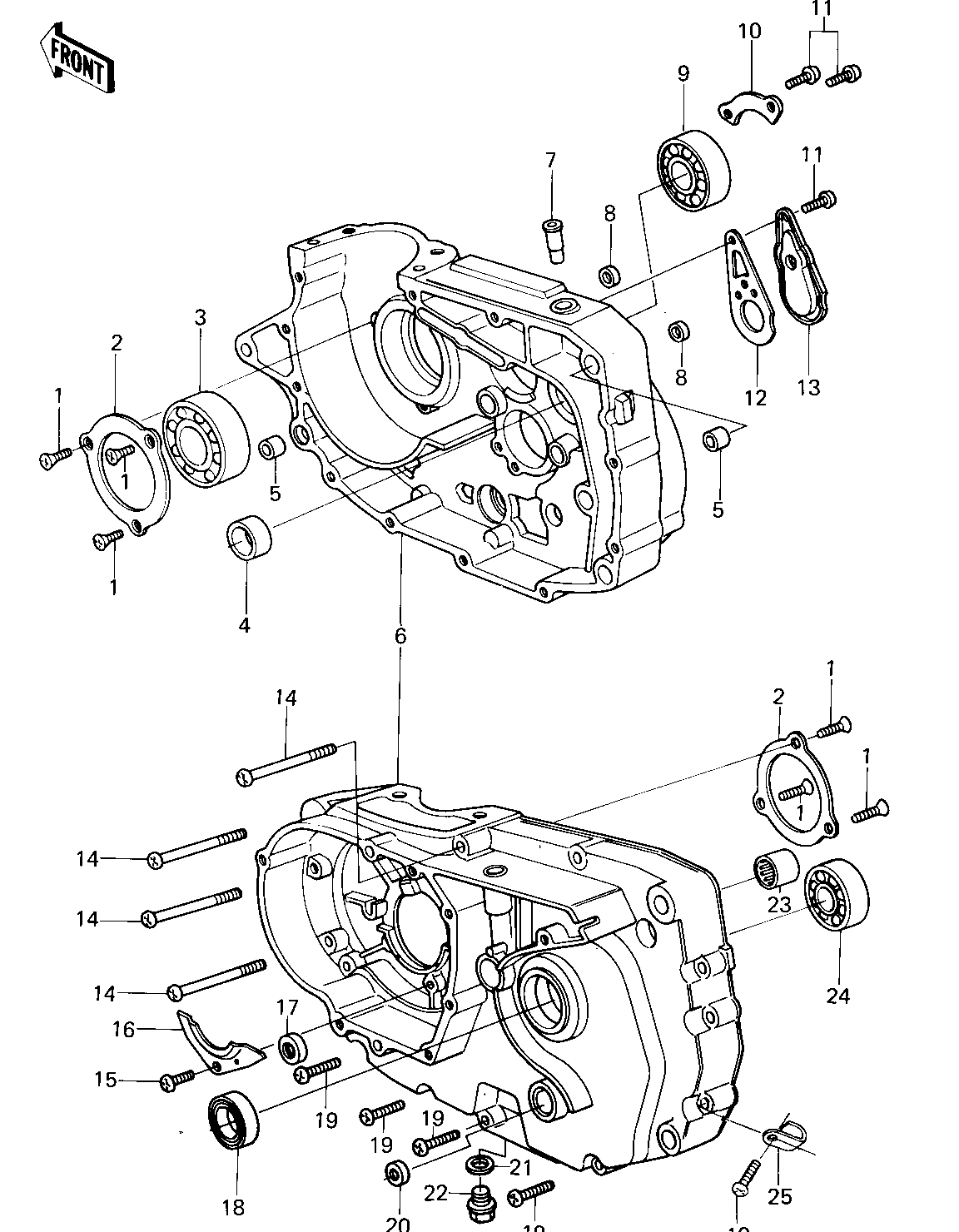

1978 KLR250 - CRANKCASE ('78-'79 KL250-A1/A1A/A2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW CNTSNK HD 6X16 | 1 | 221B0616 | 6 | ||
PLATE,POSITIONING | 2 | 14014-1004 | 2 | ||
BEARING,BALL,#6306 | 3 | 92045-037 | 1 | ||
BUSHING | 4 | 92028-132 | 1 | ||
PIN,DOWEL,14MM | 5 | 92042-032 | 2 | ||
CRANKCASE SET,F.BLACK | 6 | 14001-5034 | 1 | ||
CRANKCASE SET,F.BLACK | 6 | 14001-5034 | 1 | ||
BREATHER JOINT | 7 | 14067-006 | 1 | ||
PLUG | 8 | 92066-1282 | 2 | ||
BEARING,BALL#6006 | 9 | 92045-038 | 1 | ||
PLATE,POSITIONING | 10 | 14014-037 | 1 | ||
SCREW PAN HEAD 6X14 | 11 | 220B0614 | 3 | ||
GASKET | 12 | 16079-002 | 1 | ||
CAP | 13 | 16078-002 | 1 | ||
SCREW PAN HEAD 6X75 | 14 | 220B0675 | 4 | ||
SCREW PAN HEAD 6X14 | 15 | 220B0614 | 1 | ||
PLATE,POSITIONING | 16 | 14014-035 | 1 | ||
OIL SEAL,PUSH ROD | 17 | 92050-077 | 1 | ||
SEAL-OIL,TC32457 | 18 | 92049-1159 | 1 | ||
SCREW PAN HEAD 6X30 | 19 | 220B0630 | 8 | ||
OIL SEAL,CHANGE SHAFT | 20 | 92050-082 | 1 | ||
GASKET,DRIN PLUG | 21 | 92065-097 | 1 | ||
PLUG,OIL DRAIN,12X15 | 22 | 92066-1174 | 1 | ||
BRG,NEEDLE,HMK1515B | 23 | 92046-060 | 1 | ||
BEARING BALL #6205 | 24 | 601B6205 | 1 | ||
CLAMP,WIRING HARNESS | 25 | 21126-008 | 1 |
