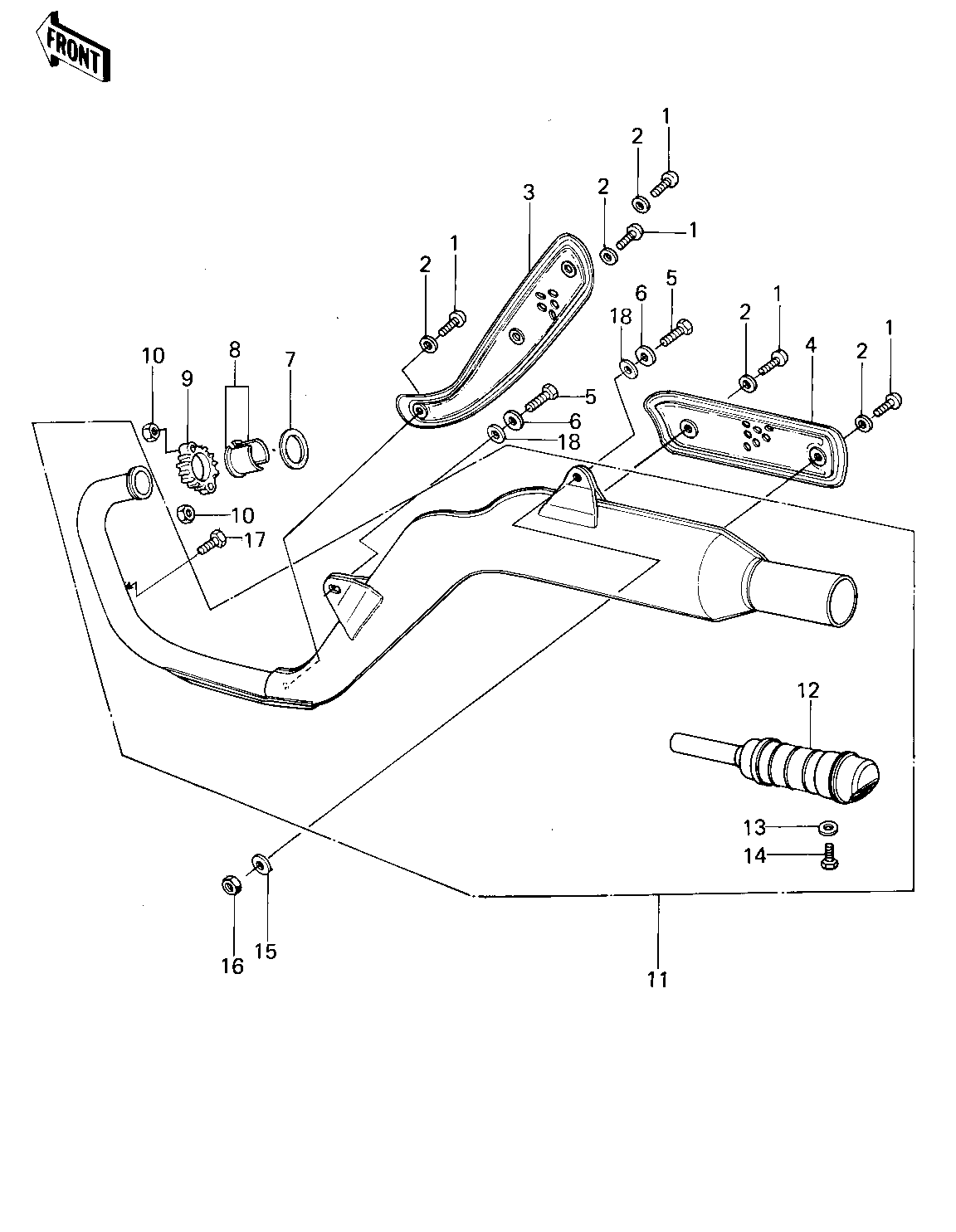

1978 KLR250 - MUFFLER ('78-'79 KL250-A1/A1A/A2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,6X10,B | 1 | 220C0610 | 5 | ||
WASHER LOCK 6MM | 2 | 464H0600 | 5 | ||
COVER,MUFFLER,FRONT | 3 | 14025-1003-21 | 1 | ||
COVER,MUFFLER,REAR | 4 | 14025-1004-21 | 1 | ||
BOLT,8X20 | 5 | 115G0820 | 2 | ||
WASHER PLAIN 8MM | 6 | 411B0800 | 2 | ||
GASKET,EXHAUST PIPE H | 7 | 11009-1866 | 1 | ||
INSERT,EXHAUST PIPE | 8 | 92027-278 | 2 | ||
HOLDER,EXHAUST PIPE | 9 | 18069-1006 | 1 | ||
NUT,LOCK 6MM | 10 | 92017-014 | 2 | ||
MUFFLER ASSY | 11 | 18001-5018 | 1 | KL250-A1 | |
MUFFLER ASSY | 11 | 18001-5018 | 1 | KL250-A1A~ | |
BAFFLE PIPE,MUFFLER | 12 | 49099-1002 | 1 | ||
WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
BOLT-UPSET,6X12 | 14 | 112G0612 | 1 | ||
WASHER PLAIN 8MM | 15 | 410B0800 | 1 | ||
NUT 8MM | 16 | 311G0800 | 1 | ||
BOLT (6X10) | 17 | 110R0610 | 1 | NOT REQUIRED FOR 18001-5004-21 | |
WASHER,8.5X20X1.6 | 18 | 92022-1561 | 2 |
SCREW-PAN-CROS,6X10,B | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
WASHER LOCK 6MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,FRONT | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,REAR | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X20 | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE H | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSERT,EXHAUST PIPE | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER,EXHAUST PIPE | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK 6MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
MUFFLER ASSY | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KL250-A1 |
MUFFLER ASSY | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | KL250-A1A~ |
BAFFLE PIPE,MUFFLER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-UPSET,6X12 | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 8MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT (6X10) | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | NOT REQUIRED FOR 18001-5004-21 |
WASHER,8.5X20X1.6 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
