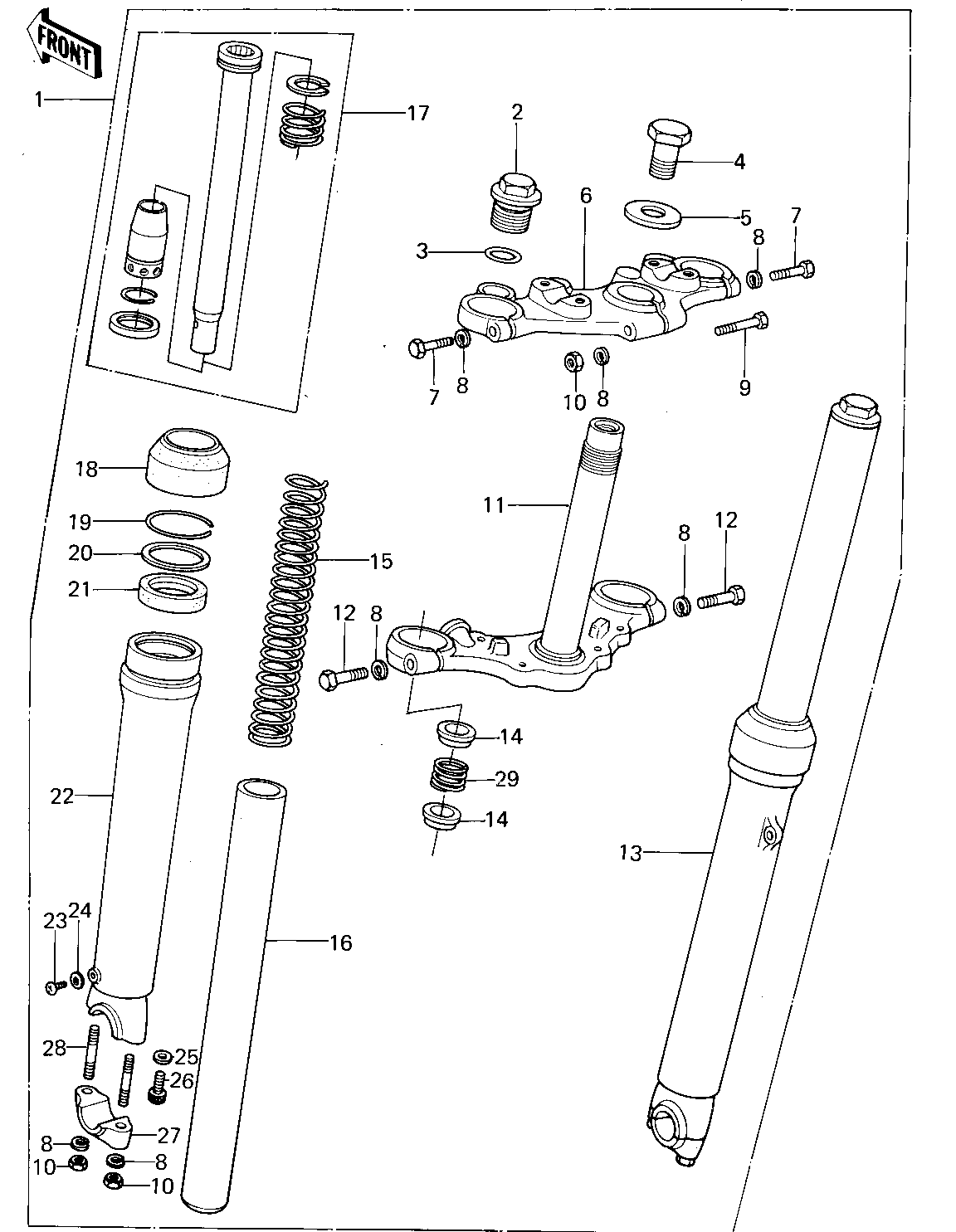

1978 KLR250 - FRONT FORK ('78-'79 KL250-A1/A1A/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1697 1 F/NO. 000101~006345
FORK-FRONT 1 44001-1697 1 F/NO. 000101~006345
FORK-FRONT 1 44001-1697 1 F/NO. 006346~
BOLT,FORK TOP 2 44062-010 2
"O" RING,FORK TOP 3 92055-1012 2
BOLT STRNG STEM HEAD 4 44041-007 1
WASHER STRNG STEM HD 5 44043-016 1
HEAD,STEERING STEM 6 44039-080 1
HEAD,STEERING STEM 6 44039-080 1
BOLT-STEERING STEM HD 7 44041-044 2
WASHER SPRING 8MM 8 461F0800 9
BOLT-STEERING STEM HD 9 44041-042 1
NUT,LOCK,8MM 10 92017-013 5
STEM,STEERING 11 44037-1006 1
BOLT,8X3? 12 92001-1076 2
TUBE,RH,FORK OUTER 13 44006-1007 1
GUIDE,FORK SPRING 14 44028-033 4
SPRING,FORK INNER,LOW 15 44026-1015 2
TUBE,FORK INNER 16 44013-1006 2 USE FOR 44001-1038/1006
TUBE,FORK INNER 16 44013-1013 2 USE FOR 44001-1060
CYLINDER-FORK 17 44022-1010 2 USE FOR 44001-1038/1006
CYLINDER-FORK 17 44022-1014 2 USE FOR 44001-1060
TUBE,FORK INNER 16 44013-1006 2
CYLINDER-FORK 17 44022-1010 2
DUST SHIELD,FORK 18 44010-036 2
CIRCLIP-OIL SEAL FIT 19 44044-012 2
WASHER-OIL SEAL FIT 20 44043-044 2
OIL SEAL 21 44009-016 2
TUBE,LH,FORK OUTER 22 44005-1007 1
SCREW PAN HEAD 4X8 23 220B0408 2
GASKET FORK DRAIN PLG 24 44045-002 2
GASKET,FORK CYLINDER 25 44045-057 2
BOLT-FORK CYLINDER 26 44041-040 2
HOLDER,FRONT AXLE 27 44063-011 2
STUD 8X30 28 172G0830 4
SPRING,FORK INNER UPP 29 44026-1014 2
