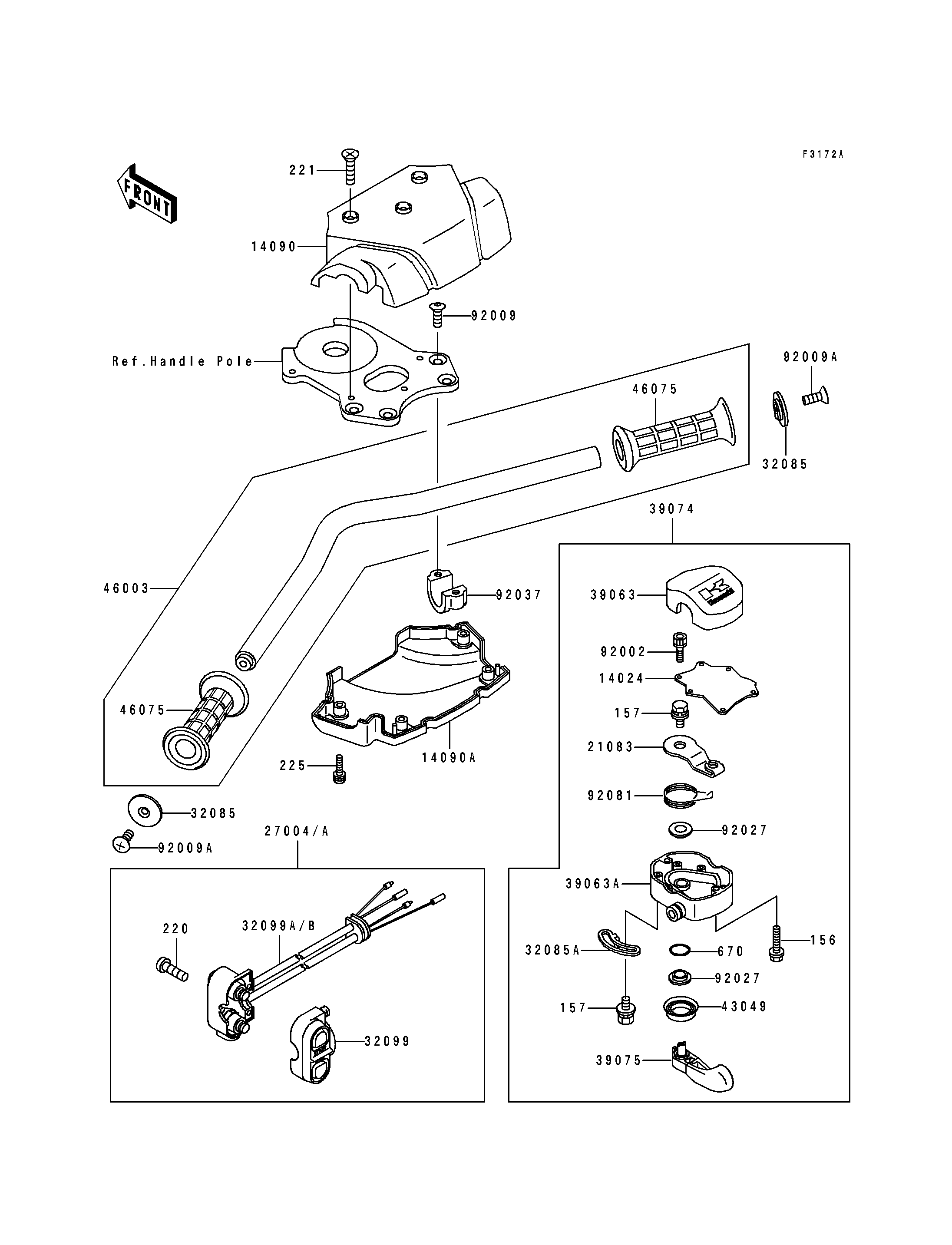

1991 650 SX - Handlebar(KAW64651 91&NAMI.)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,THROTTLE LEVER | 14024 | 14024-3701 | 1 | ||
| COVER,HANDLE,UPP | 14090 | 14090-3703 | 1 | ||
| COVER,HANDLE,LWR | 14090A | 14090-3704 | 1 | ||
| ARM,THROTTLE LEVER | 21083 | 21083-3701 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-3705 | 1 | ||
| STOPPER | 32085 | 32085-3705 | 2 | ||
| STOPPER | 32085A | 32085-3709 | 1 | ||
| CASE,FR,SWITCH | 32099 | 32099-3721 | 1 | ||
| CASE,RR,SWITCH | 32099A | 32099-3723 | 1 | ||
| HOUSING-CONTROL,UPP | 39063 | 39063-3703 | 1 | ||
| HOUSING-CONTROL,LWR | 39063A | 39063-3707 | 1 | ||
| LEVER-ASSY-THROTTLE | 39074 | 39074-3711 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-3704 | 1 | ||
| PACKING,THROTTLE LEVER | 43049 | 43049-3701 | 1 | ||
| HANDLE | 46003 | 46003-3716 | 1 | ||
| GRIP,HANDLEBAR | 46075 | 46075-3713 | 2 | ||
| BOLT,SOCKET,3X10 | 92002 | 92002-3751 | 6 | ||
| SCREW,8X22 | 92009 | 92009-3701 | 4 | ||
| SCREW,6X16 | 92009A | 92009-3703 | 2 | ||
| COLLAR,THROTTLE LEVER | 92027 | 92027-3704 | 2 | ||
| CLAMP,HANDLEBAR | 92037 | 92037-503 | 2 | ||
| SPRING,THROTTLE LEVER RETURN | 92081 | 92081-3702 | 1 | ||
| BOLT-WP,5X25 | 156 | 156R0525 | 2 | ||
| BOLT-WSP,5X12 | 157 | 157R0512 | 2 | ||
| SCREW-PAN-CROS,5X30 | 220 | 220R0530 | 2 | ||
| SCREW-CSK-CROS,6X16 | 221 | 221R0616 | 3 | ||
| SCREW-PAN-WSP-CROS,5X20 | 225 | 225R0520 | 4 | ||
| O RING,8MM | 670 | 670B1508 | 1 |
