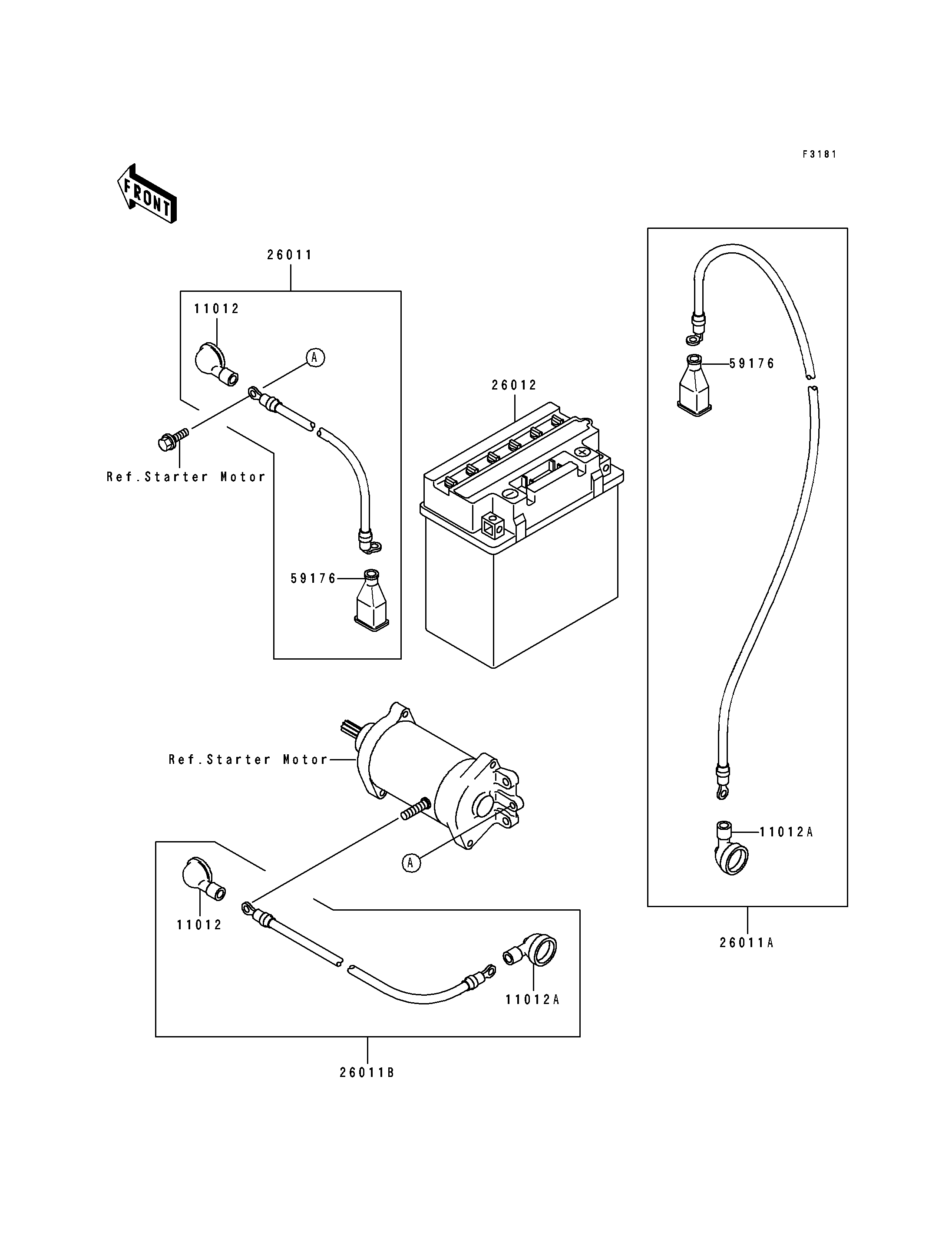

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3004 2
CAP,LEAD WIRE 11012A 11012-3726 2
WIRE-LEAD,BATTERY(-) 26011 26011-3715 1
WIRE-LEAD,BATTERY(+) 26011A 26011-3735 1
WIRE-LEAD,STARTER 26011B 26011-3737 1
BATTERY,YB16CL-B,12V 19AH 26012 26012-3708 1
CAP.,TERMINAL 59176 59176-501 2
