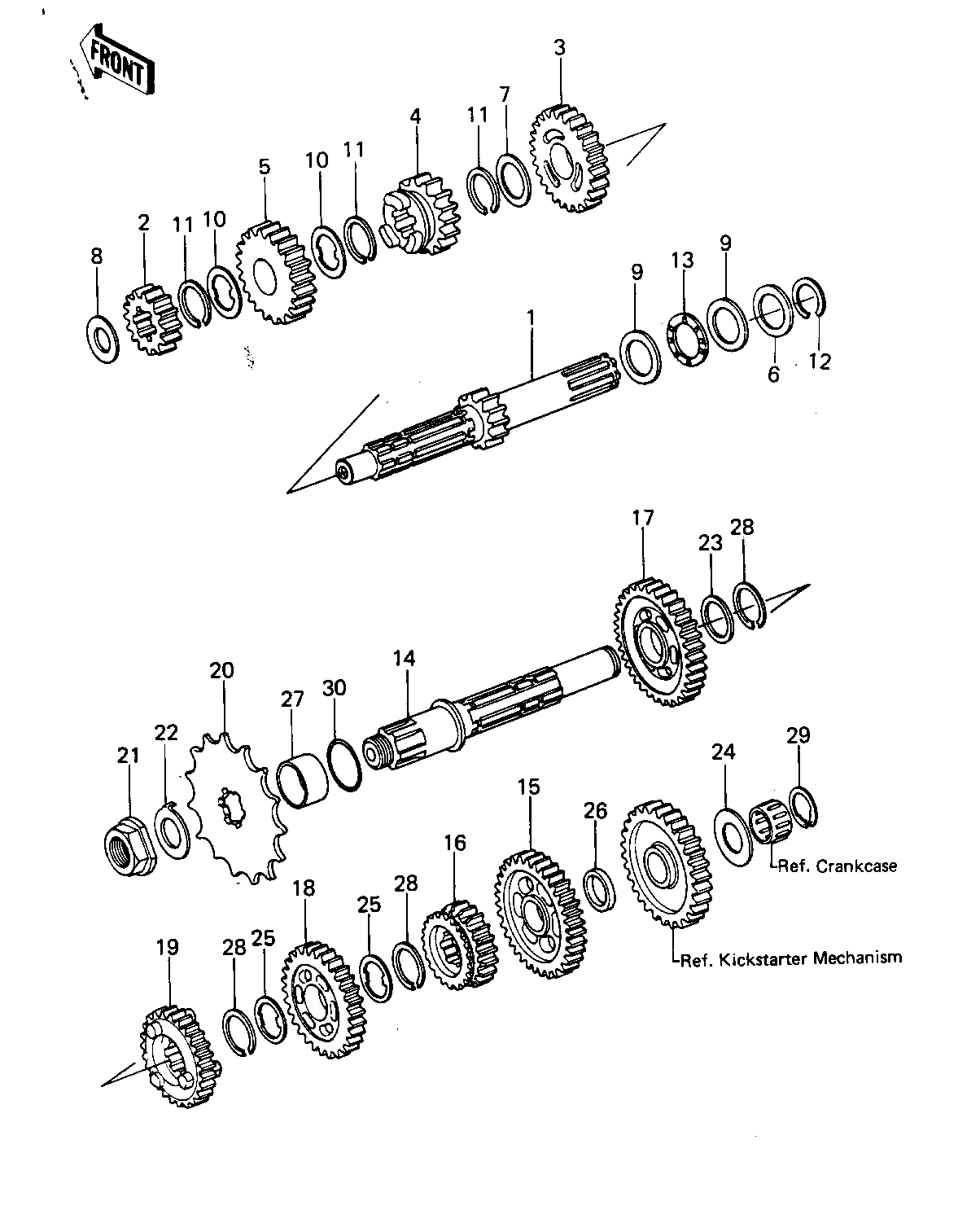

1979 KLX250 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE 1 13127-053 1
2ND GEAR,DRIVE SHAFT 2 13129-1022 1
TOP GEAR,DRV SHFT,24T 3 13129-1050 1
GEAR,INPUT,3RD,20T 4 13129-1284 1
4TH GEAR,DRIVE SHAFT 5 13134-026 1
WASHER THRUST 6 92022-112 1
WASHER-PLAIN 7 92022-198 1
WASHER,THRUST,15MM 8 92022-279 1
WASHER,PLAIN 9 92022-314 2
WASHER-LOCK 10 92024-039 2
CIRCLIP,25MM 11 92033-025 3
CIRCLIP,18MM 12 92033-029 1
BRG,NEEDLE,AXK1104 13 92046-052 1
SHAFT,OUTPUT 14 13128-1007 1
LOW GEAR,OUTPUT SHAFT 15 13129-058 1
TOP GEAR,OUT SHFT,21T 16 13129-1051 1
2ND GEAR,OUTPUT 26T 17 13131-044 1
3RD GEAR,OUTPUT SHAFT 18 13133-044 1
GEAR,OUTPUT 4TH,21T 19 13129-1285 1
ENGINE SPROCKET,14T 20 13144-1005 1
ENGINE SPROCKET,13T 20 13144-1027 (1
ENGINE SPROCKET,15T 20 13144-069 (1
NUT,LOCK,16M/M 21 92015-1013 1
WASHER,LOCK 22 92022-1017 1
WASHER-PLAIN 23 92022-198 1
WASHER,PLAIN 24 92022-270 1
WASHER-LOCK 25 92024-039 2
SPACER 26 92026-114 1
COLLAR,ENGINE SPROCKT 27 92027-287 1
CIRCLIP,25MM 28 92033-025 3
CIRCLIP,16MM 29 92033-032 1
"0" RING 30 92055-022 1
