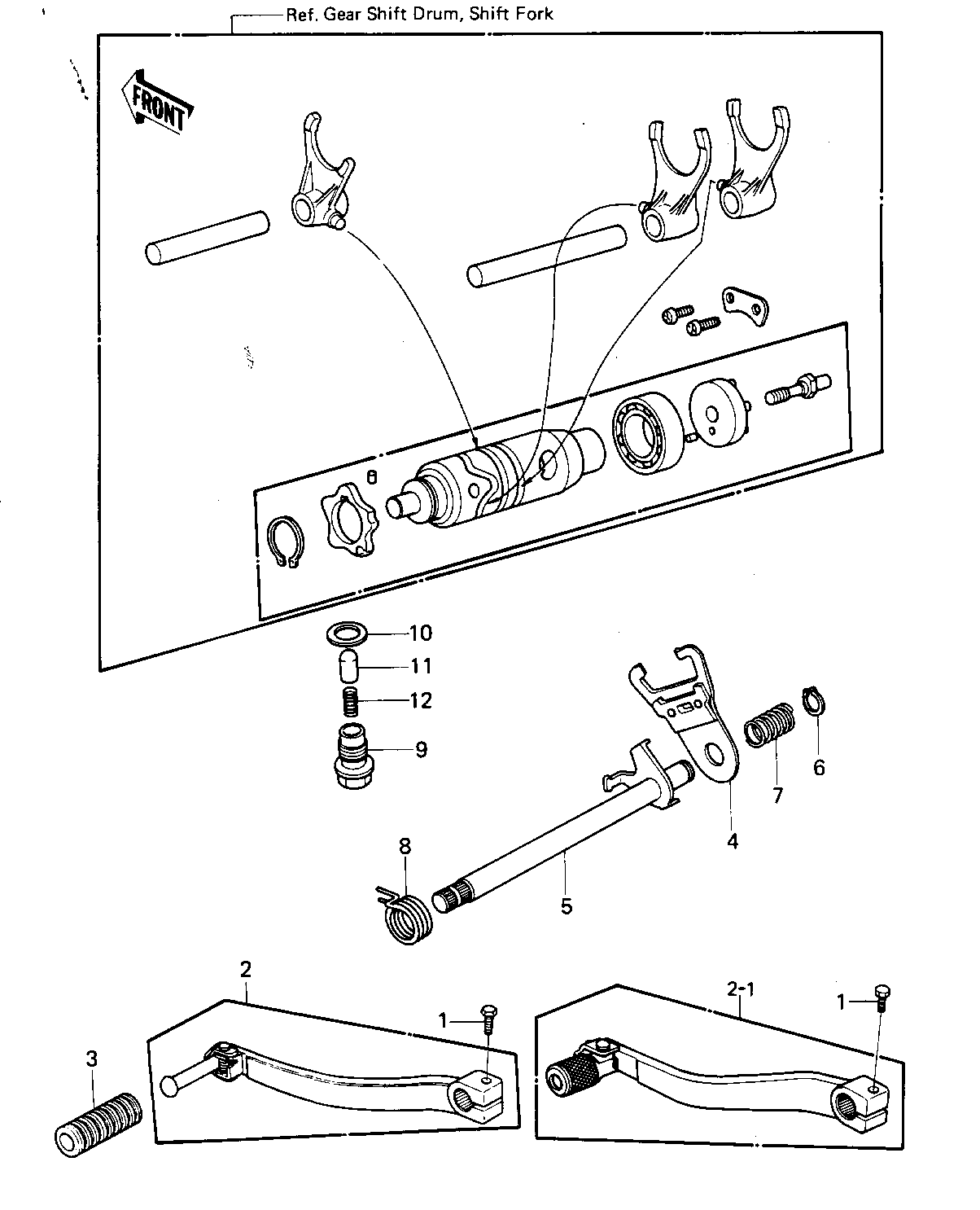

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X20 1 112G0620 1
LEVER ASSY,SHIFT PEDL 2 13242-1026 1 KLX250-A1
LEVER ASSY,SHIFT PEDL 2-1 13242-1026 1 KLX250-A2
DAMPER,CHANGE PEDAL 3 92160-1108 1 USE FOR 13242-1016
LEVER ASSY,GEAR SHIFT 4 13161-044 1
LEVER ASSY,GEAR SHIFT 5 13161-1013 1
CIRCLIP,13MM 6 480J1300 1
SPRING,COIL 7 92081-149 1
SPRING,CHG PEDL RTRN 8 92083-028 1
BOLT,NEUTRAL POSITION 9 92001-182 1
WASHER,PLAIN 10 92022-324 1
PIN,NEUTRAL POSITIONG 11 92043-131 1
SPRING 12 92081-112 1
