Parts Diagrams |

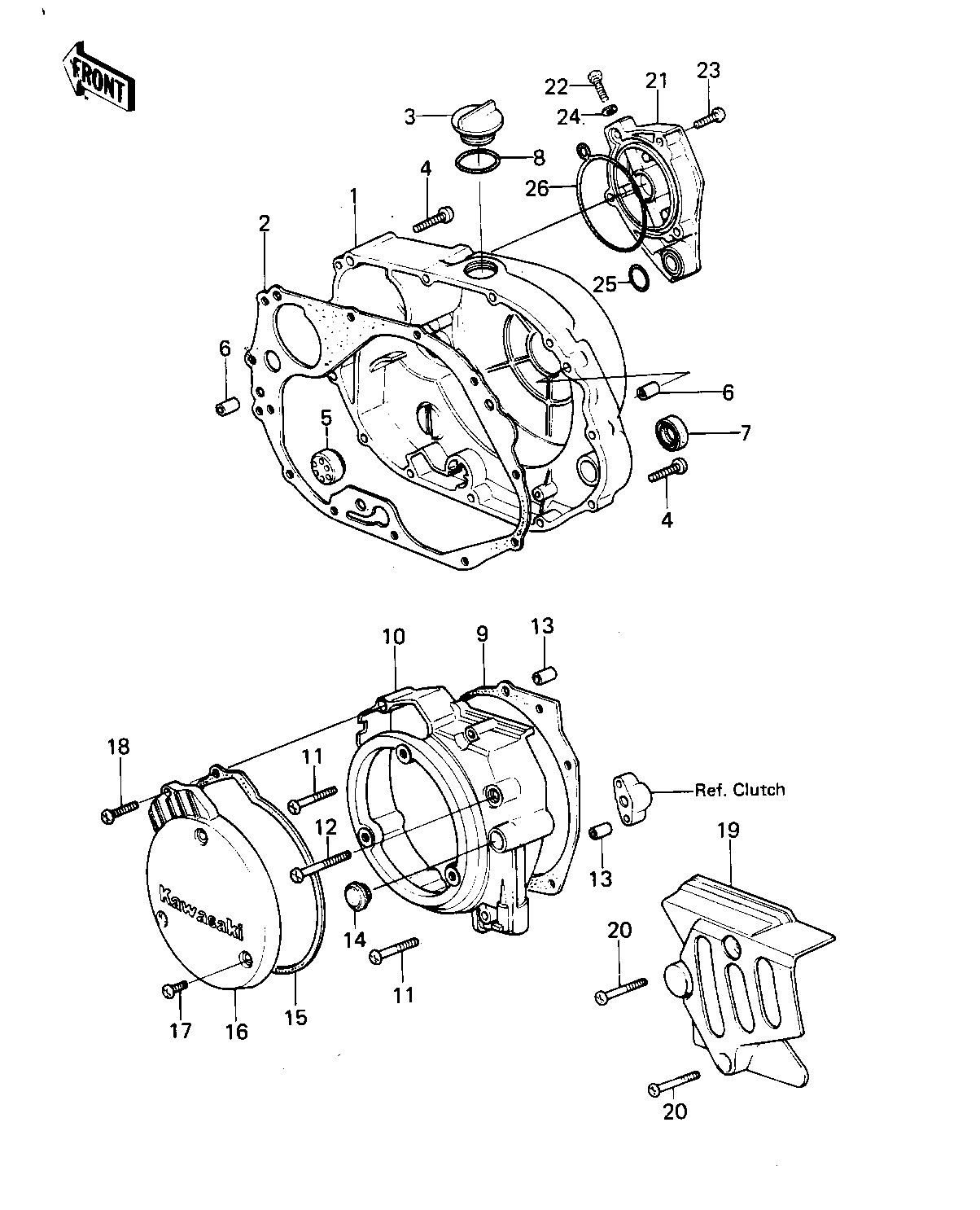

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,R.H.ENG,F.BLACK | 1 | 14032-1036 | 1 | ||
GASKET,ENGINE COV,RH | 2 | 11009-1235 | 1 | ||
PLUG,OIL FILLER | 3 | 16115-013 | 1 | ||
SCREW PAN HEAD 6X30 | 4 | 220B0630 | 12 | ||
GAUGE,OIL LEVEL | 5 | 52015-004 | 1 | ||
PIN-DOWEL | 6 | 92042-007 | 2 | ||
OIL SEAL | 7 | 92050-078 | 1 | ||
"0" RING,31MM | 8 | 92055-049 | 1 | ||
GASKET,L.H,ENGINE COV | 9 | 11009-1009 | 1 | ||
COVER,GENERATOR,F.BLK | 10 | 14031-1033 | 1 | ||
SCREW PAN HEAD 6X40 | 11 | 220B0640 | 4 | ||
SCREW PAN HEAD 6X50 | 12 | 220B0650 | 1 | ||
PIN-DOWEL | 13 | 92042-007 | 2 | ||
PLUG | 14 | 92066-065 | 1 | ||
GASKET,GENERATOR COV | 15 | 11009-1121 | 1 | ||
COVER,GENERATOR,F.BLK | 16 | 14025-1104 | 1 | ||
SCREW PAN HEAD 6X14 | 17 | 220B0614 | 3 | ||
SCREW PAN HEAD 6X25 | 18 | 220B0625 | 1 | ||
COVER,CHAIN,BLACK | 19 | 14026-1022 | 1 | ||
SCREW PAN HEAD 6X50 | 20 | 220B0650 | 2 | ||
COVER,FILTER,F.BLACK | 21 | 14025-1102 | 1 | ||
BOLT HEX HEAD 6X8 | 22 | 110B0608 | 1 | ||
SCREW PAN HEAD 6X25 | 23 | 220B0625 | 3 | ||
WASHER,PLAIN | 24 | 92022-304 | 1 | ||
"O" RING | 25 | 92055-098 | 1 | ||
"0" RING,FILTER COVER | 26 | 92055-1048 | 1 |
COVER,R.H.ENG,F.BLACK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,ENGINE COV,RH | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL FILLER | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X30 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
GAUGE,OIL LEVEL | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
OIL SEAL | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,31MM | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,L.H,ENGINE COV | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,GENERATOR,F.BLK | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X40 | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X50 | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,GENERATOR COV | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,GENERATOR,F.BLK | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X14 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X25 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,CHAIN,BLACK | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X50 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,FILTER,F.BLACK | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT HEX HEAD 6X8 | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X25 | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,FILTER COVER | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
