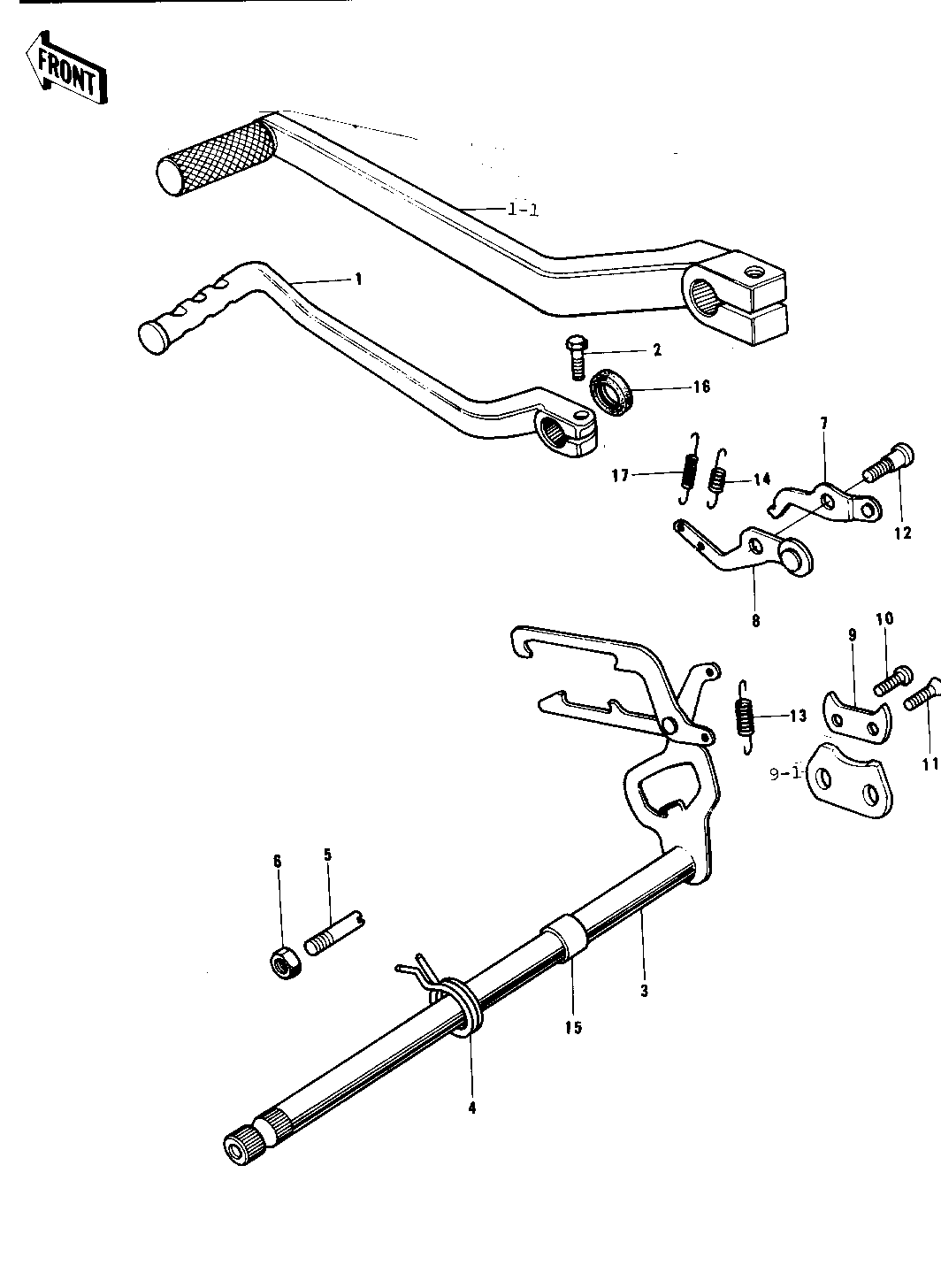

1976 KX250-A3 - GEAR CHANGE MECHANISM (74-76)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PEDAL,GEAR CHANGE | 1 | 13156-055 | |||
PEDAL,GEAR CHANGE | 1-1 | 13156-059 | KX250A/-A3 | ||
BOLT-UPSET,6X20 | 2 | 112G0620 | |||
BOLT-UPSET,6X20 | 2 | 112G0620 | |||
LEVER ASSY,GEAR CHANG | 3 | 13161-033 | |||
SPRING,TENTION | 4 | 92081-1129 | |||
BOLT,RETURN SPRING | 5 | 92001-1401 | |||
NUT 8MM | 6 | 312B0800 | |||
LEVER ASSY,GEAR CHANG | 7 | 13236-006 | |||
LEVER ASSY,GEAR CHANG | 8 | 13236-007 | |||
PLATE,CHANGE DRUM | 9 | 13169-012 | USE FOR P/N | ||
PLATE,CHANGE DRUM | 9-1 | 13169-012 | USE FOR P/N | ||
SCREW PAN HEAD 6X14 | 10 | 220B0614 | (2 REQ FOR KX250A) | ||
SCREW CNTSNK HD 6X14 | 11 | 221B0614 | (N/R FOR KX250A) | ||
SCREW-PAN HEAD | 12 | 92011-023 | |||
SPRING-CHANGE LEVER | 13 | 92081-076 | |||
SPRING-COIL | 14 | 92081-077 | |||
COLLAR | 15 | 92027-189 | |||
OIL SEAL,TB13225.5 | 16 | 92051-005 | |||
SPRING | 17 | 92081-119 |
