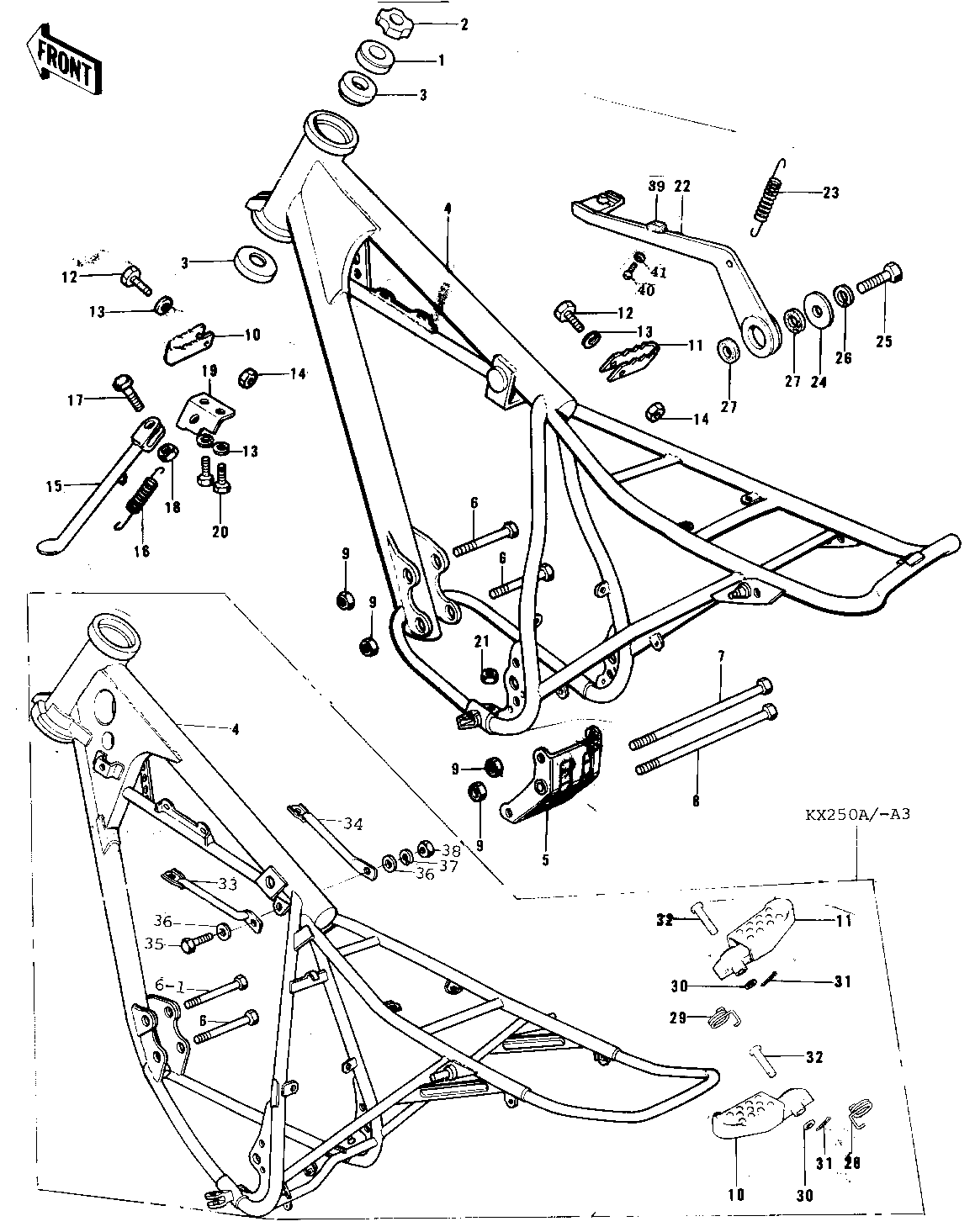

1976 KX250-A3 - FRAME/FRAME FITTINGS (74-76)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,STEERING STEM | 1 | 46098-015 | |||
NUT | 2 | 92015-1546 | |||
BEARING,STEERING STEM | 3 | 92047-017 | |||
FRAME | 4 | 32002-083 | |||
FRAME | 4 | 32002-120 | KX250A/-A3 | ||
BRACKET,ENGINE BASE | 5 | 32117-005 | |||
BOLT,HEX HEAD,10X65 | 6 | 92001-1255 | |||
BOLT,FLANGED,10X70 | 6-1 | 92001-1618 | KX250-A3 | ||
BOLT, FLANGED, 10X110 | 7 | 92001-1602 | |||
BOLT,FLANGED,10X115 | 8 | 92001-1603 | |||
NUT,10MM | 9 | 92019-016 | |||
BAR,L.H FOOTREST | 10 | 34028-017 | |||
BAR,FOOTREST,L.H | 10 | 34028-025 | KX250A/-A3 | ||
BAR,R.H FOOTREST | 11 | 34028-018 | |||
BAR,FOOTREST,R.H | 11 | 34028-026 | KX250A/-A3 | ||
BOLT-SMALL-UPSET | 12 | 115B0832 | |||
WASHER SPRING 8MM | 13 | 461F0800 | |||
NUT,8MM | 14 | 92019-018 | |||
STAND-SIDE | 15 | 34024-045 | |||
SPRING-SIDE STAND | 16 | 34025-004 | |||
SPRING,SIDE STAND | 16 | 34025-008 | KX250A/-A3 | ||
BOLT,10X28 | 17 | 113G1028 | |||
NUT 10MM | 18 | 315B1000 | |||
BRACKET,SIDE STAND | 19 | 34008-009 | |||
BRACKET,SIDE STAND | 19 | 34008-009 | KX250-A3 | ||
BOLT,8X20 | 20 | 115G0820 | |||
BOLT,8X20 | 20 | 115G0820 | |||
BOLT-SMALL-UPSET,8X22 | 20 | 115B0822 | KX250-A3 | ||
NUT 8MM | 21 | 312B0800 | |||
PEDAL,BRAKE | 22 | 43077-005 | |||
PEDAL,BRAKE | 22 | 43077-005 | KX250A/-A3 | ||
SPRING,BRAKE PEDAL | 23 | 43005-026 | |||
SPRING,BRAKE PEDAL | 23 | 43005-035 | KX250A/-A3 | ||
WASHER,PLAIN,6MM | 24 | 92022-284 | |||
BOLT-UPSET 6X14 | 25 | 112B0614 | |||
BOLT-UPSET 6X14 | 25 | 112B0614 | |||
WASHER SPRING 6MM | 26 | 461F0600 | |||
"0" RING,16MM | 27 | 670B2016 | |||
SPRING,L.H,FOOTREST | 28 | 92081-1254 | KX250A/-A3 | ||
SPRING,R.H,FOOTREST | 29 | 92081-1255 | KX250A/-A3 | ||
WASHER PLAIN 8MM | 30 | 410B0800 | KX250A/-A3 | ||
PIN,COTTER,2.5X15 | 31 | 550D2515 | KX250A/-A3 | ||
PIN,FOOTREST BAR FIT | 32 | 92043-115 | KX250A/-A3 | ||
PLATE,L.H,ENGINE | 33 | 32030-057 | KX250A/-A3 | ||
PLATE,RH ENGINE | 34 | 32030-058 | KX250A/-A3 | ||
BOLT,10X28 | 35 | 113G1028 | KX250A/-A3 | ||
WASHER PLAIN 10MM | 36 | 411B1000 | KX250A/-A3 | ||
WASHER SPRING 10MM | 37 | 461F1000 | KX250A/-A3 | ||
NUT,10MM | 38 | 314B1000 | KX250A/-A3 | ||
NUT,10MM | 38 | 314B1000 | KX250-A3 | ||
DAMPER RUBBER BRK PED | 39 | 92075-267 | |||
SCREW PAN HEAD 5X10 | 40 | 220B0510 | |||
WASHER SPRING 5MM | 41 | 461F0500 |
