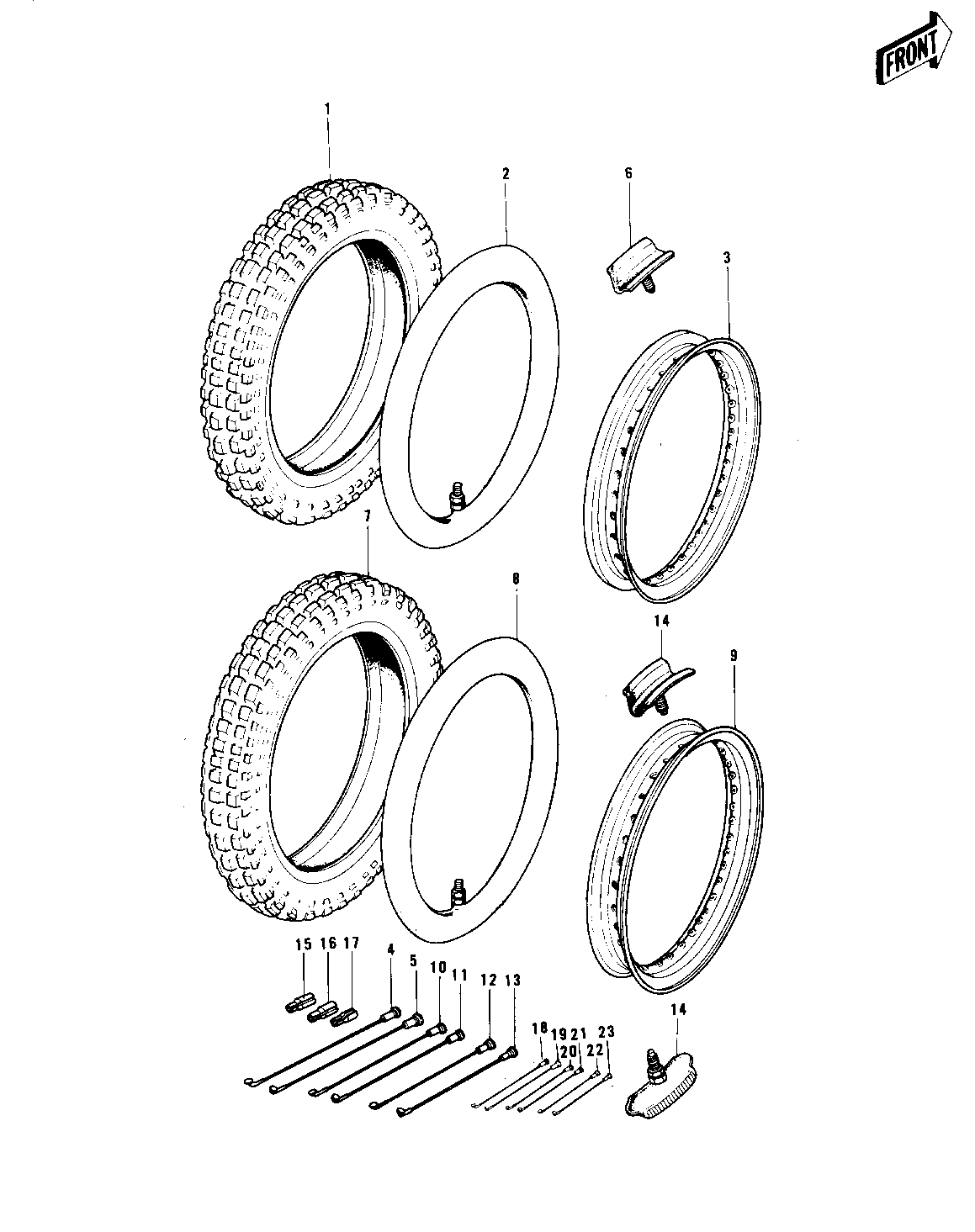

1976 KX250-A3 - WHEELS/TIRES (74-76)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 300-21 DUN MX 1 41017-012 DUNLOP M X SPORTS
TUBE,2.75/3.70-21 2 41022-1021
*** N.L.A.*** (Canada) 3 41025-071
RIM 1,60A-21E 3 41025-083 KX250A/-A3
SPOKE-ASY,FR INNER 4 41027-075 222.5M/M X 100
SPOKE-ASY FR OUTER 5 41028-074 222M/M X 88
PROTECTOR,BEAD 1.60A 6 41024-010
TIRE 460-18 DUN MX 7 41017-013 DUNLOP M X SPORTS SENSOR
TUBE 350/375/410-18 8 41022-031
RIM,ALLOY 2.15B X 18E 9 41025-072
RIM,2.15BX18E 9 41025-084 KX250A/-A3
SPOKE-ASY,RR INNER 10 41027-076 193M/M X 107
SPOKE-ASY,RR INNER 11 41027-077 192M/M X 107
SPOKE-ASY RR OUTER 12 41028-075 192M/M X 79
SPOKE-ASY RR OUTER 13 41028-076 191M/M X 79
PROTECTORBEAD 14 41024-009
WEIGHT,BALANCE,10G 15 41075-1007
WEIGHT,BALANCE,20G 16 41075-1008
WEIGHT,BALANCE,30G 17 41075-1009
SPOKE-ASY,FR INNER 18 41027-078 KX250A/-A3
SPOKE-ASY,FR INNER 19 41027-079 KX250A/-A3
SPOKE-ASY FR OUTER 20 41028-077 KX250A/-A3
SPOKE-ASY,RR OUTER 21 41028-079 KX250A/-A3
SPOKE-ASY,RR INNER 22 41027-080 KX250A/-A3
SPOKE-ASY,RR OUTER 23 41028-078 KX250A/-A3
