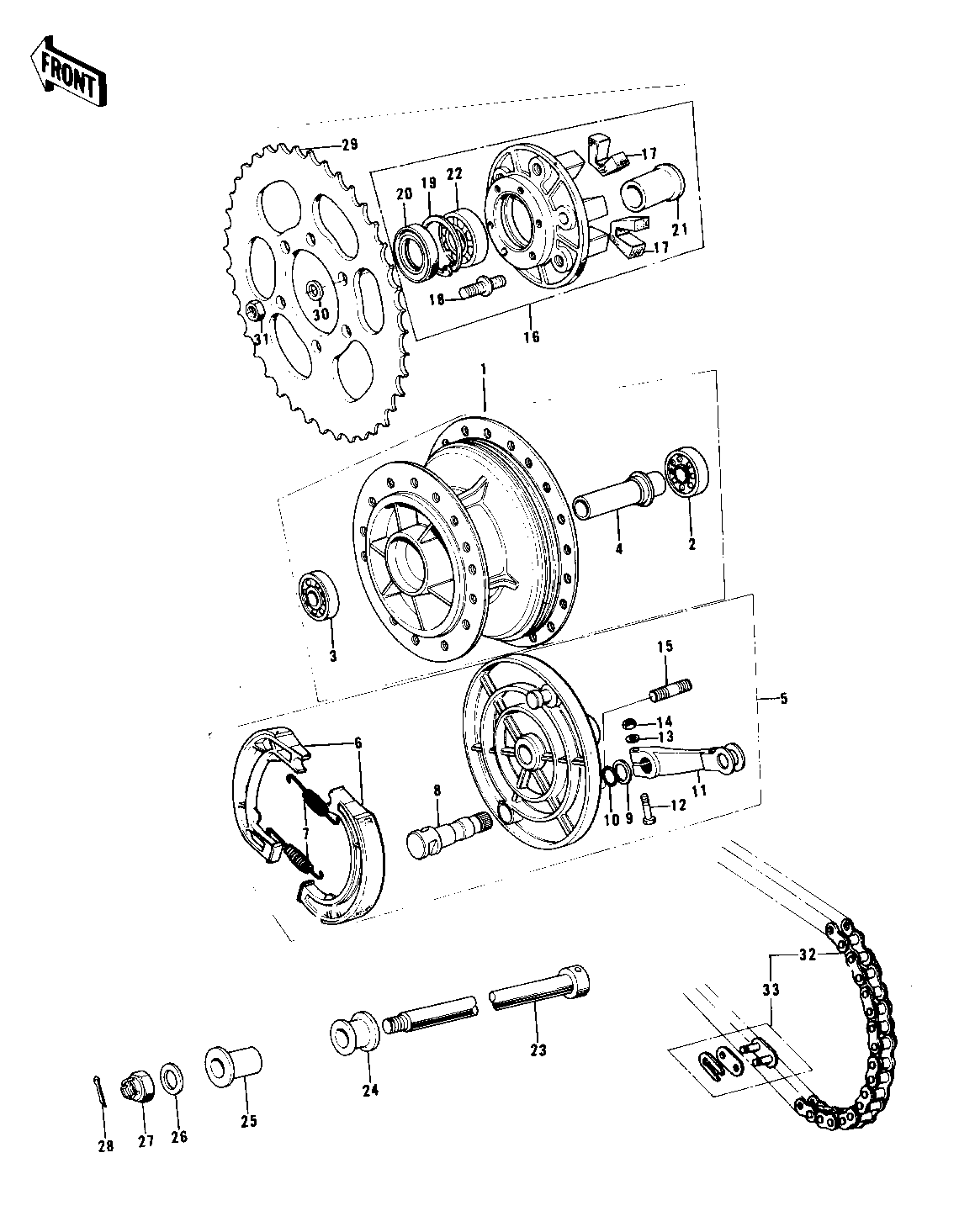

1976 KX250-A3 - REAR HUB/BRAKE/CHAIN (KX250)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM ASSY,REAR BRAKE 1 42005-043
BEARING,BALL, #6202 2 92045-027
BEARING,BALL, #6302 3 92045-028
COLLAR,REAR HUB BRNG 4 42010-024
PANEL-ASY,RR BRK 5 42006-051
SHOE,BRAKE 6 42019-011
SHOE,BRAKE 6 42019-011
SPRING-BRAKE SHOE 7 42020-004
CAM SHAFT,BRAKE CAM 8 42026-013
WASHER 9 92022-258
"O" RING,15MM 10 670B2015
LEVER,REAR BRAKE CAM 11 42029-037
BOLT-UPSET,6X40 12 112G0640
BOLT-UPSET,6X40 12 112G0640
WASHER PLAIN 6MM 13 410B0600
NUT 6MM 14 311B0600
STUD,10X18 15 92006-004
COUPLING ASSY,RR BRK 16 42008-025
SHOCK DAMPER 17 42014-022
STUD,8MM,10MM 18 92006-005
CIRCLIP,47M/M 19 92033-1042
DUST SHIELD,RR BRK 20 42027-004
SLEEVE,COUPLING 21 42036-022
BEARING,BALL 22 92045-032
AXLE,REAR 23 42031-048
COLLAR,R.H RR.AXLE 24 42032-051 L=22M/M
COLLAR,RR AXLE L.H 25 42032-054
WASHER 26 92022-260 O.D.=300
NUT CASTLE 14MM 27 92103-006
PIN COTTER 3.0X25 28 550D3025
REAR SPROCKET 48T 29 42041-133 STD
REAR SPROCKET 46T 29 42041-134 OPTION
REAR SPROCKET 50T 29 42041-135 OPTION
WASHER PLAIN 8MM 30 410B0800
NUT,8MM 31 92019-018
DR CHAIN 520X104 32 92057-039 D1D520TM
92058-1051 (Canada) 33 92058-020
