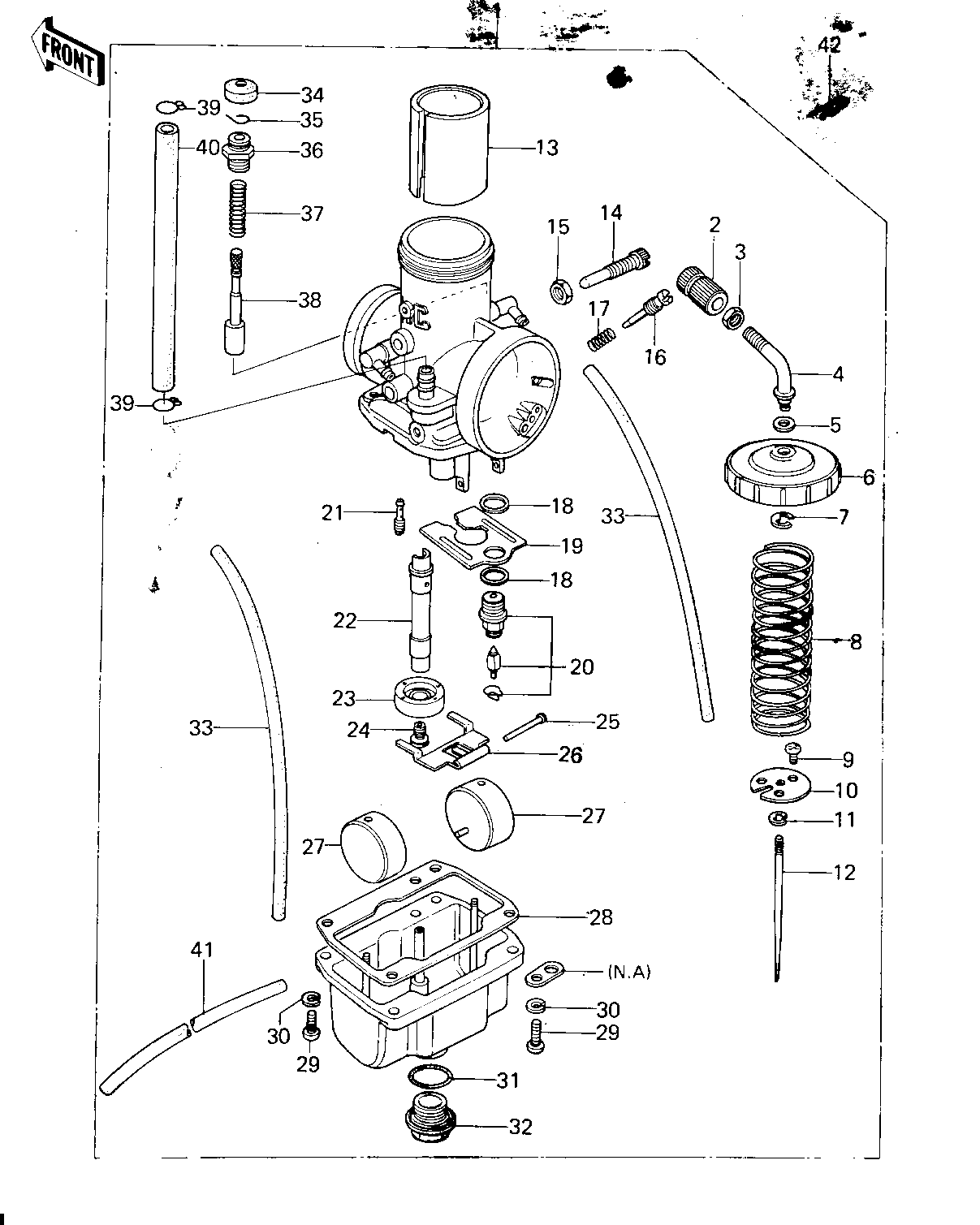

1979 KX250-A5 - CARBURETOR (78-79)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1015 KX250-A4
CARBURETOR ASSY 1 16001-1099 KX250-A5+
ADJUSTER,CABLE 2 16002-1003
NUT CABLE ADJUST LOCK 3 16003-004
GUIDE,CABLE 4 13070-1014
GASKET,CABLE GUIDE 5 11009-1074
TOP,MIXING CHAMBER 6 16004-1010
CIRCLIP,CABLE GUIDE 7 16008-011
SPRING-THROTTLE VALVE 8 16006-016
SCREW,4X5 9 92009-1037
SEAT,THROTTLE VALVE 10 16007-1004 ALUMINIUM
SEAT,THROTTLE VALVE 10 16007-1007 STEEL
CIRCLIP 11 16008-010
JET NEEDLE,6FL26 12 16009-1017 KX250-A4
JET NEEDLE,6FL28 12 16009-1033 KX250-A5+
VALVE,THROTTLE,CA3.0 13 16025-1011 KX250-A4
VALVE,THROTTLE,CA2.5 13 16025-1027 KX250-A5+
SCREW,THROTTLE ADJUST 14 16021-022
NUT-CABLE ADJUST LOCK 15 16003-006
SCREW 16 16014-006
SPRING-THR STOP SCREW 17 16022-007
GASKET,FLOAT VALVE 18 11009-1076
BAFFLE-CARB 19 16038-019
FLOAT VALVE ASSY 20 16030-020
PILOT JET,#50 21 92064-1005
NEEDLE JET,Q-8 22 16017-1024 KX250-A4
NEEDLE JET,R-2 22 16017-1036 KX250-A5+
HOLDER,NEEDLE JET 23 16065-1015
MAIN JET,#165R 24 92063-1020 KX250-A4
MAIN JET,#172.5R 24 92063-1027 KX250-A5+
MAIN JET,#177-5R 24 92063-1040 OPTION
MAIN JET,#175R 24 92063-1039 OPTION
MAIN JET,#170R 24 92063-1022 OPTION
MAIN JET,#167.5R 24 92063-1021 OPTION
MAIN JET,#162.5R 24 92063-1019 OPTION
MAIN JET,#160R 24 92063-1018 OPTION
PIN,FLOAT 25 16032-008
ARM,FLOAT 26 16055-009
FLOAT 27 16031-029
GASKET,FLOAT CHAMBER 28 16019-028
SCREW, PAN HEAD, 5 X 16 29 220B0516A
WASHER SPRING 5MM 30 461F0500
GASKET-COVER 31 16038-009
COVER,MAIN JET 32 16049-006
HOSE, 3.5 X 7.5 X 410 M/M 33 92059-1027
CAP,STARTER PLUNGER 34 16036-013
CIRCLIP 35 92037-1077
CAP,STARTER PLUNGER 36 16012-021
SPRING,STARTER PLUNGR 37 16013-011
PLUNGER ASSY,STARTER 38 16016-013
CLAMP,CARB CONECT HOS 39 92037-056
HOSE,FUEL,6.5OX11.5O 40 92059-1026
HOSE,OVERFLOW 41 92059-1025
CIRCLIP 42 92036-018
