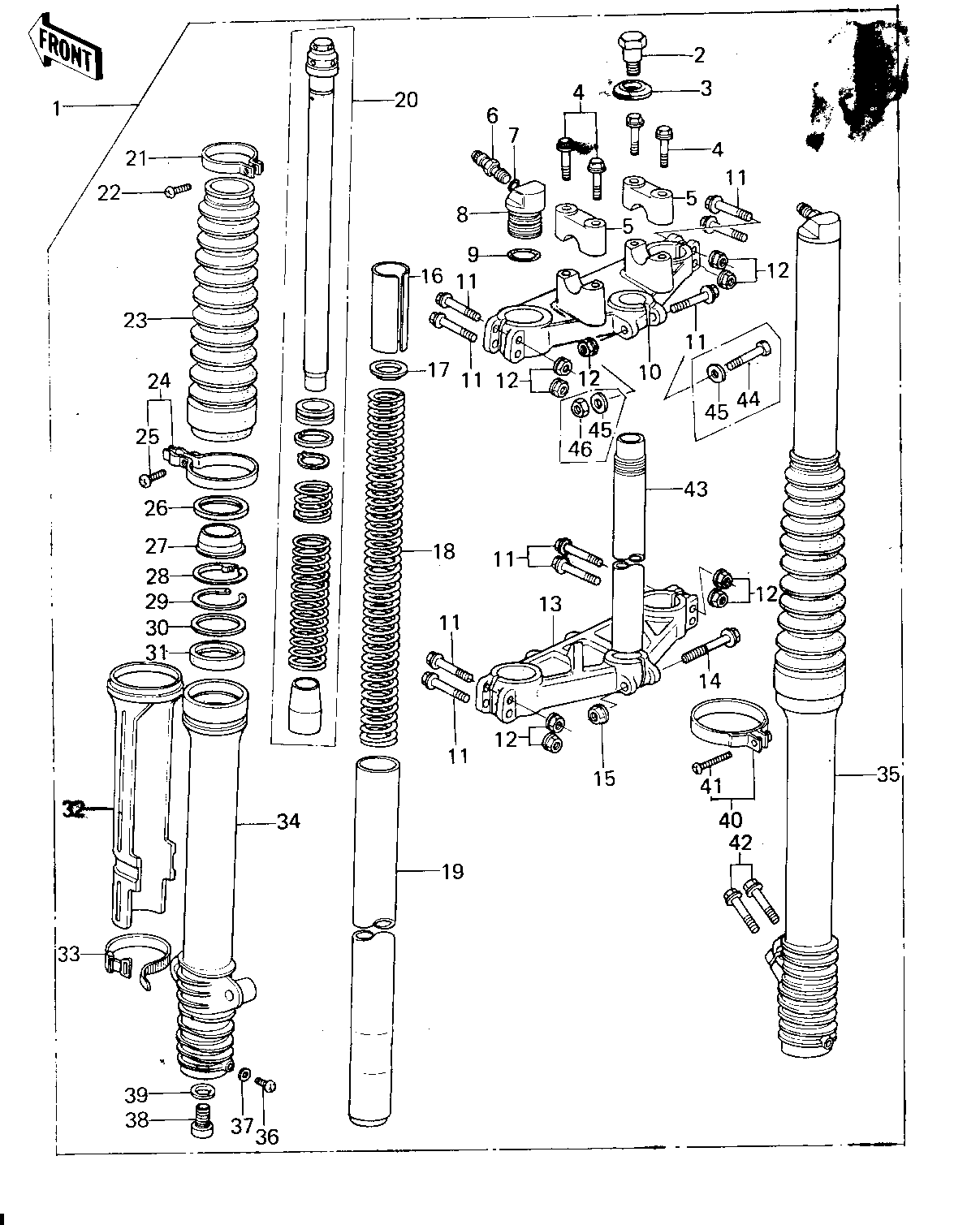

1979 KX250-A5 - FRONT FORK (KX250-A4) (78-79)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1044
BOLT,FORK TOP 2 44041-065 14 X 20
WASHER 3 44043-052
BOLT,HEX HEAD,8X35 4 92001-1059
HOLDER,HANDLE BAR 5 46012-1003
VALVE ASSY,AIR 6 16126-1003
"0" RING,AIR VALVE 7 92055-1018
CAP,FORK TOP 8 44029-1005
"O" RING,FORK TOP 9 92055-1012
HEAD,STEERING STEM 10 44039-1009
BOLT,HEX HEAD,8X53 11 92001-1060
BOLT,HEX HEAD,8X53 11 92001-1060
NUT,8M/M 12 44007-1002
NUT,8M/M 12 44007-1002
STEM,STEERING 13 44037-1005
BOLT,HEX HEAD,10X60 14 92001-1061
NUT 10M/M 15 44007-1003
SPACER,FORK SPRING 16 92026-1012
GUIDE,FORK SPRING 17 44028-033
SPRING,FORK INNER 18 44026-1017
TUBE,FORK INNER 19 44013-1009
CYLINDER-FORK 20 44022-1007
BAND,BOOTS 21 92072-1008
SCREW-PAN-CROS 22 220B0414
BOOTS,FORK 23 49006-1009
BAND,BOOTS L.H. 24 92072-1011
SCREW PAN HEAD 6X18 25 220B0618
CASE,DUST SHIELD 26 32099-1002
DUST SHIELD,FORK 27 92093-1007
GUIDE,FORK OUTER TUBE 28 13070-1003
RING,SNAP,FORK OUTER 29 92033-1005
WASHER,FORK OUTER 30 92022-1027
OIL,SEAL,FORK OUTER 31 92049-1009
GUARD,FORK 32 55020-1012
BAND,BOOTS 33 92072-1009
TUBE,LH,FORK OUTER 34 44005-1010
TUBE,RH,FORK OUTER 35 44006-1010
SCREW PAN HEAD 4X8 36 220B0408
GASKET FORK DRAIN PLG 37 44045-002
BOLT-FORK CYLINDER 38 44041-040 10 X 25
GASKET,FORK CYLINDER 39 44045-057
BAND,BOOTS,R.H. 40 92072-1010
SCREW-PAN HEAD,4X20 41 220E0420A
BOLT,HEX HEAD,8X25 42 92001-1058
SHAFT,STEERING STEM 43 44052-008
BOLT,HEX HEAD,8X57 44 92001-1141
WASHER PLAIN 8MM 45 410B0800
NUT,LOCK,8MM 46 92015-1124
