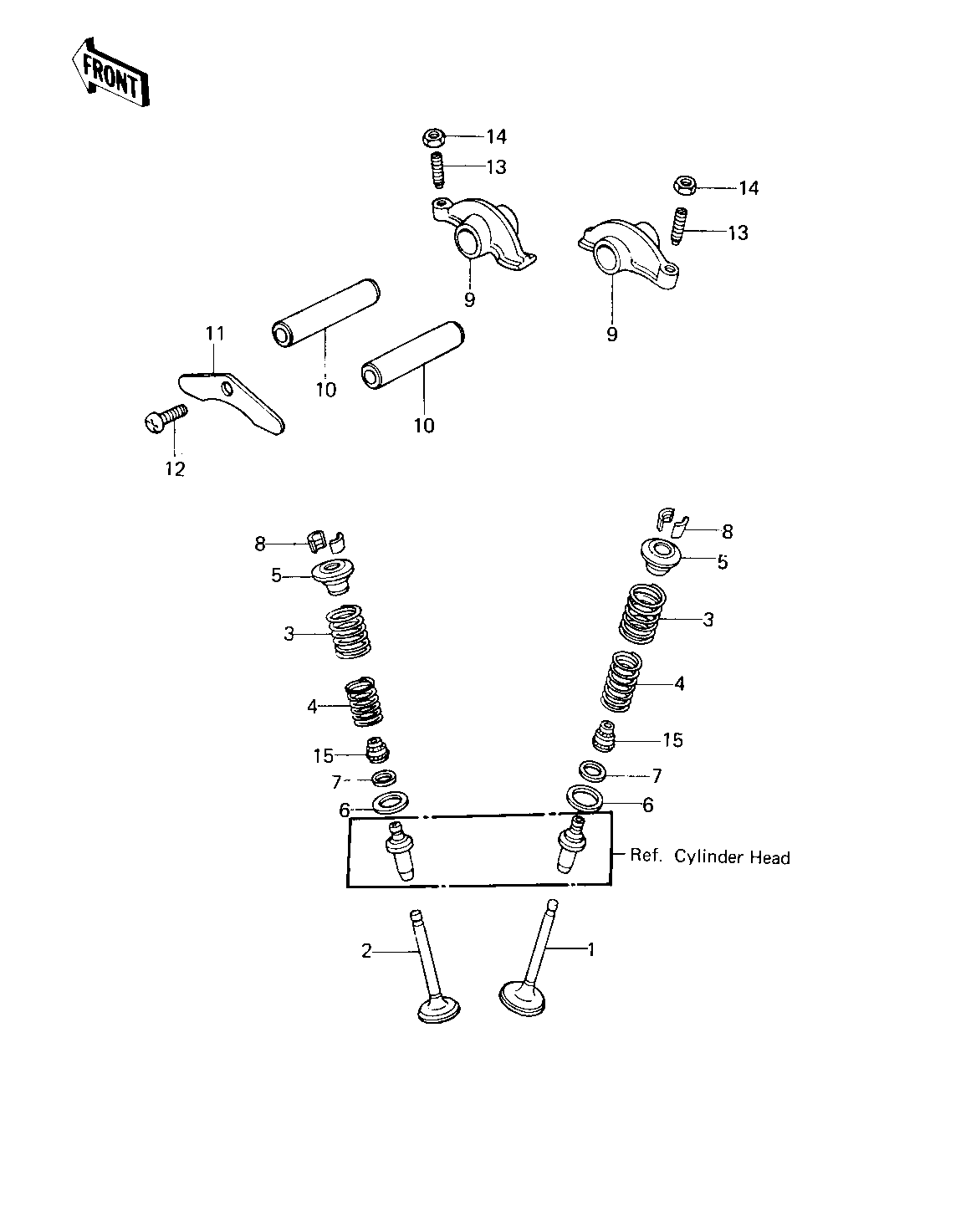

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,INLET 1 12004-1006 1
VALVE,EXHAUST 2 12005-1005 1
SPRING,OUTER VALVE 3 12007-013 2
SPRING,INNER VALVE 4 12007-014 2
RETAINER,VALVE SPRING 5 12009-006 2
SEAT,VLV OUTER SPRING 6 12010-005 2
SEAT,VLV INNER SPRING 7 12010-006 2
SPLIT KEEPER 8 12011-004 4
ARM,ROCKER 9 12016-012 2
SHAFT,ROCKER ARM 10 12020-004 2
PLATE,POSITIONING 11 14014-034 1
SCREW PAN HEAD 6X14 12 220B0614 1
SCREW,SLOTTED,ROCKER 13 92013-009 2
NUT,ROCKER ARM FITTNG 14 92016-061 2
OIL SEAL,RV37129.5 15 92049-016 2
