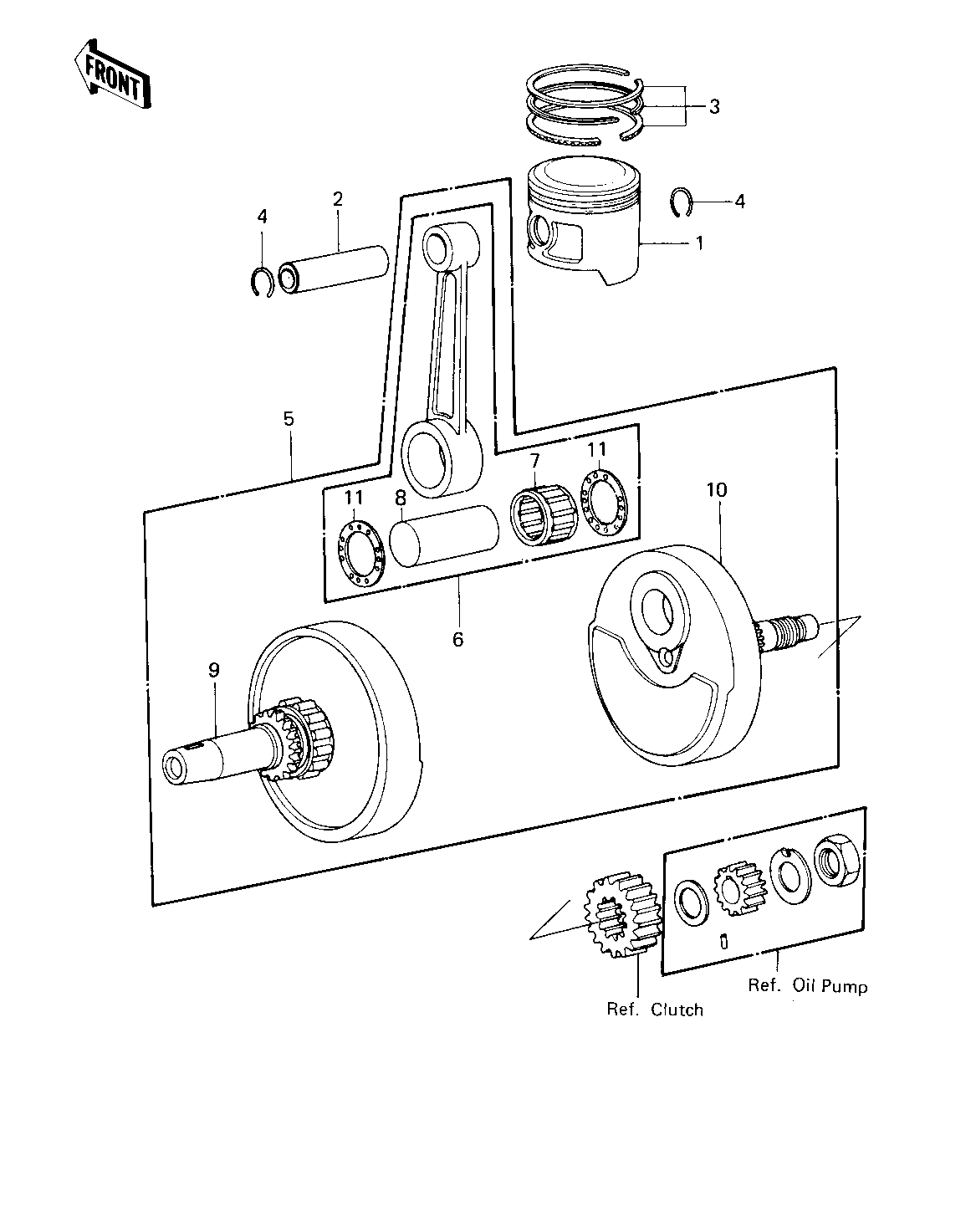

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON,S.T.D 1 13001-1037 1
PISTON,0.020 O/S 1 13029-1003 (1
PISTON,0.040 O/S 1 13027-1005 (1
PIN-PISTON 2 13002-1013 1
RING SET,STD 3 13008-5012 1
RING SET,0.020"O/S 3 13025-5007 (1
RING SET,0.040"O/S 3 13024-5008 (1
CIRCLIP,PISTON PIN 4 92036-021 2
CRANK & CONROD ASSY 5 13031-1029 1
CONNECTING ROD SET 6 13044-5005 1
BRG,NEEDLE PK293921.4 7 13034-031 1
PIN,CRANK 8 13035-035 1
CRANKSHAFT,L.H 9 13037-5003 1
CRANKSHAFT,R.H 10 13037-1064 1
SPACER,CONNECTING ROD 11 92026-087 2
