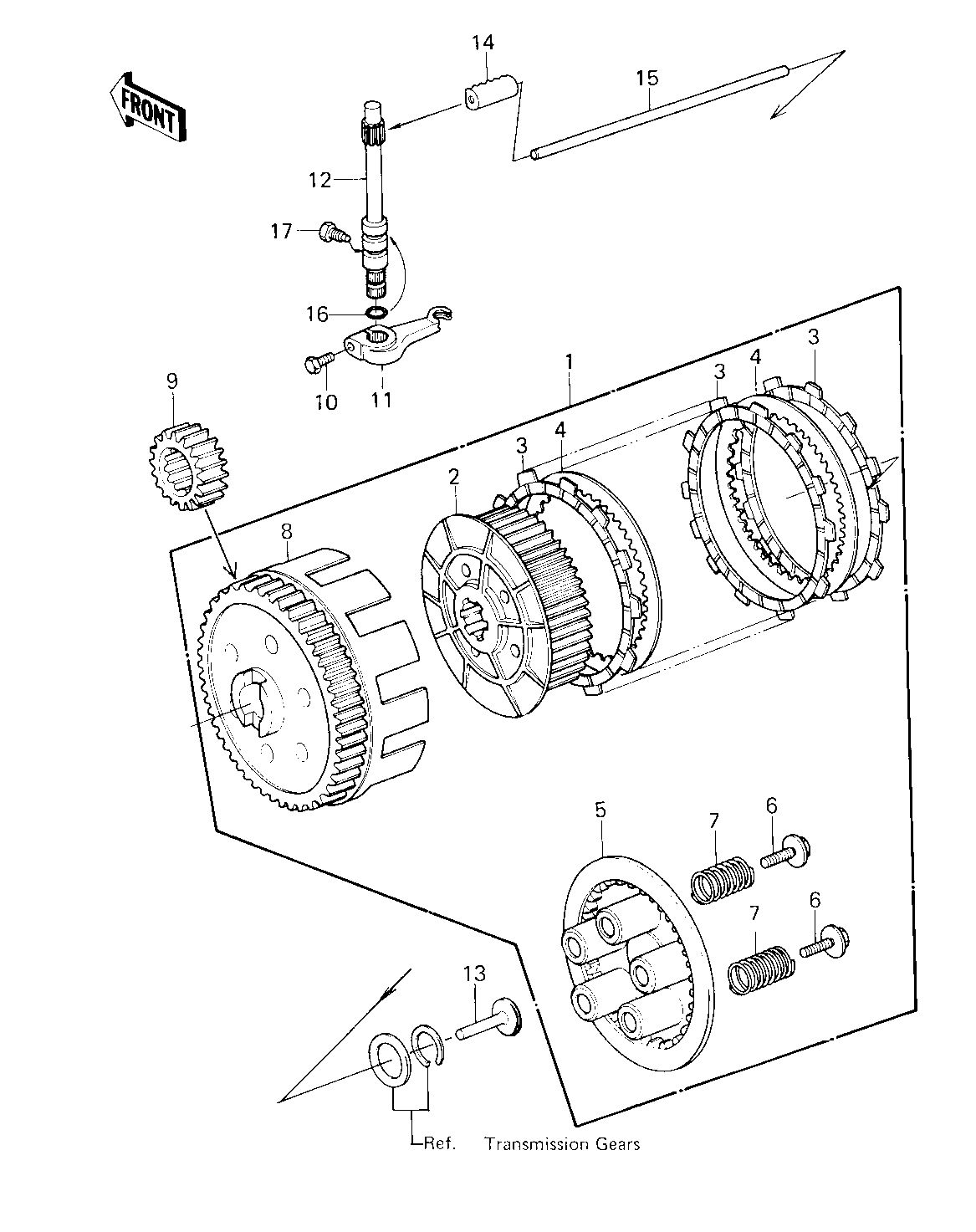

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 1 13081-1046 1
HUB,CLUTCH 2 13087-1001 1
PLATE,CLUTCH FRICTION 3 13088-1008 7
PLATE CLUTCH STEEL 4 13089-013 6
PLATE,CLUTCH OPERATNG 5 13187-1005 1
BOLT,CLUTCH SPR FITT 6 92001-1066 5
SPRING-CLUTCH 7 92081-083 5
HOUSING,CLUTCH 8 13095-1015 1
GEAR,PRIMARY 9 13121-035 1
BOLT-UPSET 10 112G0618 1
PUSHER-CLTCH SPRG PLT 11 13116-016 1
SHAFT,CLUTCH RELEASE 12 13106-006 1
PUSHER-CLTCH SPRG PLT 13 13116-016 1
ROD,CLUTCH PUSH 14 13116-1040 1
ROD,CLUTCH PUSH,LONG 15 13116-1002 1
"0" RING, 10MM 16 670B2010 1
BOLT,CLUTCH RELEASE 17 92003-130 1
